Rain Bird® U10320 76A-U-8F
Rain Bird® U10320 Fixed Spray Arc Nozzle, Full-Circle Spray, 8 ft Spray, 1.05 gpm, Plastic
- Manufacturer: Rain Bird
- Brand Name: Rain Bird®
- Part#: 76A-U-8F
- MPN: U10320
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:

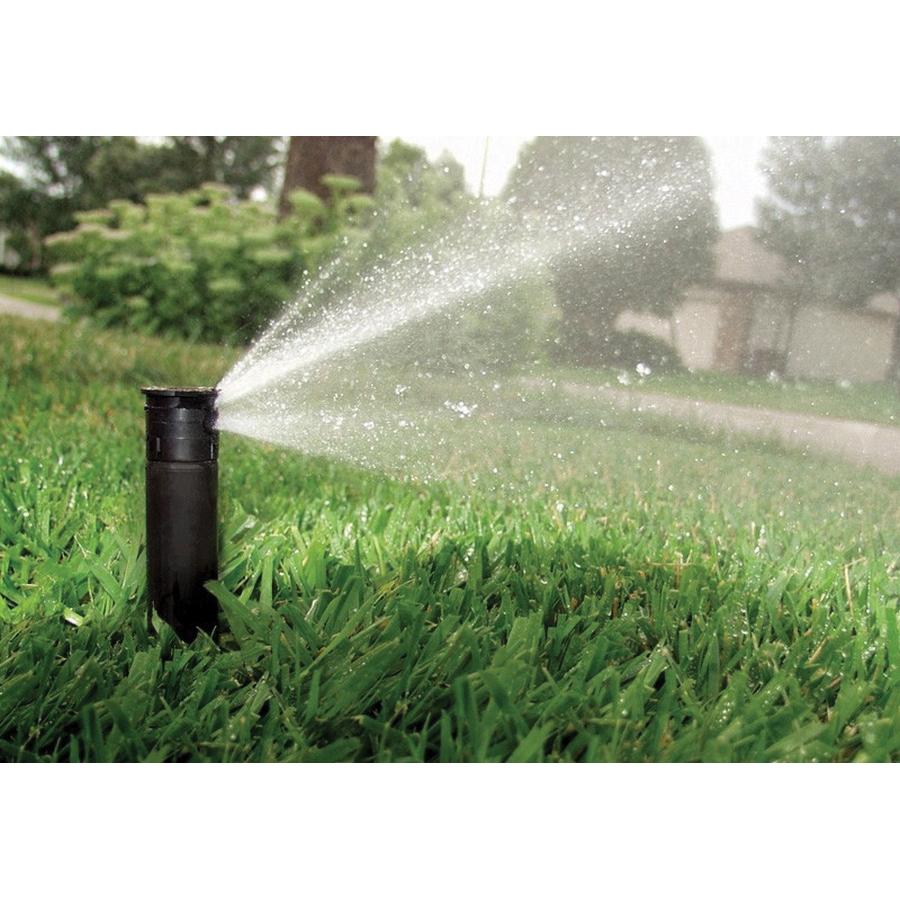

Rain Bird® U Series nozzles are uniquely designed to provide even coverage throughout the spray pattern, ensuring uniform watering, leaving you with a beautiful lawn and garden. U Series nozzles are designed to be used with all Rain Bird® spray head sprinklers. U Series nozzles are available in a variety of spray patterns to meet your lawn's diverse watering needs. U Series nozzles deliver a second stream of water close-in around the sprinkler head significantly reducing brown spots close to the spray head.
Rain Bird® Fixed Spray Arc Nozzle, Full-Circle Spray Pattern, 360 deg Spray Angle, 8 ft Spray Range, Precipitation Rate: 1.58 in/hr Square, 1.83 in/hr Triangle, 30 psi, 1.05 gpm Flow Rate, Plastic
| Flow Rate | : | 1.05 gpm |
| Material | : | Plastic |
| Precipitation Rate | : | 1.58 in/hr Square, 1.83 in/hr Triangle |
| Pressure Rating | : | 30 psi |
| Spray Angle | : | 360 deg |
| Spray Pattern | : | Full-Circle |
| Spray Range | : | 8 ft |
- 8 ft spray nozzle with full-circle spray pattern
- Additional orifice for close-in watering
- Minimizes dry brown spots around spray heads
- Low-scheduling co-efficient for efficient watering
- Matched precipitation rate between sets and matched flow (gpm, cu-m/hr and L/s) and precipitation rates with all Rain Bird® MPR nozzles
- Fine mesh screen protects bottom orifice from debris
- Stainless steel adjustment screw to adjust flow and radius
- Fits all Rain Bird® sprinklers and shrub adapters
