WATTS® 1450F SO-56A-W-1450F
  1. pin-int

WATTS® 1450F SO-56A-W-1450F

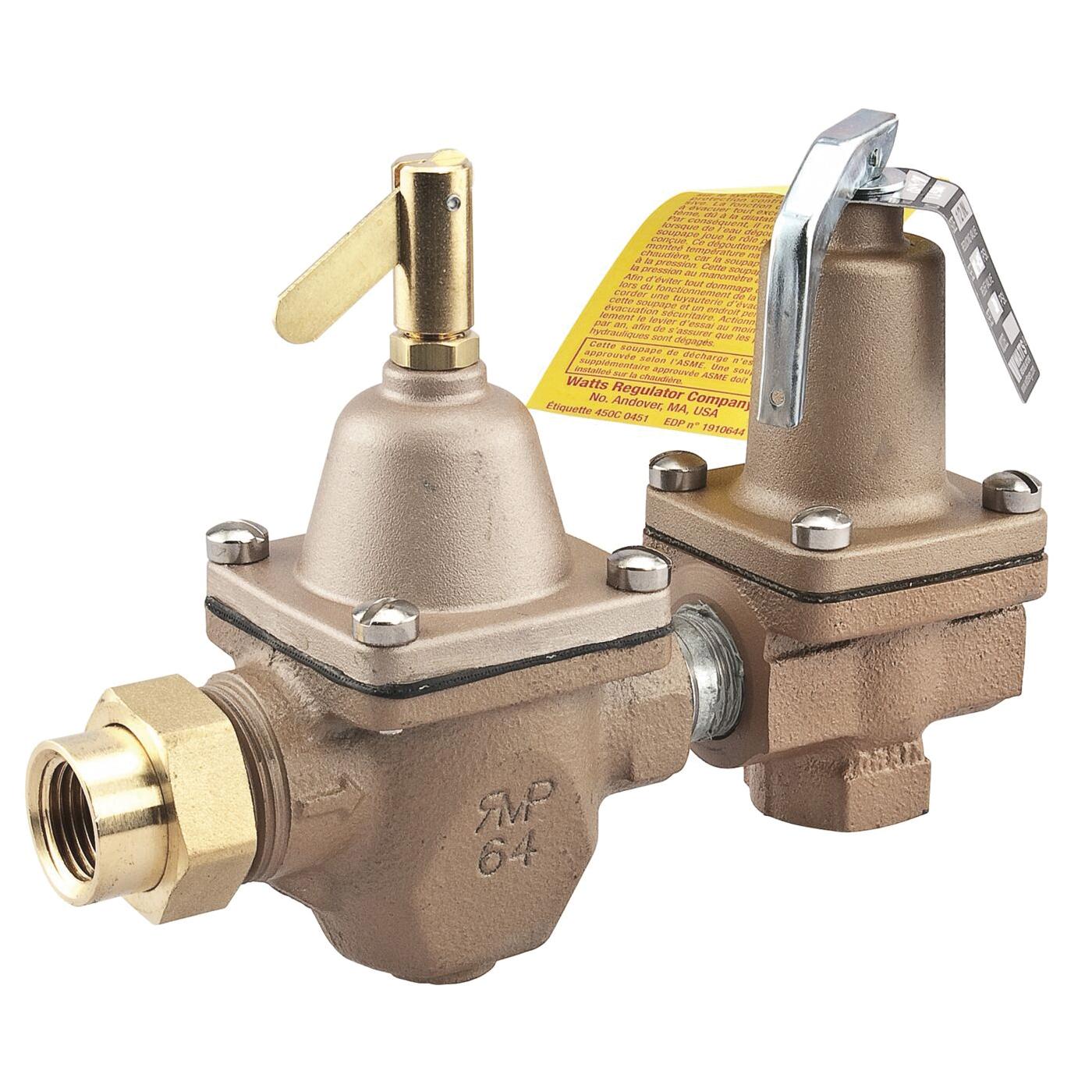

WATTS® 1450F Dual Control Pressure Regulator, 1/2 in, NPT, 100 psi, Bronze/Iron

  • Manufacturer: Watts Water Technologies
  • Brand Name: WATTS®
  • Part#: SO-56A-W-1450F
  • MPN: 1450F
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Series 1450F dual controls are for use in commercial and residential hydronic heating systems to fill the boiler and piping system with water and to maintain water pressure in the system at all times. It also provides make-up water to the system in the event of system leaks. It consists of an iron and bronze body construction with NPT threaded inlet and outlet connections, an attached iron body, diaphragm relief valve, a tight seating check valve, purge lever for manual purging and a stainless steel strainer. Series 1450F has high capacity performance and simplified servicing design. It is suitable for use in the boiler feed lines of hydronic heating systems.

WATTS® Dual Control Pressure Regulator, 1/2 in Nominal, NPT Connection, 100 psi, Bronze/Iron, 212 deg F, 6-1/2 in L x 5-5/16 in H

Connection Type      :      NPT
Dimensions      :      6-1/2 in L x 5-5/16 in H
Material      :      Bronze/Iron
Nominal Size      :      1/2 in
Pressure Rating      :      100 psi
Temperature Rating      :      212 deg F
  • For use in hydronic heating systems to fill the boiler and piping system and to maintain water pressure
  • High capacity performance and simplified servicing design
  • Provides make-up water to the system in the event of system leaks
  • NPT threaded inlet and outlet connections and union solder or union threaded connections
