WATTS® 0822653 SO-44-IBFBV4FP

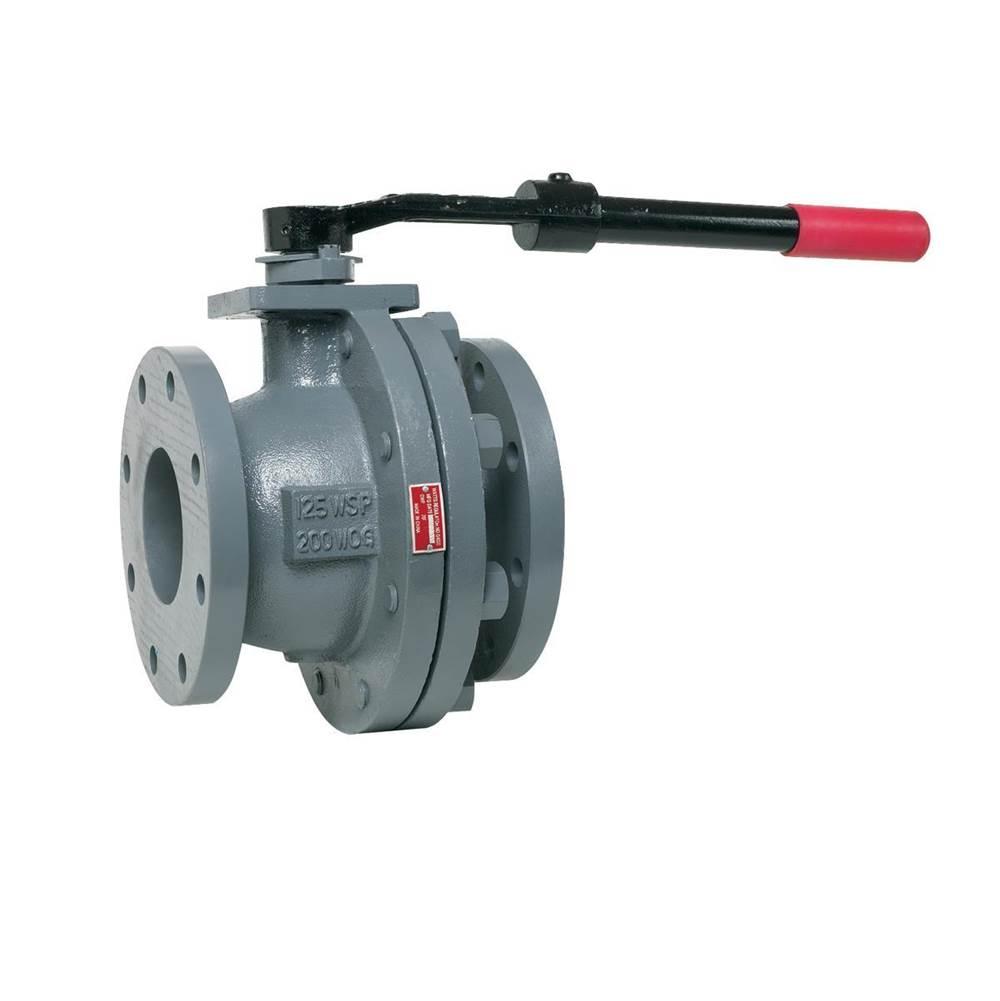

WATTS® G4000M1 Series 0822653 2-Piece Ball Valve, 4 in, Flanged, Iron, 200 psi
- Manufacturer: Watts Water Technologies
- Brand Name: WATTS®
- Part#: SO-44-IBFBV4FP
- MPN: 0822653
- UPC: 098268908862
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
This 2-Piece Full Port Cast Iron Flanged Ball Valve, 4 in Watts Model G4000M1, is used in commercial HVAC and steam applications. It features a 125 psi steam rating, stainless steel ball and stem, PTFE seat and packing, a steel-plated stop plate and a ductile iron handle. It has a quarter turn operation, positive shutoff and is ideal in replacing old cast iron gate valves.
WATTS® 2-Piece Ball Valve, G4000M1 Series, 4 in Nominal, Flanged Connection, Full Port, 200 psi, Manual Actuator, 4 in Opening, 1 Handles, Lever Gear Operator, 1200 Cv Flow Coefficient (Cv), Material Standard: ASTM A126, Iron Body, PTFE Seat, 304 Stainless Steel Stem, PTFE Packing, Ductile Iron Handle, 304 Stainless Steel Ball, 0 to 353 deg F, 9 in L
| Actuator Type | : | Manual |
| Ball Material | : | 304 Stainless Steel |
| Body Material | : | Iron |
| Connection Type | : | Flanged |
| Dimensions | : | 9 in L |
| Flow Coefficient (Cv) | : | 1200 Cv |
| Handle Material | : | Ductile Iron |
| Material Standard | : | ASTM A126 |
| Nominal Size | : | 4 in |
| Number of Handles | : | 1 |
| Opening Size | : | 4 in |
| Operator Type | : | Lever Gear |
| Packing Material | : | PTFE |
| Port Type | : | Full |
| Pressure Rating | : | 200 psi |
| Seat Material | : | PTFE |
| Series | : | G4000M1 Series |
| Stem Material | : | 304 Stainless Steel |
| Temperature Rating | : | 0 to 353 deg F |
Instruction/Installation Manual
