SOVAL™ 826-060 SO-52B-060LW

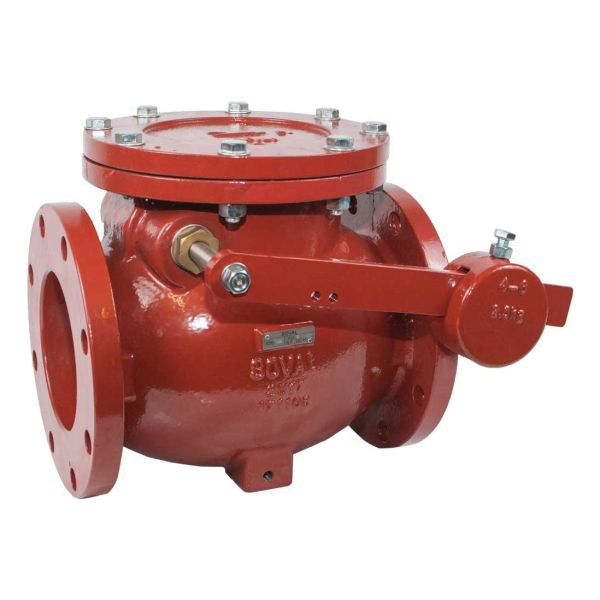

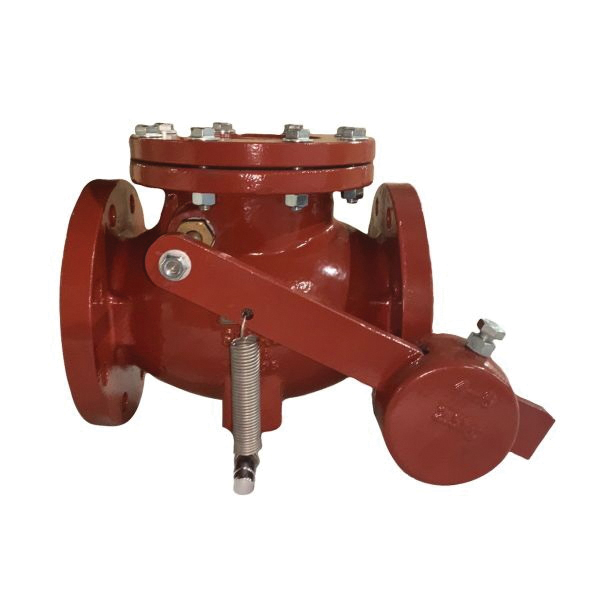

Soval™ 826 Series 826-060 Swing Check Valve With Lever, Weight Flanged Ends, 6 in, Flanged, Iron
- Manufacturer: Southern Valve & Fitting USA, Inc
- Brand Name: SOVAL™
- Part#: SO-52B-060LW
- MPN: 826-060
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
Lever and Weight Swing Check valves manufactured to AWWA C508 Standard. Resilient seated disc seals against integral bronze seat ring. Full waterway design. Available in 2" through 24" sizes, Flanged ends, ANSI B16.1, Class 125. 200 psi Water Working Pressure rating in sizes through 12", 150 psi in 14"-24" sizes. Also available in Lever & Spring configuration. Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550 Standard.
Soval™ Swing Check Valve, 826 Series, 6 in Nominal, Flanged Connection, 200 psi, 42 to 180 deg F, Water Media, Lever Actuator, Iron Body, Bronze Seat, Stainless Steel Stem, EPDM Seal, Iron Disc, Bronze/Iron/Stainless Steel Trim, EPDM Softgoods
| Actuator Type | : | Lever |
| Body Material | : | Iron |
| Connection Type | : | Flanged |
| Disc Material | : | Iron |
| Media | : | Water |
| Nominal Size | : | 6 in |
| Pressure Rating | : | 200 psi |
| Seal Material | : | EPDM |
| Seat Material | : | Bronze |
| Series | : | 826 Series |
| Softgoods Material | : | EPDM |
| Stem Material | : | Stainless Steel |
| Temperature Rating | : | 42 to 180 deg F |
| Trim Material | : | Bronze/Iron/Stainless Steel |
- Suitable for mounting in horizontal or vertical position
- Outside lever and adjustable lever weight
- Pin, Nut, Bolts Stainless Steel SS304
- Complies with AWWA C508 Standard
- ANSI B16.1, Class 125 Flanged Drilling
- Body ASTM A536 65-45-12
- Flanged Ends
- Working Temperature 42F - 180F
- Pressure Rating: 200 PSI
- Size: 2"-12" (14"-24" special order)
