KLEIN TOOLS® CL445 83-KT-CL445
KLEIN TOOLS® CL445 HVAC Clamp Meter, 600 - 750 VAC/VDC, 600 A, 60 MOhm, 1-1/4 in Jaw, 60 kHz
- Manufacturer: Klein Tools, Inc
- Brand Name: KLEIN TOOLS®
- Part#: 83-KT-CL445
- MPN: CL445
- UPC: 092644693786
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
KLEIN TOOLS® HVAC Clamp Meter, 600 - 750 VAC/VDC, 600 A, 60 MOhm Resistance, 1-1/4 in Jaw, 6000, 60 kHz, 6000 uF, 148 to 1832 deg F, ABS, 9.24 in L x 3.77 in W x 1.59 in H
| Amperage Rating | : | 600 A |
| Capacitance | : | 6000 uF |
| Counts | : | 6000 |
| Dimensions | : | 9.24 in L x 3.77 in W x 1.59 in H |
| Frequency Rating | : | 60 kHz |
| Jaw Capacity | : | 1-1/4 in |
| Material | : | ABS |
| Resistance | : | 60 MOhm |
| Temperature Rating | : | 148 to 1832 deg F |
| Voltage Rating | : | 600 - 750 VAC/VDC |

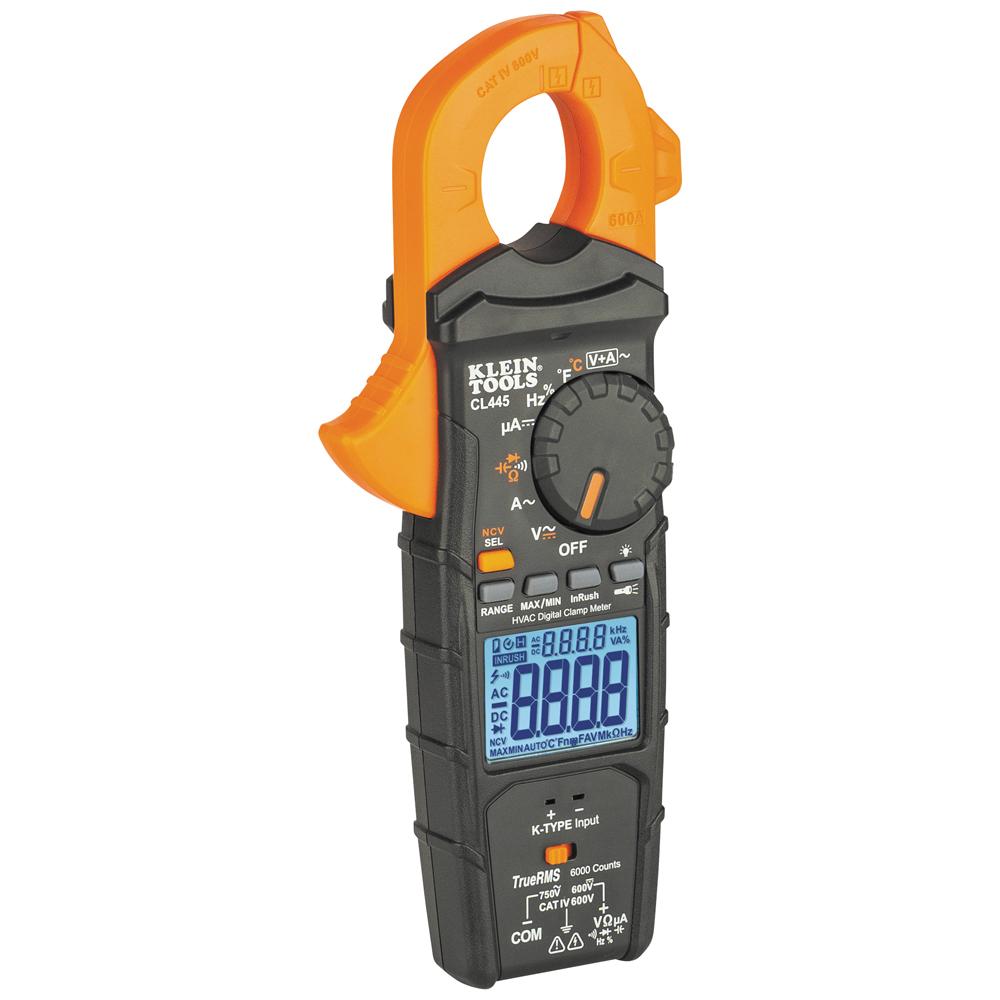

- CL445 HVAC Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter
- Digital clamp measures 600.0 A AC current and inrush current

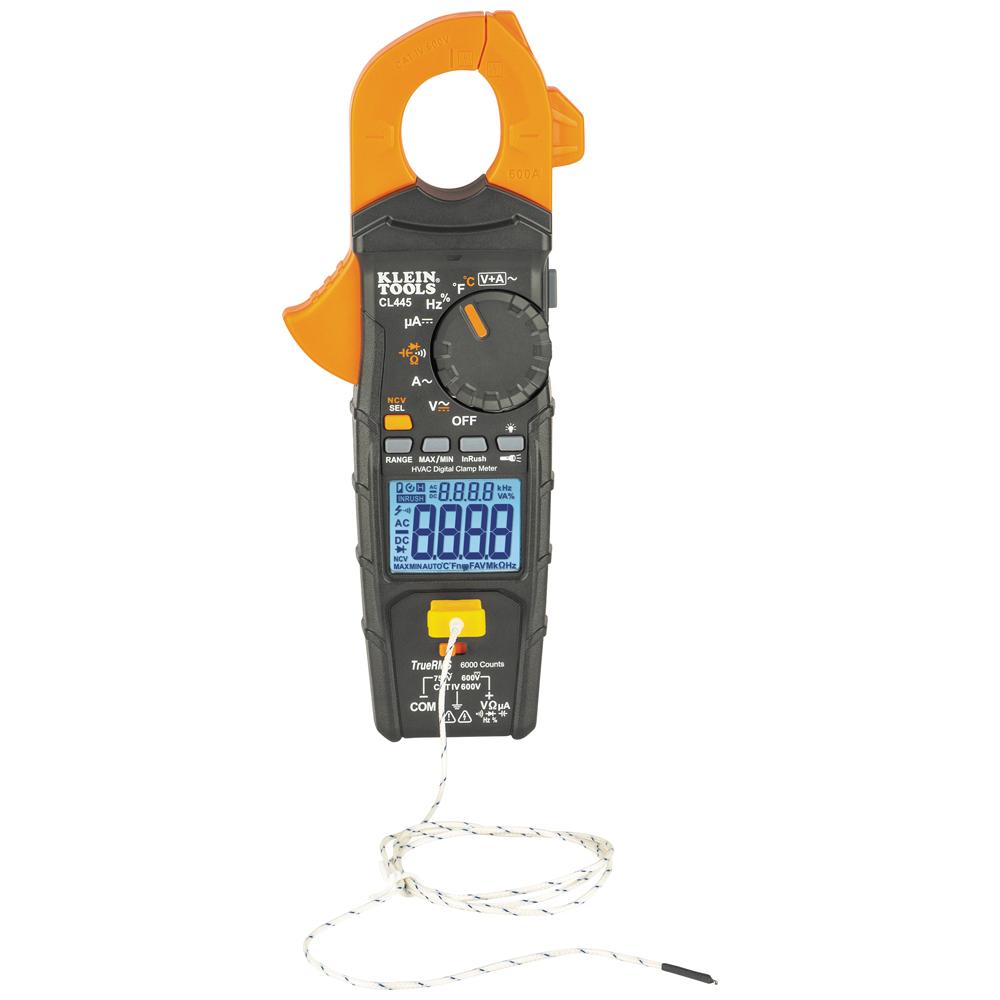

- K-Type thermocouple port for measuring temperature from -328 to 2462 Degrees Fahrenheit (-200 to 1400 Degrees Celsius)
- Detect AC current with non-contact voltage tester integrated into the clamp jaw
- Backlit LCD with dual V + A function allows simultaneous viewing of voltage and current measurements
- Dedicated mode for capturing DC micro amp and inrush current
- CAT IV 600V, CAT III 750V, Class 2, Double insulation safety rating

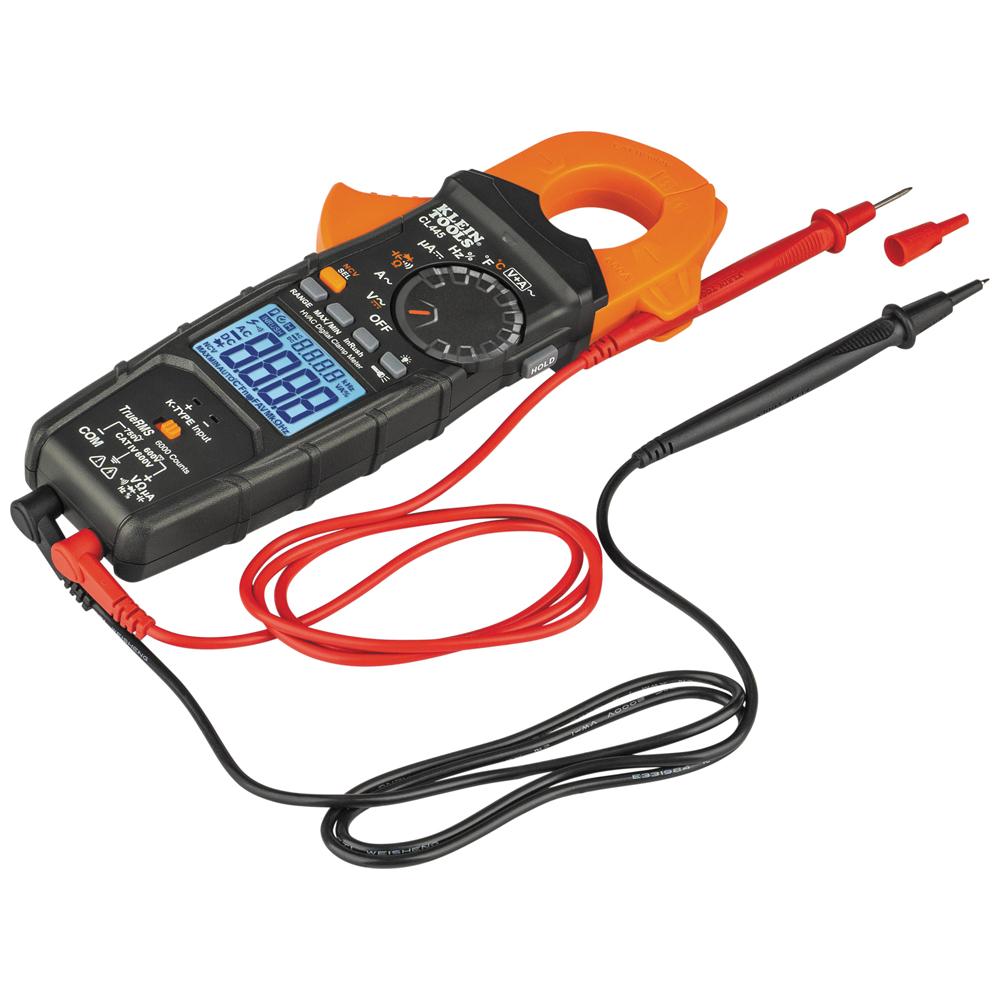

- Includes right-angle input test leads, push-on alligator clips, K-type thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
- Can be used with Magnetic Hanger (Cat. No. 69417, sold separately) for hands free operation
