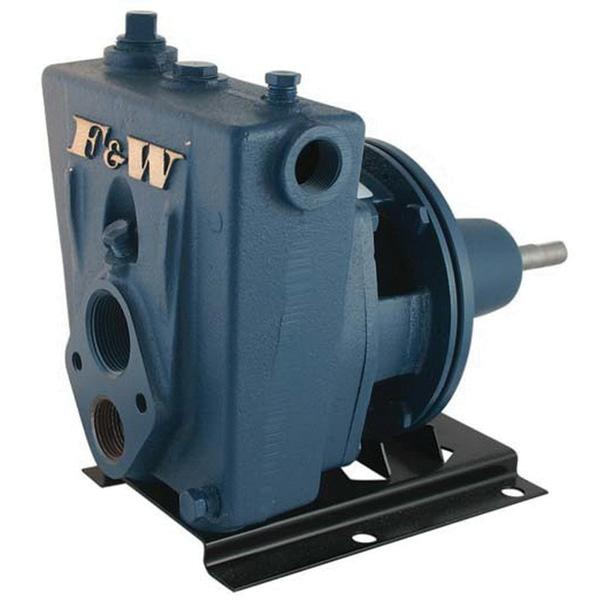

F&W® CPJ15S 57-FWCPJ15S

Whether operating as a shallow well or deep well pump, count on F&W® versatile, powerful jet pumps to deliver more water at full city pressures. These pumps provide higher single-stage capacities and pressures; depths to 150 ft, capacities to 1800 gph and as much as 90 lb pressure. The CPJ models feature the famous Flint and Walling "Service Plus" motor, available with NEMA J construction. The F&W® 56 frame, double-ball bearing motor offers the ultimate in performance and dependability. Designed for years of trouble-free operation and simple, swift, on-site servicing, the CPJ features unique interchangeability of replacement parts to keep inventories at a minimum.

F&W® Jet Pump, 1-1/4 in Suction, 1 in Discharge, 115/230 V, 1-1/2 hp, 1 ph Phase, 60 Hz, 3450 rpm, Maximum Feet of Head: 25 ft, 150 psi Working Pressure, Brass Impeller

• High-tensile gray iron pump bodies Large water cavities provide fast, easy priming
• Buna-N Quadraseal reusable provides a positive seal between the pump case and motor bracket
• Molded diffusers corrosion and abrasion-resistant, provide precision alignment with the impeller for maximum performance, the snap-in diffuser design uses no bolts and is held in place by compression
• Impellers precision balanced, these impellers are ultra smooth for high-efficiency
• Pipe plugs and priming plugs coated with a non-hardening, non-toxic, non-corrosive material which allows for easy removal even after the pump has been in-service for years
• Standard shaft seal silicon carbide face is self-adjusting throughout the seal life, one size fits all models
• Automatic overload senses both start and run winding heat to ensure complete winding protection
• NEMA J motors, all motors are dual voltage, capacitor start with automatic thermal overload protection

• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/FW_CPH05R_Specification_Sheet.pdf
