Milwaukee® 3404-22 83-MIL-3404-22

Our M12 FUEL™ 1/2 in hammer drill is the most powerful subcompact hammer drill, the most compact in size and provides the fastest speed under load. The POWERSTATE™ brushless motor delivers the most power for the capability to perform the widest variety of applications at high speed for unrivaled subcompact performance. At only 6 in length, this portable drill is the shortest solution in class offering most access into tight spaces. Our REDLINK PLUS™ Intelligence delivers top of the line thermal performance to give our users the fastest speed under load in order to drill and drive faster than any other subcompact drill. Using our M12 REDLITHIUM™ 2.0 Ah compact and 4.0 Ah extended capacity battery packs will deliver more work per charge and more work over the life of the pack than competitive batteries. Our all metal 1/2 in chuck and all metal gear case deliver best-in-class durability. The mechanical clutch delivers consistent torque for driving fasteners. Our M12 FUEL™ 1/2 in hammer drill/driver is part of the M12 system which is fully compatible with over 125 solutions.

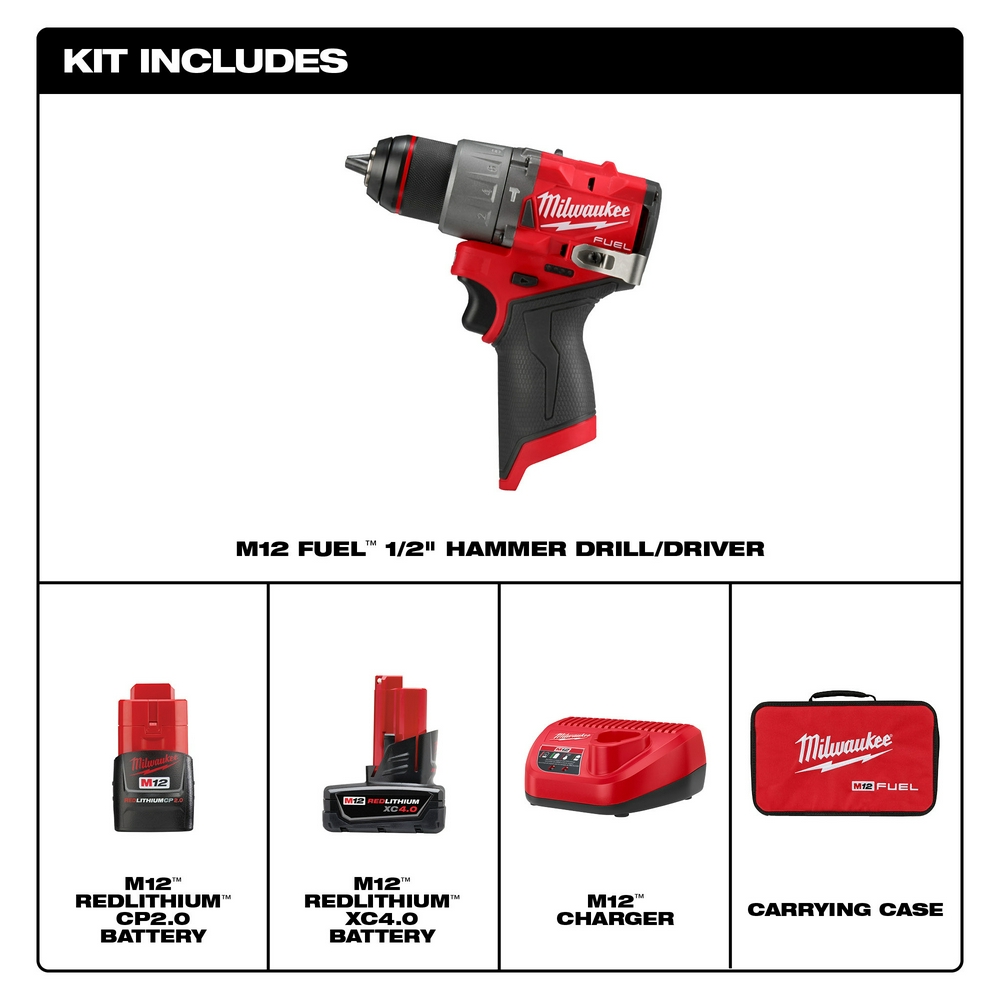

Milwaukee® M12 FUEL™ Hammer Drill/Driver Kit, Tool/Kit: Kit, 400 in-lb Torque, Chuck Size: 1/2 in, Chuck Type: Keyless, Chuck Material: Metal, Blows per Minute: 0 to 25500 bpm, No Load Speed: 0 to 1550 rpm, 12 V, Lithium-Ion Battery, 2 Ah, 4 Ah Battery, 6 in Overall Length, 2-1/4 in Overall Width, 7 in Overall Depth, Additional Information: Brushless Motor INCLUDES - 1/2" HAMMER DRILL/DRIVER (3404-20) - (1) M12 XC4.0 & (1) M12 CP2.0 BATTERY - (1) M12 BATTERY CHARGER

• Fastest drilling and driving applications under load
• 1/2 in all metal chuck with carbide teeth for maximum durability, grip and bit retention
• Unmatched performance with the most runtime in class with the XC 5.0 Ah batteries
• All metal belt clip for portability
• LED light for better visibility in low light situations
• Only 6.9 in length for access into tight spaces and reduced fatigue
• POWERSTATE™ brushless motor delivers the power to complete the widest range of applications of any drill driver
• AUTOSTOP™ feature to protect from over rotation in a bind-up for enhanced safety, equipped with a dedicated autostop light on foot of tool to indicate a protection event
• Mechanical clutch for consistency in driving a wide range of fasteners
• All metal gear case for ultimate durability

• Owners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/Milwaukee_3404_22_Owners_User_Manual.pdf
• Service Manual https://assets.unilogcorp.com/267/ITEM/DOC/Milwaukee_3404_22_Service_Manual.pdf
