Intermatic® PE723P SO-73A-PE723P
  1. pin-int

Intermatic® PE723P SO-73A-PE723P

Intermatic® PE723P Wi-Fi Timer, 120-277 V, 50/60 Hz, 7 W Power Supply, 256 -Program, Type 3R Enclosure

  • Manufacturer: Intermatic
  • Brand Name: Intermatic®
  • Part#: SO-73A-PE723P
  • MPN: PE723P
  • UPC: 078275154032
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

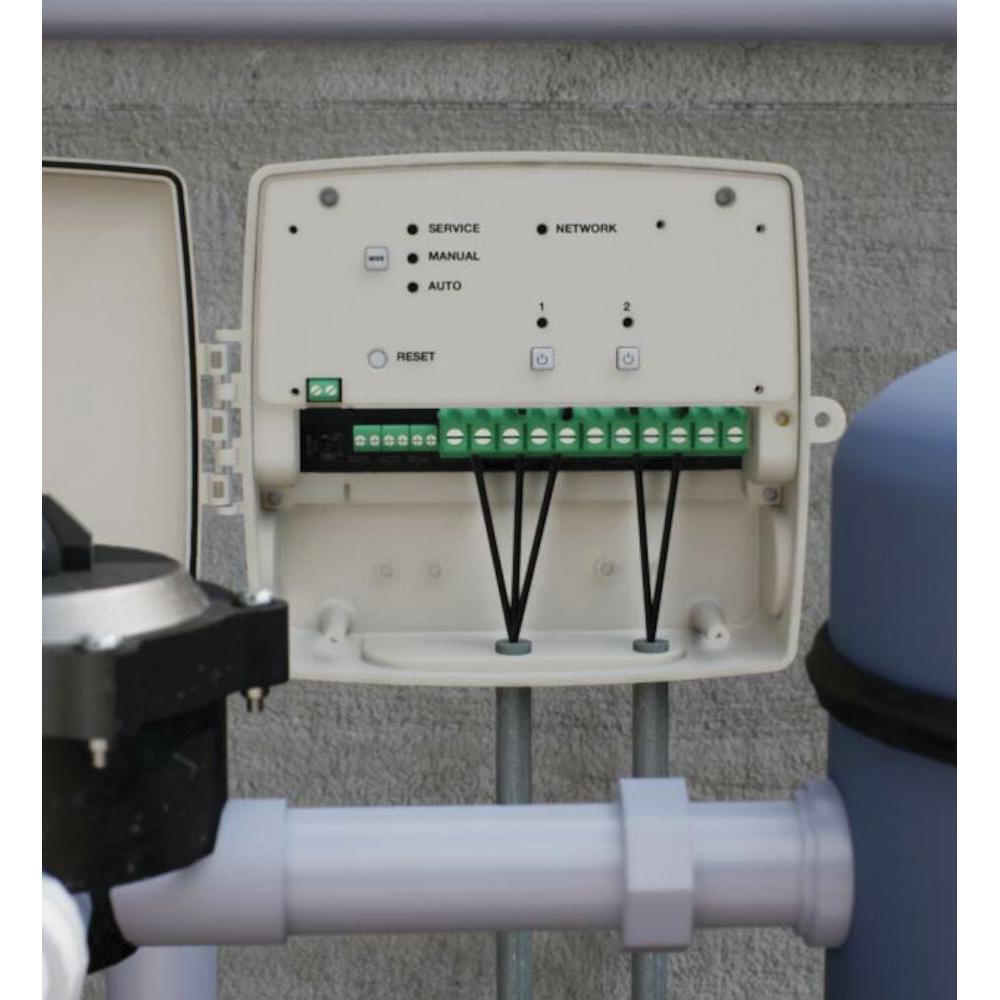

This general purpose 24 hr, 7 day timer control is capable of automatically switching loads according to a preset daily schedule. Simply wire to various downstream hard-wired pool equipment and turn these loads on and off via schedule or manually through the Intermatic® connect mobile app or voice command.

Intermatic® Wi-Fi Timer, Series: PE Series, CR2032 Lithium Battery, 120-277 V, 50/60 Hz, 7 W, 256-Programs, Type 3R Enclosure, -40 to 158 deg F Operating, Polycarbonate Housing, Beige, 7.5 in H x 8.87 in W x 3 in D, Additional Information: 2-Number of Circuit, 24 hr 7-day Operation Mode, 3xSPST Switch Type, Automatic Daylight Savings Adjustment CONTROLLER

Additional Information      :      2-Number of Circuit, 24 hr 7-day Operation Mode, 3xSPST Switch Type, Automatic Daylight Savings Adjustment
Color      :      Beige
Dimensions      :      7.5 in H x 8.87 in W x 3 in D
Enclosure Type      :      Type 3R
Housing Material      :      Polycarbonate
Number of Programs      :      256
Operating Temperature      :      -40 to 158 deg F
Power Source      :      CR2032 Lithium Battery
Power Supply      :      120-277 V, 50/60 Hz, 7 W
SPECIAL_ORDER_ITEM      :      Y
Series      :      PE Series
Special Order Item      :      Y
  • Schedule automatic on/off operation of connected pool equipment and make changes anywhere to suit your scheduled needs
  • Controls pool pumps, pool and spa lighting, landscape lighting, pool sanitation and other auxiliary equipment, up to 96 on/off events per day
  • Simple retrofit - knockout locations and sizes designed equivalently to intermatic legacy time switch enclosures
  • Remote access - once connected to a Wi-Fi network, the PE700 Series can be accessed via the intermatic connect app from any location
  • Override inputs - remotely extend or override active schedules at any time with a switch, photocontrol, presence sensor or via the intermatic connect app
  • Auto voltage - automatic input voltage selection from 120 VAC to 277 VAC, 50/60 Hz
  • Configurable relay outputs for multiple switching options (SPDT or DPDT)
  • Service mode - with optional timed stop or timed run feature, locks external users out from controlling connected loads remotely
  • LED status indicators - provides visual cue to indicate the devices current state and connection status
  • Non-volatile EEPROM memory protects programing indefinitely
