Intermatic® T101P3 73A-T101P

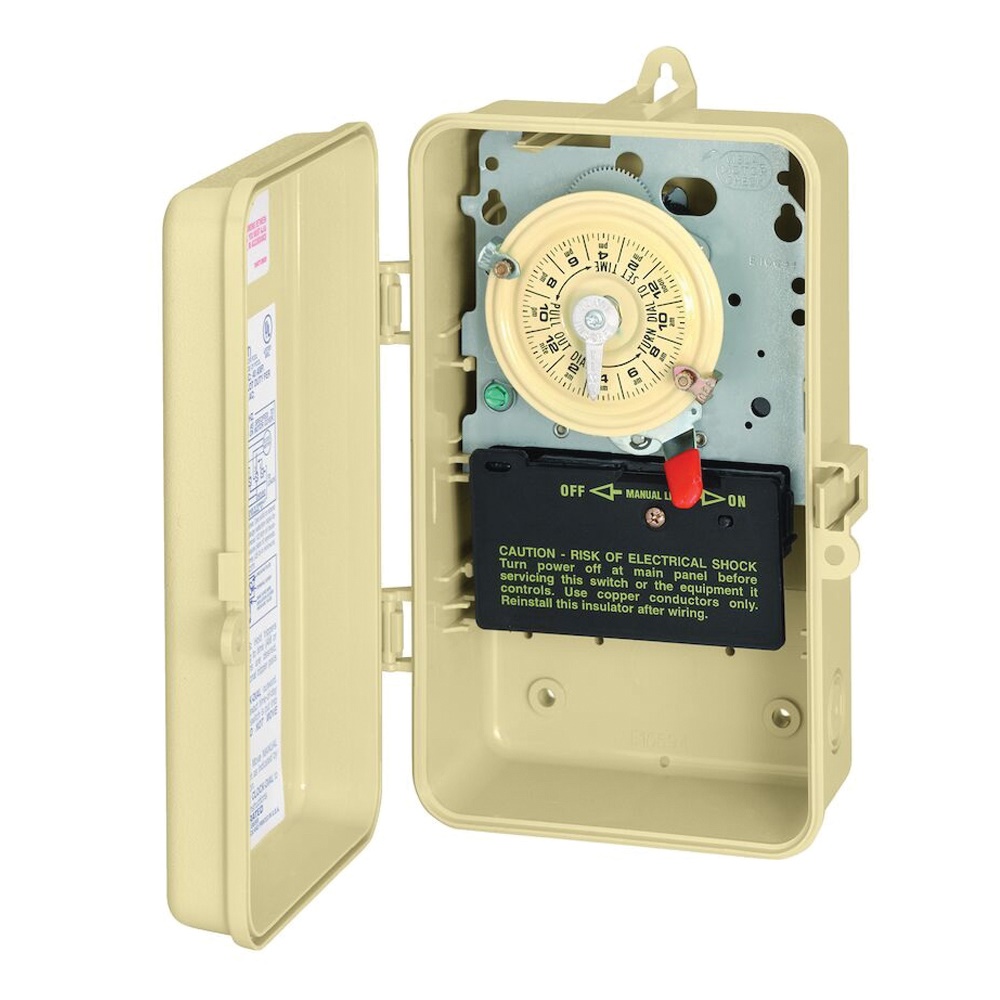

Intermatic® T101P3 Heavy-Duty Mechanical Time Switch, 120 VAC, 40 A, 60 Hz, 24 hr Timing, SPST

  • Manufacturer: Intermatic
  • Brand Name: Intermatic®
  • Part#: 73A-T101P
  • MPN: T101P3
  • UPC: 078275026285
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Intermatic® Heavy-Duty Mechanical Time Switch, 120 VAC, 40 A, 60 Hz, 3 W, Contact Configuration: SPST, 24 hr Timing, On/Off Ratio: 12 per day, 1000 VA at 120 to 240 VAC, 60 Hz Pilot Duty, Teeter Terminal Connection, Bracket Mounting, Teeter Terminal, NEMA 3R Enclosure, Plastic Enclosure Type, -40 to 130 deg F, 10 in H x 6-1/2 in W x 4 in D, Additional Information: 1 Circuit

Additional Information      :      1 Circuit
Amperage Rating      :      40 A
Connection Type      :      Teeter Terminal
Contact Configuration      :      SPST
Dimensions      :      10 in H x 6-1/2 in W x 4 in D
Enclosure Type Material      :      Plastic
Enclosure Type      :      NEMA 3R
Frequency Rating      :      60 Hz
Mounting Type      :      Bracket
On/Off Ratio      :      12 per day
Pilot Duty Rating      :      1000 VA at 120 to 240 VAC, 60 Hz
Power Rating      :      3 W
Special Order Item      :      N
Temperature Rating      :      -40 to 130 deg F
Terminal Type      :      Teeter
Timing Range      :      24 hr
Voltage Rating      :      120 VAC
  • Highest motor load ratings in the industry
  • 12 On/Off operations per day
  • Teeter-type terminals for multiple load connections
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Intermatic_T101P3_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/rawJjiW6p0A
