NDS® DS-097 86G-DS097

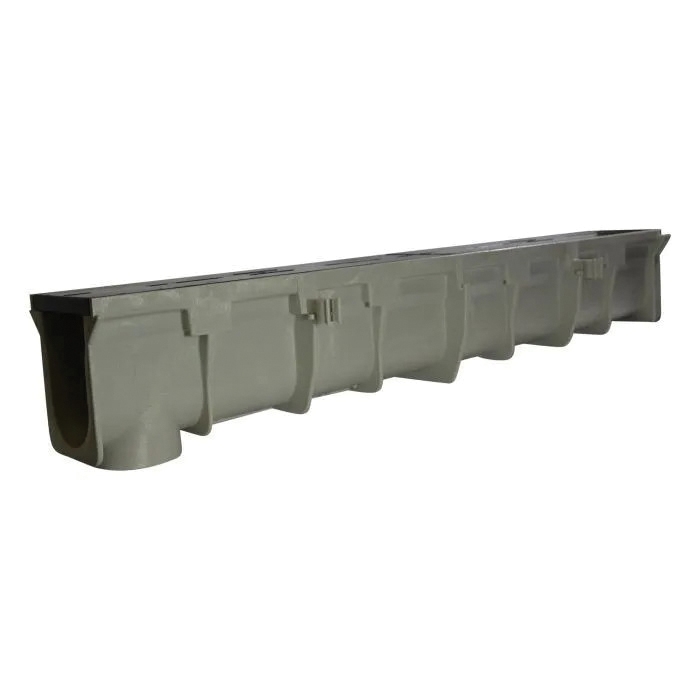

NDS® Dura Slope™ DS-097 Channel Drain, 48 in L, 6 in W, 6.01 to 6.35 in D, HDPE Drain

  • Manufacturer: NORMA Group
  • Brand Name: NDS®
  • Part#: 86G-DS097
  • MPN: DS-097
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

The NDS® Dura slope trench drain system consists of neutral and pre-sloped sections of trench drain. Manufactured from HDPE, this trench drain offers a durable alternative to concrete channel that will save time and reduce cost at installation. The Dura slope trench drain system consists of lightweight, modular sections for easier handling and installation and reduced freight to the site. A built-in slope of 0.7% allows optimal flow rates to be maintained system wide; neutral sections are also available. The NDS® Dura slope features a ProFit locking system that locks the grate to the integral frame and supports the trench drain during installation. It also features DuraLoc, an integral joint lock which prevents joint movement during installation, no extra clamps or screws needed. It includes interlocking tongue and groove joints and bottom outlet on each channel section and should be used in non-residential applications.

NDS® Dura Slope™ Channel Drain, 48 in Length, 6 in Width, 6.01 to 6.35 in Depth, HDPE Drain, Light Gray Drain, Additional Information: 117 gpm Flow Rate, 7.706 in Minimum Outer Depth, 7.786 in Maximum Outer Depth, 0.65 in Bottom Outlet Depth, 10.185 in Re-Bar Lock Width

Additional Information      :      117 gpm Flow Rate, 7.706 in Minimum Outer Depth, 7.786 in Maximum Outer Depth, 0.65 in Bottom Outlet Depth, 10.185 in Re-Bar Lock Width
Depth      :      6.01 to 6.35 in
Drain Color      :      Light Gray
Drain Material      :      HDPE
Length      :      48 in
Special Order Item      :      N
Width      :      6 in
  • Interlocking tongue and groove joints for secure alignment and easy installation
  • DuraLoc integral joint lock to prevent joint movement
  • No extra screws or clamps needed at installation
  • Blank grate inserts
