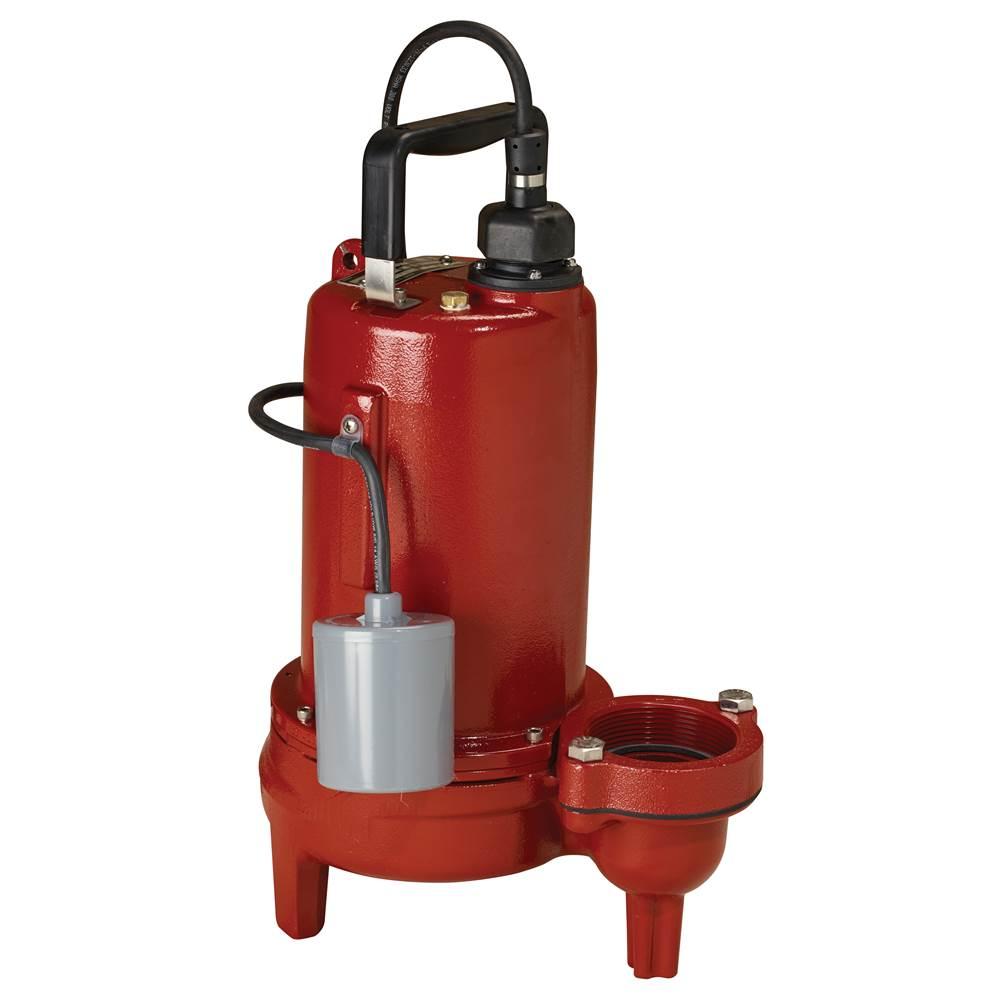

Liberty Pumps® LE71M2-2 60A-L-LE71M2-2
Liberty Pumps® LE70 Series LE71M2-2 Sewage Pump System, 115 V, 12 A, 3/4 hp, 158 gpm
- Manufacturer: Liberty Pumps
- Brand Name: Liberty Pumps®
- Part#: 60A-L-LE71M2-2
- MPN: LE71M2-2
- UPC: 671812101782
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
Available at All Branches
-
Price:
Liberty's LE70-series is a 3/4 hp sewage pump with 2 in solids-handling capability. Constructed of heavy cast iron with a tough epoxy powder coat finish, stainless steel fasteners and rotor shaft, the LE70 is designed for durability. Its Quick-connect cord design allows for easy interchange of power cords in 10, 25 and 35 ft lengths.
Liberty Pumps® Sewage Pump System, LE70 Series, 115 V, 12 A, HP Rating: 3/4 hp, 1725 rpm Speed, 158 gpm Flow Rate, 1 ph, 2 in Discharge, 25 ft Cord Length, Maximum Feet of Head: 29 ft, 140 deg F
| Amperage Rating | : | 12 A |
| Cord Length | : | 25 ft |
| Discharge Size | : | 2 in |
| Flow Rate | : | 158 gpm |
| HP Rating | : | 3/4 hp |
| Maximum Feet of Head | : | 29 ft |
| Phase | : | 1 ph |
| Series | : | LE70 Series |
| Speed Rating | : | 1725 rpm |
| Temperature Rating | : | 140 deg F |
| Voltage Rating | : | 115 V |
- Rugged two vane, semi-open cast iron impellers
- Cast iron housings and volute with all stainless and brass fasteners
- 416 stainless steel rotor shaft
- Oil filled, hermetically sealed motors
- Built-in thermal protection on single phase models
- Permanently lubricated upper and lower ball bearings
- Unitized shaft seals
- Adjustable pumping range
- Quick-connect 10 ft standard power cord allows replacement of cord in seconds without breaking seals to motor
Instruction/Installation Manual
