Rain Bird® B81100 76A-8005
  1. pin-int

Rain Bird® B81100 76A-8005

Rain Bird® B81100 Rotor, 39 to 81 ft Operating, 1 in, NPT

  • Manufacturer: Rain Bird
  • Brand Name: Rain Bird®
  • Part#: 76A-8005
  • MPN: B81100
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Rain Bird® Rotor, 39 to 81 ft Operating, Part-Circle Spray Pattern, 25 deg Trajectory Angle, 50 to 100 psi, 3.8 to 36.3 gpm Flow Rate, Precipitation Rate: 0.48 to 1.23 in/hr, 5 in Pop-Up Height, 1 in Connection, NPT Connection, 10-1/8 in Overall Height

Connection Size      :      1 in
Connection Type      :      NPT
Flow Rate      :      3.8 to 36.3 gpm
Operating Range      :      39 to 81 ft
Overall Height      :      10-1/8 in
Pop-Up Height      :      5 in
Precipitation Rate      :      0.48 to 1.23 in/hr
Pressure Rating      :      50 to 100 psi
Special Order Item      :      N
Spray Pattern      :      Part-Circle
Trajectory Angle      :      25 deg
  • Memory arc returns the rotor to its original arc setting
  • Non-strippable drive mechanism prevents damage from vandals
  • Brass reinforcing shaft of the nozzle turret to riser withstands vandal kick
  • Full and part-circle operation in one unit to reduce inventory requirements
  • Easy, wet, dry arc adjustment with slotted screwdriver through top of rotor from 50 to 330 deg part-circle, 360 deg non-reversing full-circle
  • Left and right side trips adjustable for ease of installation without turning the case and loosening the pipe connection
  • Seal-A-Matic™ (SAM) check device or riser to help prevent low-head drainage
  • Water lubricated gear-drive
  • Rain Curtain nozzles for optimal distribution and close-in watering resulting in superior uniformity

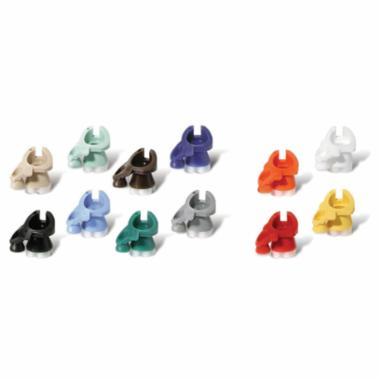

  • Nozzles are interchangeable from the front with no special tools
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Rain_Bird_B81100_Catalog.pdf
  • pdfOwners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/Rain_Bird_B81100_Owners_User_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Rain_Bird_B81100_Specification_Sheet.pdf
