Spears® S1720C20 SO-53-S1720C-020
  1. pin-int

Spears® S1720C20 SO-53-S1720C-020

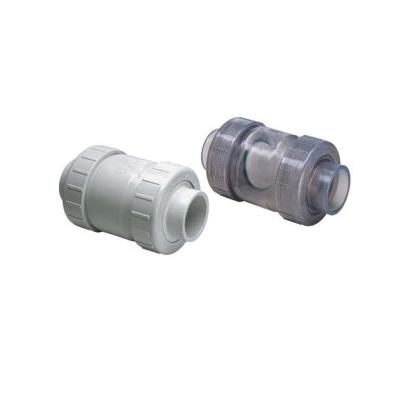

Spears® S1720C20 Utility Spring Check Valve, 2 in, Socket, PVC

  • Manufacturer: Spears Manufacturing
  • Brand Name: Spears®
  • Part#: SO-53-S1720C-020
  • MPN: S1720C20
  • UPC: 054211479209
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Spears® true union utility swing check and spring-assisted true union utility spring check valves offer a compact, high-performance check valve for landscape and irrigation, pool and spa, aquaculture, OEM 1 and many general-purpose applications. True Union design allows for easy in line replacement of maintenance-free sealed units. These valves feature long-life EPDM elastomer seats with weighted disc for full-flow with minimal restriction and positive shut-off. spring-assisted spring check model incorporates a positive pressure spring to assist in valve closing without slamming. Produced from PVC White or PVC clear material with socket, threaded or SR threaded end connectors in IPS® Sizes 1/2 in through 4 in.

Spears® Utility Spring Check Valve, 2 in Nominal, Socket Connection, 150 psi, 73 deg F, Water Media, 5-19/32 in Inlet to Outlet Length, 4-5/16 in Opening, PVC Body, EPDM Seat, EPDM Trim, EPDM Softgoods, Clear, 8-5/8 in L x 4-1/4 in H

Body Material      :      PVC
Color      :      Clear
Connection Type      :      Socket
Dimensions      :      8-5/8 in L x 4-1/4 in H
Inlet to Outlet Length      :      5-19/32 in
Media      :      Water
Nominal Size      :      2 in
Opening Size      :      4-5/16 in
Pressure Rating      :      150 psi
SPECIAL_ORDER_ITEM      :      Y
Seat Material      :      EPDM
Softgoods Material      :      EPDM
Special Order Item      :      Y
Temperature Rating      :      73 deg F
Trim Material      :      EPDM
  • Chemical and corrosion-resistant PVC white or high visibility PVC clear construction
  • No metal parts on swing check - stainless steel spring on spring check
  • True union-style for easy in line replacement of sealed unit
  • Strong buttress threaded union nuts
  • Engineered for maximum flow, quick response and positive shut-off
  • Long-life, high-grade EPDM seat with weighted disc
  • Spring-assisted spring check model option for positive closing
  • Silicone-free assembly
