Intermatic® ET100C SO-73A-ET100C

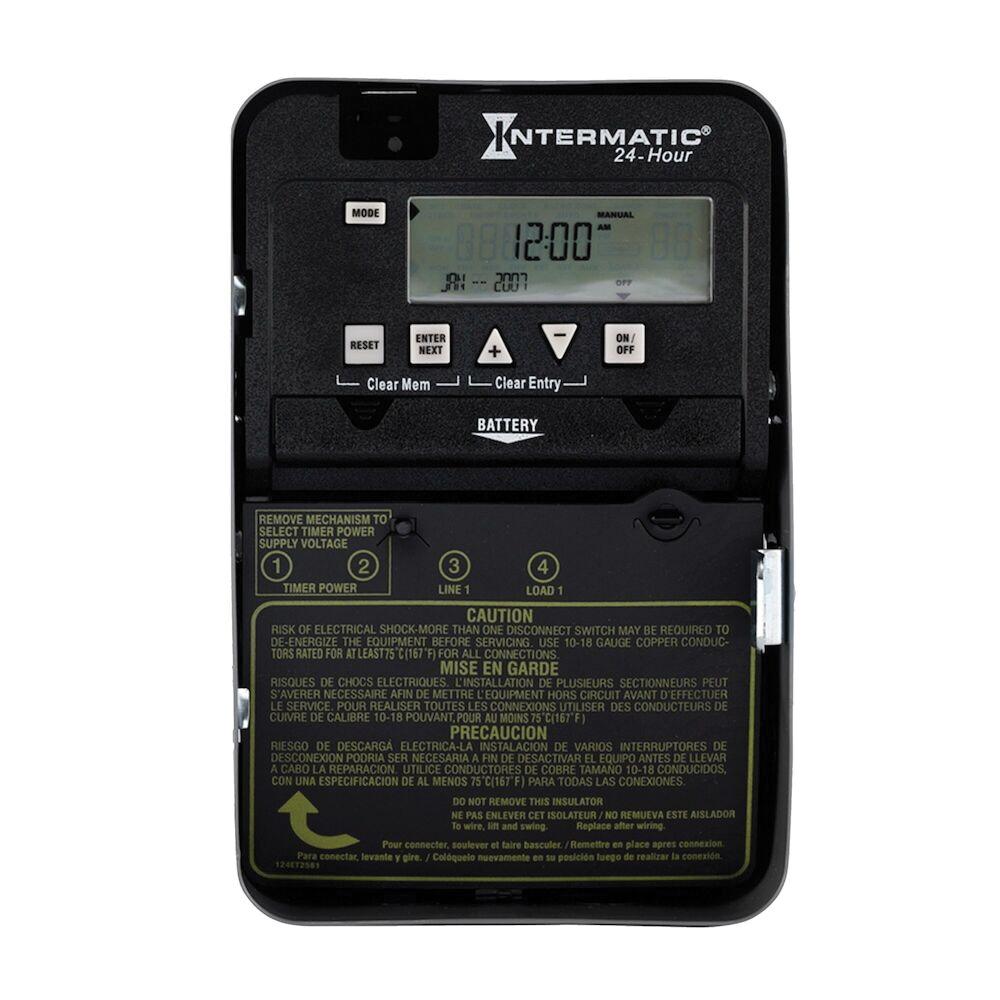

Intermatic® ET100C 1-Circuit Electronic Control, 120 to 277 VAC, 1 hp
- Manufacturer: Intermatic
- Brand Name: Intermatic®
- Part#: SO-73A-ET100C
- MPN: ET100C
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
This Series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, up to 28 events total and automatic daylight saving time corrections without the need of user interaction. They come in standard 24 hr, 7-day and 7-day astronomic versions.
Intermatic® 1-Circuit Electronic Control, 120 to 277 VAC, 50/60 Hz, 1 hp, 24 hr Timing, 14 to 8 AWG Wire, 28 Pulse Events, 2 s Pulse, AAA Battery, NEMA 1 Enclosure, -40 to 104 deg F, Metal Enclosure, 200 mm Height, 130.2 mm Width, 87.3 mm Depth, Additional Information: SPST Switch Type
| Additional Information | : | SPST Switch Type |
| Battery Type | : | AAA |
| Depth | : | 87.3 mm |
| Enclosure Material | : | Metal |
| Enclosure Type | : | NEMA 1 |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 1 hp |
| Height | : | 200 mm |
| Number of Pulse Events | : | 28 |
| Pulse Duration | : | 2 s |
| SPECIAL_ORDER_ITEM | : | Y |
| Special Order Item | : | Y |
| Temperature Rating | : | -40 to 104 deg F |
| Timing Range | : | 24 hr |
| Voltage Rating | : | 120 to 277 VAC |
| Width | : | 130.2 mm |
| Wire Size | : | 14 to 8 AWG |
- Selector switch to determine input voltage between 120 to 277 VAC
- Up to 28 events total
- To the minute accuracy
- Temporary override or permanent manual override
- Automatic daylight saving time adjustment
- Astronomic models enable dusk-to-dawn scheduling
