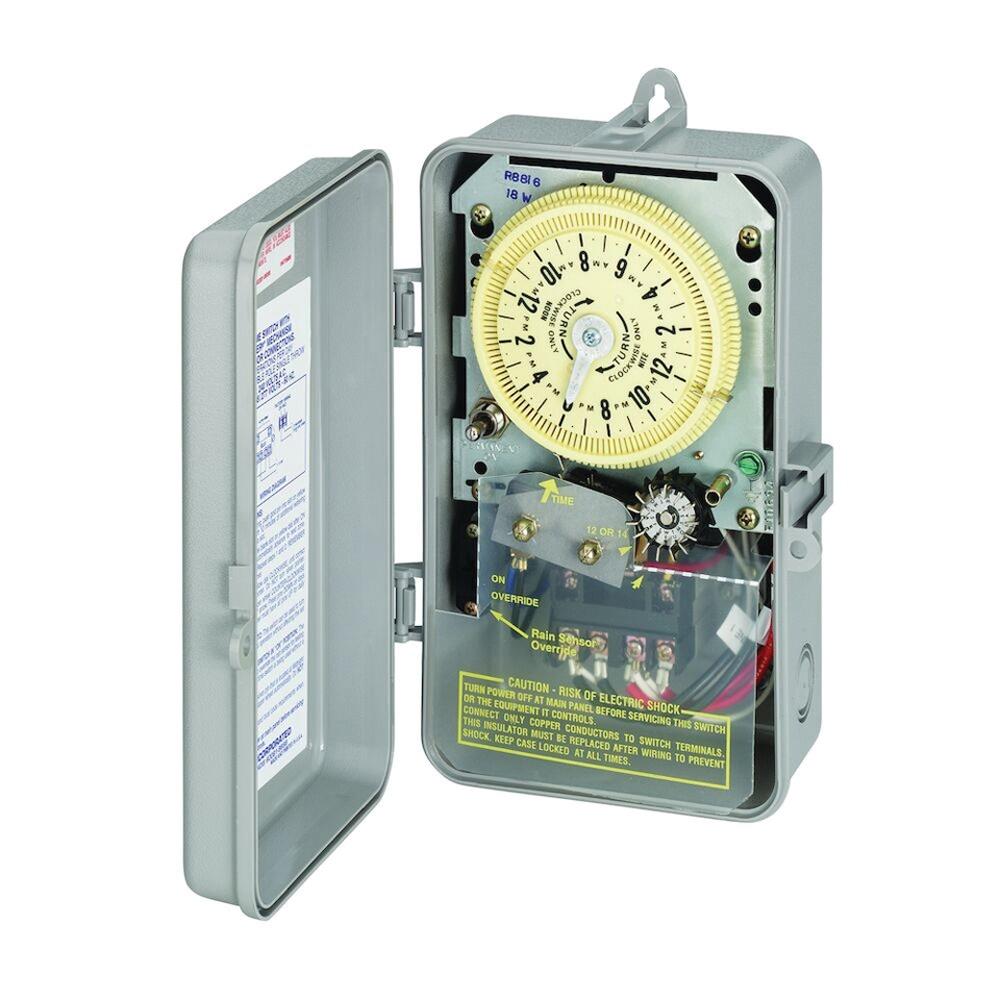

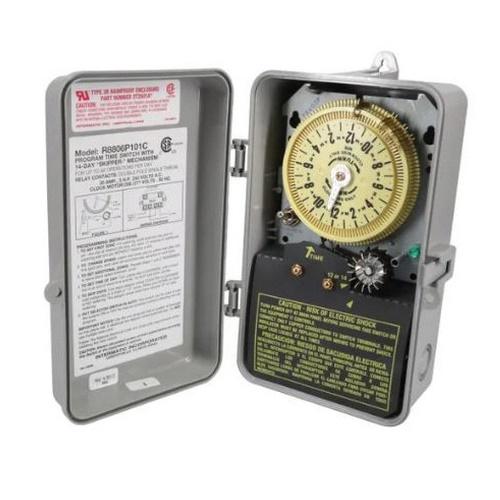

Intermatic® R8806P101C Sprinkler/Irrigation Time Switch With 14-Day Skipper, DPST Switch, 20 hr 45 min Max Cycle Time

  • Manufacturer: Intermatic
  • Brand Name: Intermatic®
  • Part#: 73A-8806
  • MPN: R8806P101C
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

These irrigation timers are designed to permit one to 44 on operations every 24 hr and provide watering increments down to 12 min or up to 20 hr and 45 min to ensure proper watering increments. These models also allow for biweekly scheduling with the convenient 14 days skipper for maximum water conservation and odd/even day compliance.

Intermatic® Sprinkler/Irrigation Time Switch With 14-Day Skipper, 30 A, 60 Hz, Maximum On/Off Cycles: 44, 20 hr 45 min Maximum Cycle Time, DPST Switch, Analog Display, -40 to 130 deg F Operating Temperature, Plastic Housing, 6-1/2 in Width, 10 in Height, 4 in Depth, Additional Information: 240 V Voltage, 3 hp Rating, NEMA 3R Enclosure

Additional Information      :      240 V Voltage, 3 hp Rating, NEMA 3R Enclosure
Amperage Rating      :      30 A
Depth      :      4 in
Display Type      :      Analog
Frequency Rating      :      60 Hz
Height      :      10 in
Housing Material      :      Plastic
Maximum Cycle Time      :      20 hr 45 min
Maximum On/Off Cycles      :      44
Operating Temperature      :      -40 to 130 deg F
Special Order Item      :      N
Switch Type      :      DPST
Width      :      6-1/2 in
  • Up to 44 on/off settings per day
  • Water metering increments from 12 min to 20 hr and 45 min
  • 14 days skipper enables irrigation to be omitted on selected day(s)
  • Allows for alternate day scheduling
  • ON/OFF/auto switch enables shutdown during rainy days and extended watering during dry periods without disturbing the cycle set on dial
  • Type 3R plastic indoor/outdoor enclosure
