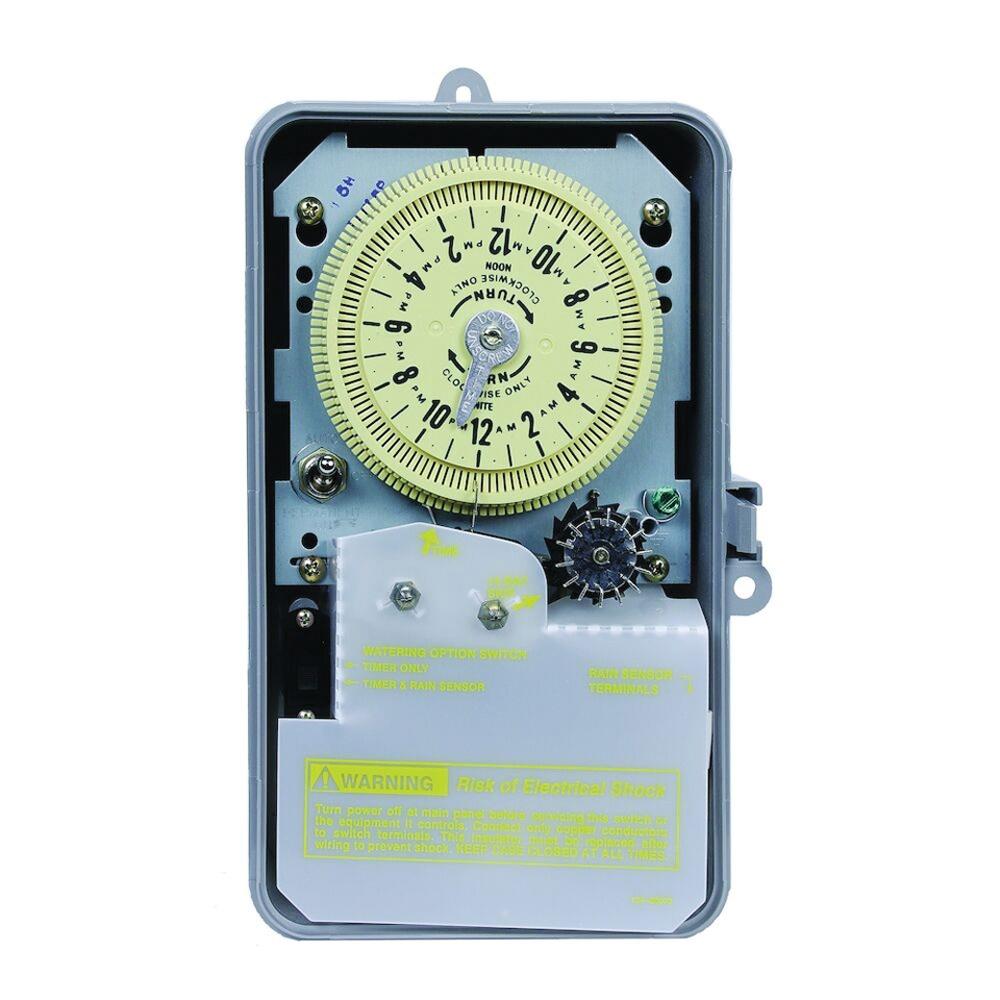

Intermatic® R8816P101C 73A-8816
Intermatic® R8816P101C Sprinkler/Irrigation Time Switch With 14-Day Skipper, Non-Programmable Programmability
- Manufacturer: Intermatic
- Brand Name: Intermatic®
- Part#: 73A-8816
- MPN: R8816P101C
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
These irrigation timers are designed to permit one to 44 on operations every 24 hr and provide watering increments down to 12 min or up to 20 hr and 45 min to ensure proper watering increments. These models also allow for biweekly scheduling with the convenient 14 days skipper for maximum water conservation and odd/even day compliance.
Intermatic® Sprinkler/Irrigation Time Switch With 14-Day Skipper, 30 A, 60 Hz, Non-Programmable Programmability, Maximum On/Off Cycles: 44, 20 hr 45 min Maximum Cycle Time, DPST Switch, Analog Display, -40 to 130 deg F Operating Temperature, Plastic Housing, 6-1/2 in Width, 10 in Height, 4 in Depth, Additional Information: 240 V Voltage, 3 hp Rating, NEMA 3R Enclosure
| Additional Information | : | 240 V Voltage, 3 hp Rating, NEMA 3R Enclosure |
| Amperage Rating | : | 30 A |
| Depth | : | 4 in |
| Display Type | : | Analog |
| Frequency Rating | : | 60 Hz |
| Height | : | 10 in |
| Housing Material | : | Plastic |
| Maximum Cycle Time | : | 20 hr 45 min |
| Maximum On/Off Cycles | : | 44 |
| Operating Temperature | : | -40 to 130 deg F |
| Programmability | : | Non-Programmable |
| Special Order Item | : | N |
| Switch Type | : | DPST |
| Width | : | 6-1/2 in |
- Up to 44 on/off settings per day
- Water metering increments from 12 min to 20 hr and 45 min
- 14 days skipper enables irrigation to be omitted on selected day(s)
- Allows for alternate day scheduling
- ON/OFF/auto switch enables shutdown during rainy days and extended watering during dry periods without disturbing the cycle set on dial
- Type 3R plastic indoor/outdoor enclosure
Instruction/Installation Manual
Video Link 1
