Rain Bird® X14603 76A-LCRBY100D

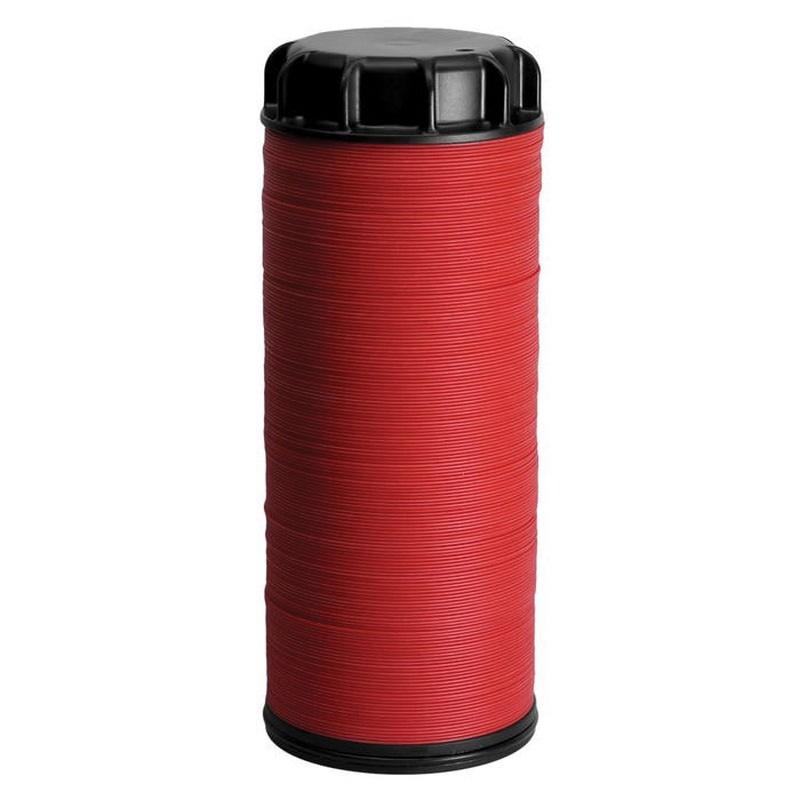

Rain Bird® X14603 Large Capacity Disc Filter, 1 in Inlet Connection, 26 gpm, 120 Mesh, 130 um Filter

  • Manufacturer: Rain Bird
  • Brand Name: Rain Bird®
  • Part#: 76A-LCRBY100D
  • MPN: X14603
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach Available at All Branches

These filters provide large filtration capacity for residential, commercial and municipal drip applications. This means less cleaning and lower maintenance costs. The filter body and cover are made of high impact thermal plastic, rated to withstand water up to 140 deg F (60 deg C) and pressures up to 116 psi (8 bar). With flow rates ranging from 33 to 110 gpm, these filters are perfect for larger drip irrigation zones.

Rain Bird® Large Capacity Disc Filter, 1 in Inlet Connection, 26 gpm Flow Rate, 120 Mesh, 130 um Filter, Additional Information: NPT Connection, 28 sq-in Filtration Area 26GPM

Additional Information      :      NPT Connection, 28 sq-in Filtration Area
Filter Rating      :      130 um
Flow Rate      :      26 gpm
Inlet Connection Size      :      1 in
Mesh Size      :      120
Special Order Item      :      N
  • Up to 10X increase in filtration area
  • Larger filtration area equals less frequent cleaning, which lowers overall maintenance costs
  • Disc filtration is ideal for dirty water supplies due to increased filtration area
  • Particularly effective for water with high organic content
  • Recommended Installation - Install after a valve or shut-off point, where the filter will not be under constant pressure
