Rain Bird® Y66050 76A-5012PLPCS

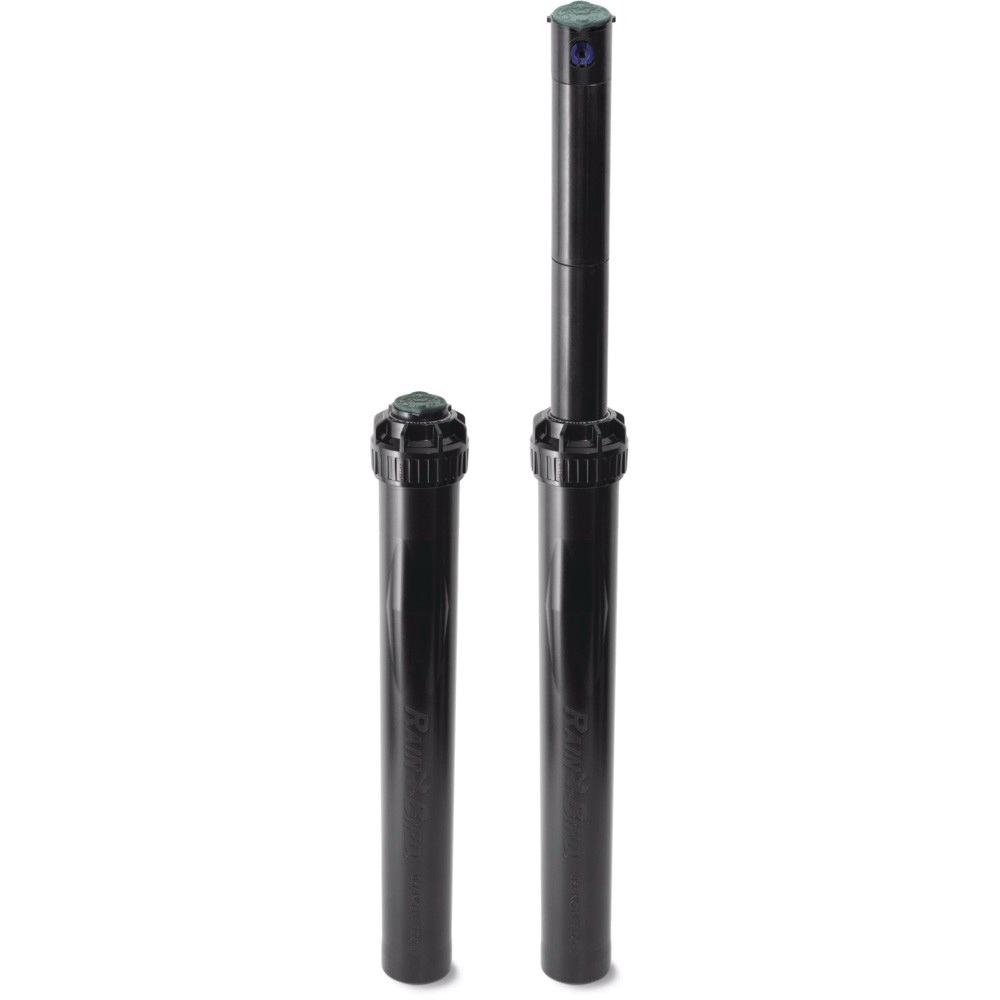

Rain Bird® 5000+ Series Y66050 Pop-Up Rotor, 25 to 50 ft Operating, 3/4 in, FNPT

  • Manufacturer: Rain Bird
  • Brand Name: Rain Bird®
  • Part#: 76A-5012PLPCS
  • MPN: Y66050
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

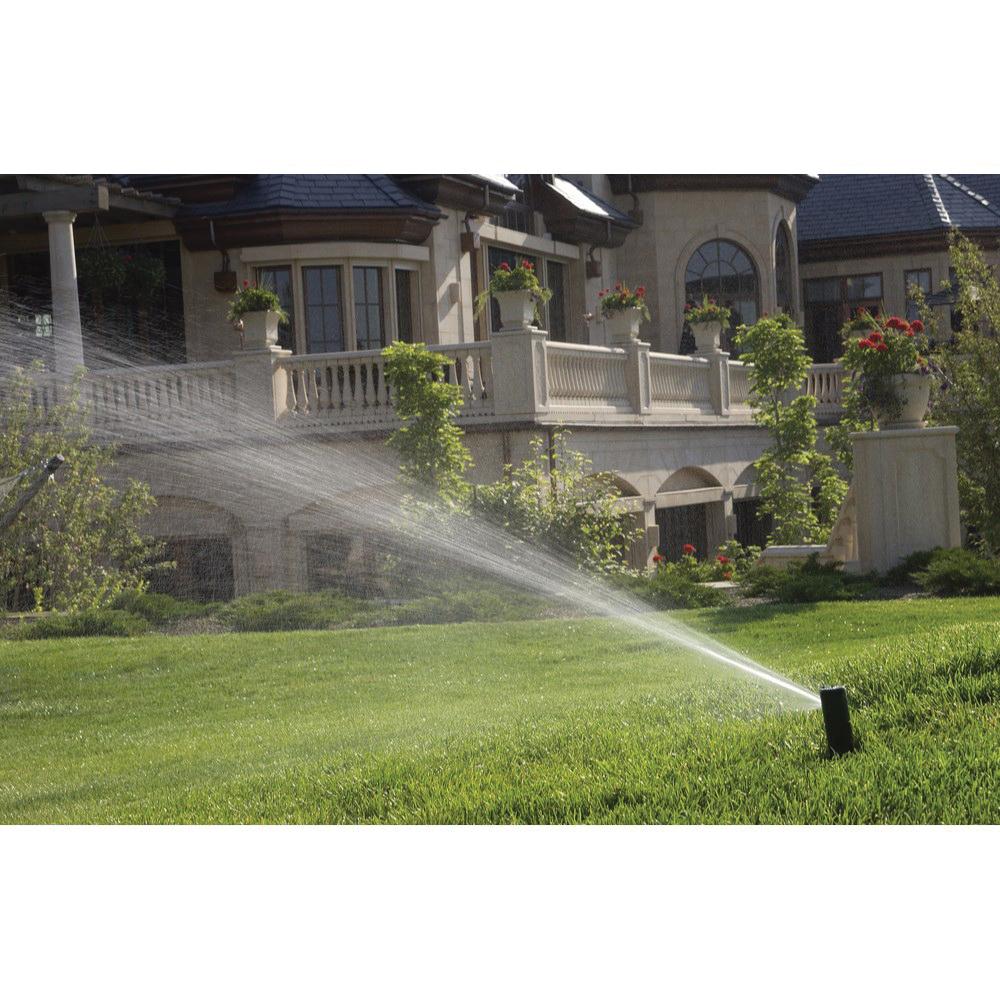

Offering unmatched performance from 25 to 50 ft, Rain Bird 5000 series rotors are ideal for residential, light commercial and commercial applications. By combining the industry's only triple blade wiper seal with unrivaled rain curtain nozzles, 5000 series rotors give you even coverage and enduring reliability that the best contractors demand.

Rain Bird® Pop-Up Rotor, 5000+ Series, 25 to 50 ft Operating, Adjustable Part-Circle Spray Pattern, 25 deg Trajectory Angle, 45 psi, 0.73 to 9.63 gpm Flow Rate, Precipitation Rate: 0.2 to 1.5 in/hr, 12 in Pop-Up Height, 3/4 in Connection, FNPT Connection, 1-5/8 in Overall Diameter, 16-7/8 in Overall Height

Connection Size      :      3/4 in
Connection Type      :      FNPT
Flow Rate      :      0.73 to 9.63 gpm
Operating Range      :      25 to 50 ft
Overall Diameter      :      1-5/8 in
Overall Height      :      16-7/8 in
Pop-Up Height      :      12 in
Precipitation Rate      :      0.2 to 1.5 in/hr
Pressure Rating      :      45 psi
Series      :      5000+ Series
Special Order Item      :      N
Spray Pattern      :      Adjustable Part-Circle
Trajectory Angle      :      25 deg
  • Thicker rubber cover
  • Self-flushing arc adjustment port as the riser stem pops-up and retracts a jet of water cleans out the arc adjustment slot
  • Self-flushing tapered stem design and integrated triple blade multi-function wiper seal protect internals from debris
  • Positive riser stem retraction
  • Heavy-duty case

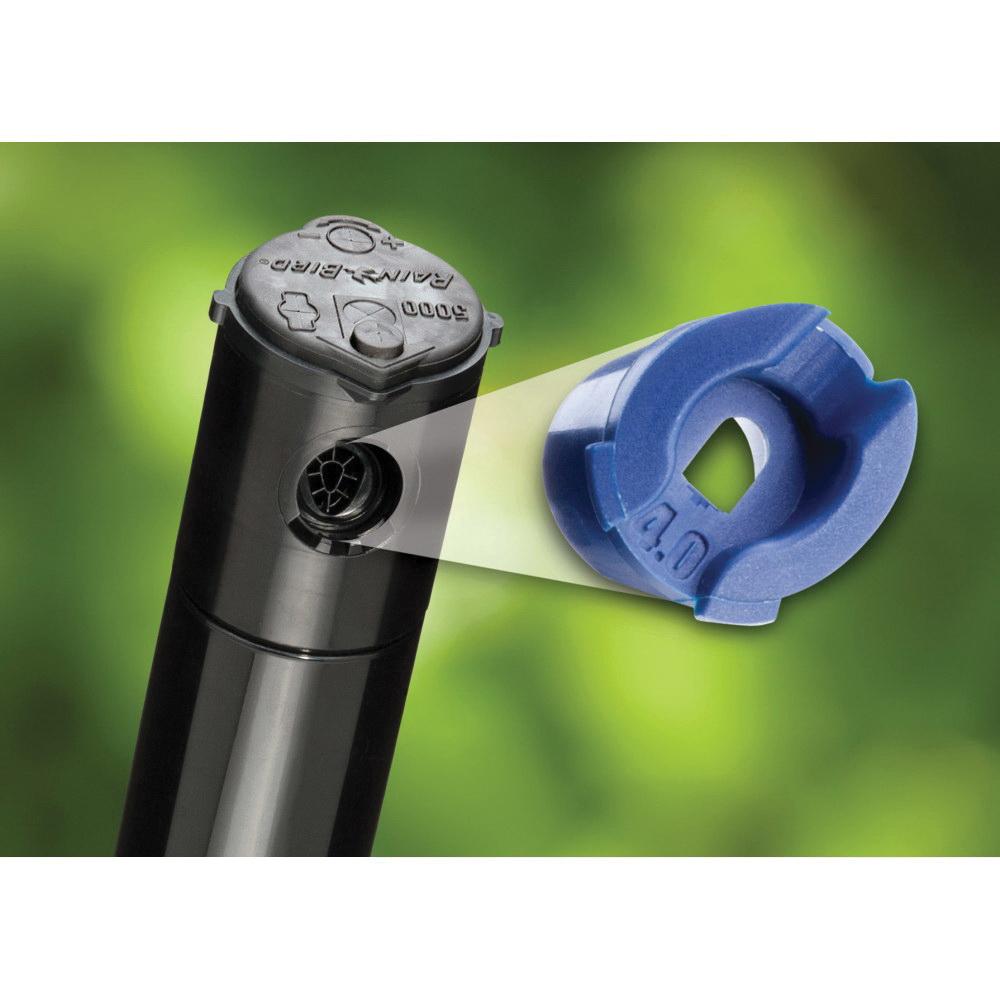

  • Tree of nozzles including 8 rain curtain (25 deg trajectory) and 4 low-angle (10 deg trajectory) provides 25 to 50 ft distance of throw
  • Slip clutch mechanism for quick adjustment on installation
  • Seal-A-Matic™ (SAM) check valve holds up to 7 ft of elevation change to prevent puddling and erosion caused by low-head drainage
  • In-stem pressure regulator (PRS) reduces operating pressure to 45 psi for optimal nozzle performance
