Century® B128 58A-B128

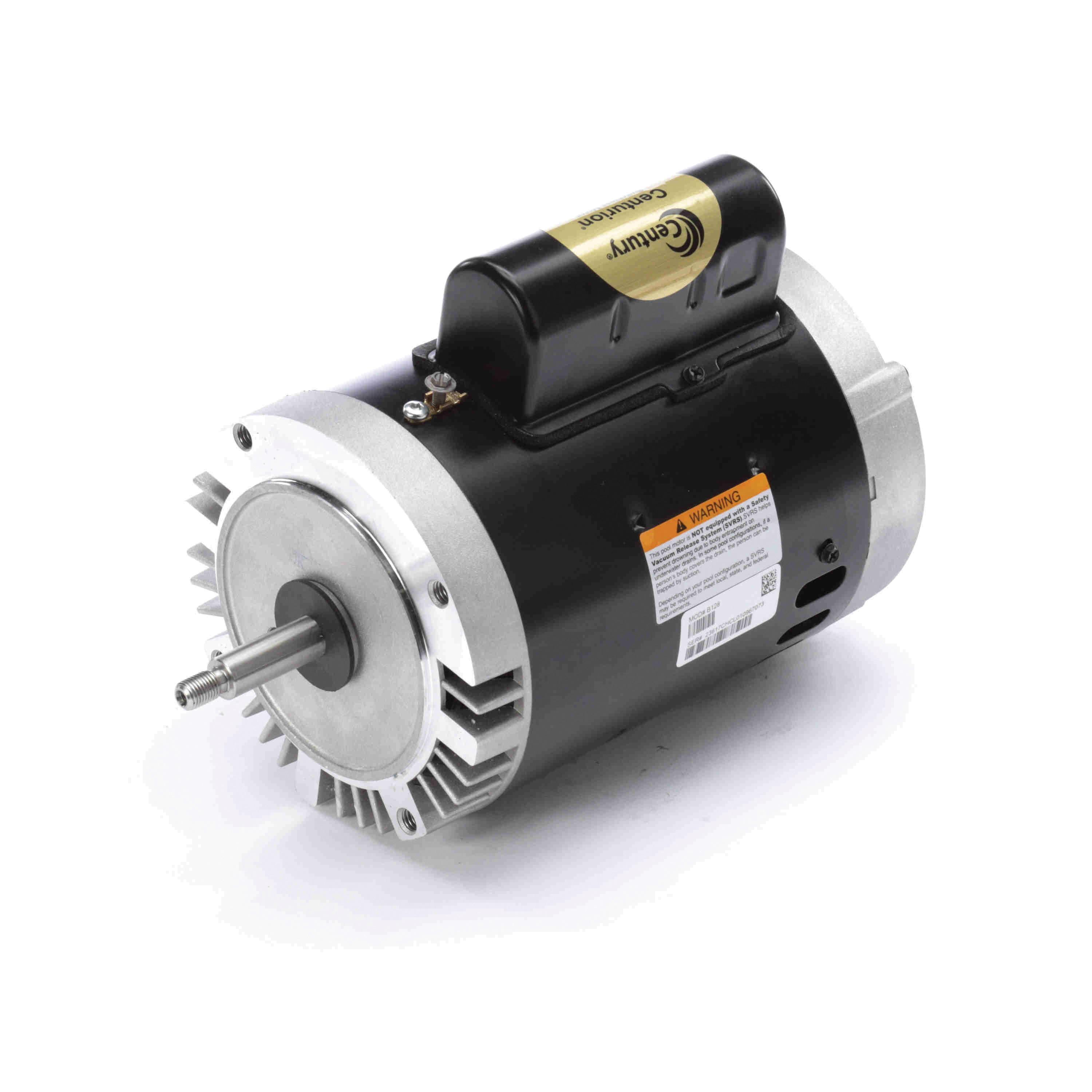

Century® B128 Pool Pump Motor, Continuous Duty, 115/230 V, 7.2/14.4 A, 1 ph -Phase, 1 hp, 3450 rpm Speed
- Manufacturer: Regal Rexnord Corporation
- Brand Name: Century®
- Part#: 58A-B128
- MPN: B128
- UPC: 786674011893
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
Century® Pool Pump Motor, Continuous, 115/230 V, 7.2/14.4 A, 60 Hz, 1 ph Phase, 0.75 kW, 1 hp, 3450 rpm, 1 Speed, Counter Clockwise Rotation, 5/8 in Shaft, Ball Bearing, Insulation Class: Class B, 1.4 Service Factor, Open Drip-Proof Motor Enclosure, 50 deg C, Face, Rigid Base Mounting, 12.14 in L, Additional Information: 2-Pole, 6-3/4 in M56J Frame, 2.57 in Shaft Extension, 7/16 Threaded Shaft, Rolled Steel Frame, Horizontal-Mount, Thermally Protected
| Additional Information | : | 2-Pole, 6-3/4 in M56J Frame, 2.57 in Shaft Extension, 7/16 Threaded Shaft, Rolled Steel Frame, Horizontal-Mount, Thermally Protected |
| Amperage Rating | : | 7.2/14.4 A |
| Bearing Type | : | Ball |
| Dimensions | : | 12.14 in L |
| Duty Type | : | Continuous |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1 hp |
| Insulation Class | : | Class B |
| Motor Enclosure Type | : | Open Drip-Proof |
| Mounting Type | : | Face, Rigid Base |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 0.75 kW |
| Rotation Type | : | Counter Clockwise |
| Service Factor | : | 1.4 |
| Shaft Size | : | 5/8 in |
| Special Order Item | : | N |
| Speed Rating | : | 3450 rpm |
| Temperature Rating | : | 50 deg C |
| Voltage Rating | : | 115/230 V |
- 304 bearing shaft end
- Permanent split capacitor
- 303 stainless steel shaft
Full Engineering Drawing
