F&W® VS215P 57-FWVS215P

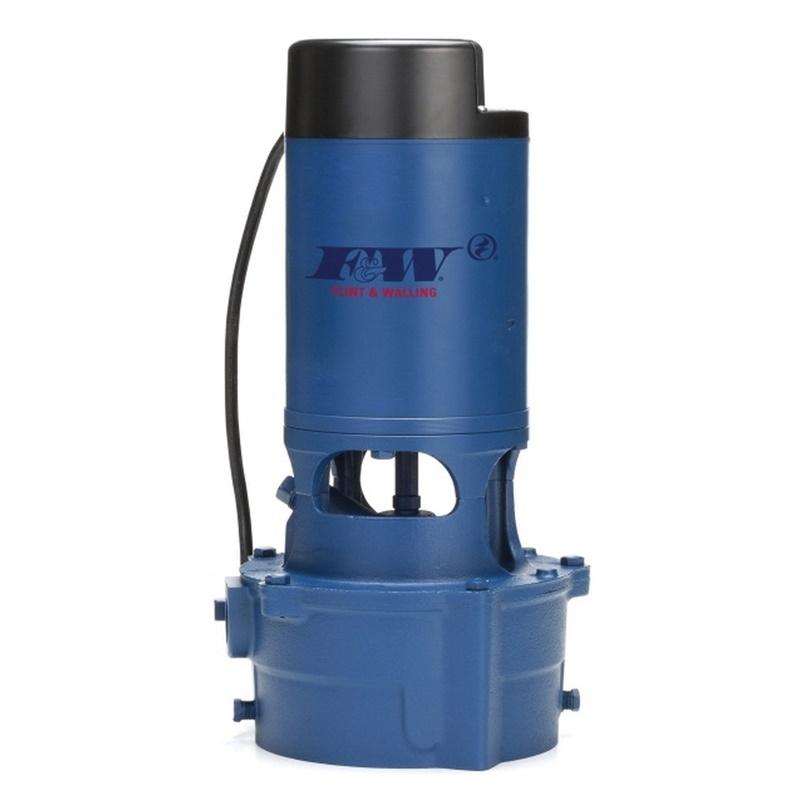

F&W® VS Series VS215P Deep Well Jet Pump, 115/230 V, 1-1/2 hp, 1 ph -Phase, 240 ft Max Feet of Head
- Manufacturer: Zoeller Company
- Brand Name: F&W®
- Part#: 57-FWVS215P
- MPN: VS215P
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
Two stage with adjustable diaphragm pressure provides maximum capacities and pressure at all times.
F&W® Deep Well Jet Pump, 1-1/4 in Suction, 1 in Discharge, 115/230 V, 1-1/2 hp, 1 ph Phase, 60 Hz, 3450 rpm, Maximum Feet of Head: 240 ft, 84 psi Working Pressure
| Discharge Size | : | 1 in |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1-1/2 hp |
| Maximum Feet of Head | : | 240 ft |
| Phase | : | 1 ph |
| Series | : | VS Series |
| Special Order Item | : | N |
| Speed Rating | : | 3450 rpm |
| Suction Size | : | 1-1/4 in |
| Voltage Rating | : | 115/230 V |
| Working Pressure | : | 84 psi |
- NEMA J dual voltage motor features copper windings, double ball bearings and overload protection with automatic reset
- Precision molded impeller and diffuser insures perfect alignment and ultra smooth passages for high-performance and reliability
- Large one-piece pump case design, pump can be disassembled without disturbing well or discharge pipes
- Top located priming port and discharge prevents air lock and allows for easy priming
- Convenient tappings for draining of pump and installation of pressure switch and pressure gauge
