Mc.Donald® 74704B-22 SO-44-AYM-74704B-22-115

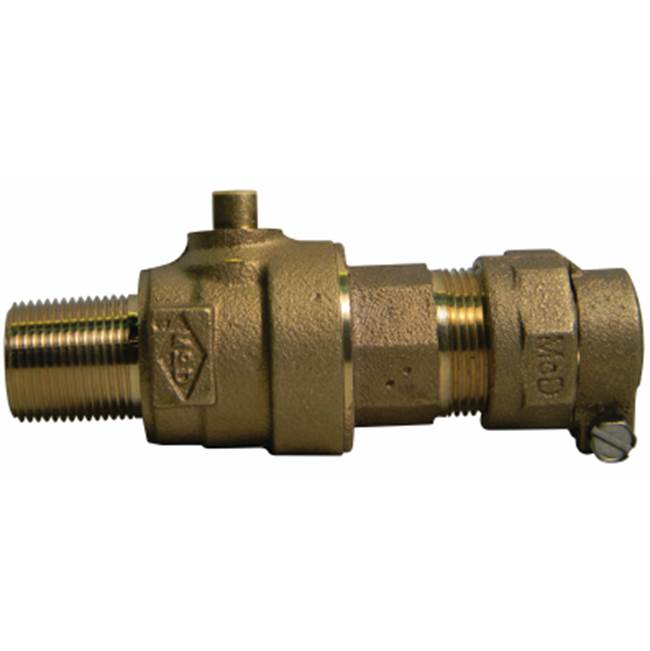

Mc.Donald® 74704B-22 Ball Style Corporation Stop Valve, 1-1/2 in Nominal, MNPT x CTS Compression Connection, Brass Body
- Manufacturer: A.Y. McDonald Mfg. Co
- Brand Name: Mc.Donald®
- Part#: SO-44-AYM-74704B-22-115
- MPN: 74704B-22
- UPC: 053565606859
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
Mc.Donald® Ball Style Corporation Stop Valve, 1-1/2 in Nominal, MNPT x CTS Compression Connection, 300 psig, Brass Body, Lead-Free, 3-3/4 in Height, Additional Information: EPDM Seal COMPRESSION BRASS
| Additional Information | : | EPDM Seal |
| Body Material | : | Brass |
| Connection Type | : | MNPT x CTS Compression |
| Height | : | 3-3/4 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Nominal Size | : | 1-1/2 in |
| Pressure Rating | : | 300 psig |
| SPECIAL_ORDER_ITEM | : | Y |
| Special Order Item | : | Y |
- Brass components in contact with potable water conform to ASTM B584, UNS C89833 (latest revision) and identified with no lead
- Brass components not in contact with potable water conform to ASTM B62 and ASTM B584, UNS C83600 85-5-5-5 (latest revision)
- PTFE-coated brass ball rotates 360 deg
- Blow-out-proof EPDM port seals
- End piece joint sealed with an EPDM O-ring and thread locker
- Insert stiffeners required on all flexible plastic connections
Specification Sheet
