Spears® 857-012 SO-05C-857012
  1. pin-int

Spears® 857-012 SO-05C-857012

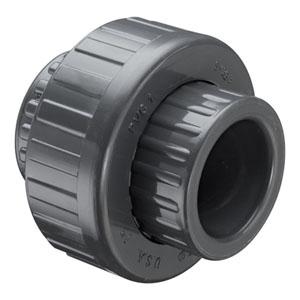

Spears® 857-012 Union, 1-1/4 in x

  • Manufacturer: Spears Manufacturing
  • Brand Name: Spears®
  • Part#: SO-05C-857012
  • MPN: 857-012
  • UPC: 054211170625
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Spears® SCH 80 PVC product designs combine years of proven experience with computer generated stress analysis to yield the optimum physical structure and performance for each fitting. Material reinforcement is uniformly placed in stress concentration areas for substantially improved pressure handling capability. Resulting products are subjected to numerous verification tests to assure obtaining the very best PVC fittings available.

Spears® Union, Union Fitting, 1-1/4 in Connection Size 1

Color      :      Gray
Connection Size 1      :      1-1/4 in
Connection Size 2      :      1-1/4 in
Connection Type 1      :      Socket
Connection Type 2      :      Socket
Connection Type      :      Socket|Socket
Dimensions      :      2-7/8 in L
Fitting Type      :      Union
Hex Size      :      3-5/16 in
Material Construction      :      Molded PVC
Material      :      PVC
Pressure Rating      :      235 psi
Schedule Rating      :      SCH 80
Series      :      2000 Series
Special Order Item      :      Y
Temperature Rating      :      140 deg F
  • Unlike metal, PVC fittings never rust, scale or pit and will provide many years of maintenance-free service and extended system life
  • PVC thermoplastic can handle fluids at service temperatures up to 140 deg F, allowing a wide range of process applications, including corrosive fluids
  • Substantially lower material costs than steel alloys or lined steel, combined with lighter weight and ease of installation, can reduce installation costs by as much as 60% over conventional metal systems
  • Smooth interior walls result in lower pressure loss and higher volume than conventional metal systems
  • Extra large, hard-to-find and custom configurations are fabricated from NSF certified pipe
  • Fittings are engineered and tested to provide full pressure handling capabilities according to Spears® specifications
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Spears_836_030_Catalog.pdf
  • linkVideo Link http://youtu.be/Auyhm7YKQEICategories
  • linkVideo Link http://youtu.be/R-Xgjlni-Ac
