Intermatic® T1475BR SO-73A-T1475BR
  1. pin-int

Intermatic® T1475BR SO-73A-T1475BR

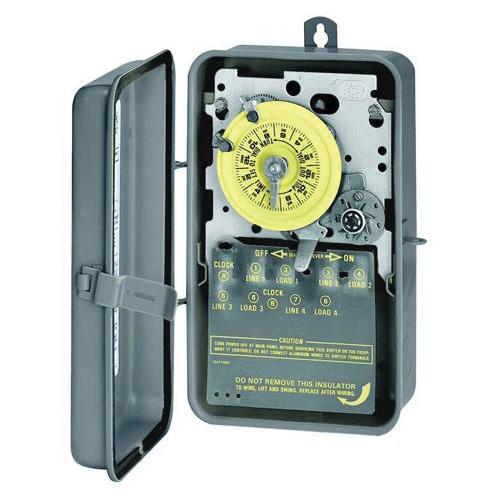

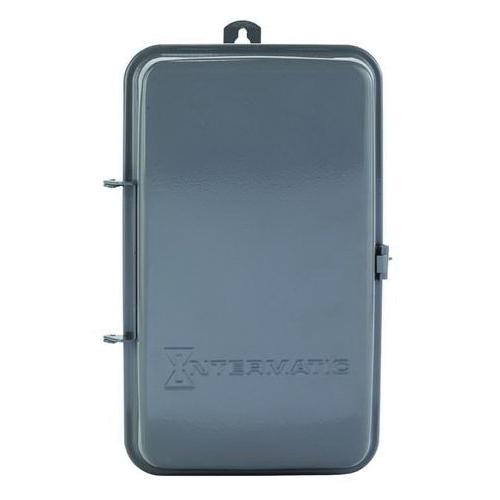

Intermatic® T170 Series T1475BR Time Switch, 480 VAC, 40 A, 60 Hz, 24 hr Timing, 4PST

  • Manufacturer: Intermatic
  • Brand Name: Intermatic®
  • Part#: SO-73A-T1475BR
  • MPN: T1475BR
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series time switches allows for up to 10 on-off settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of on-off trippers as well as three skipper screws to omit the schedule for at least three days.

Intermatic® Time Switch, 480 VAC, 40 A, 60 Hz, 3 W, 4 Poles, Contact Configuration: 4PST, 24 hr Timing, Wall Mounting, NEMA 3R Enclosure, -40 to 130 deg F, 10-1/8 in H x 6-1/2 in W x 3-5/8 in D

Amperage Rating      :      40 A
Contact Configuration      :      4PST
Dimensions      :      10-1/8 in H x 6-1/2 in W x 3-5/8 in D
Enclosure Type      :      NEMA 3R
Frequency Rating      :      60 Hz
Mounting Type      :      Wall
Number of Poles      :      4
Power Rating      :      3 W
SPECIAL_ORDER_ITEM      :      Y
Series      :      T170 Series
Special Order Item      :      Y
Temperature Rating      :      -40 to 130 deg F
Timing Range      :      24 hr
Voltage Rating      :      480 VAC
  • Direct 24 hr control of most loads
  • Up to 10 on-off operations each day with minimum on-off times of 1 hr
  • Manual override button
