Irritrol® 2500SF 72A-2500SF
  1. pin-int

Irritrol® 2500SF 72A-2500SF

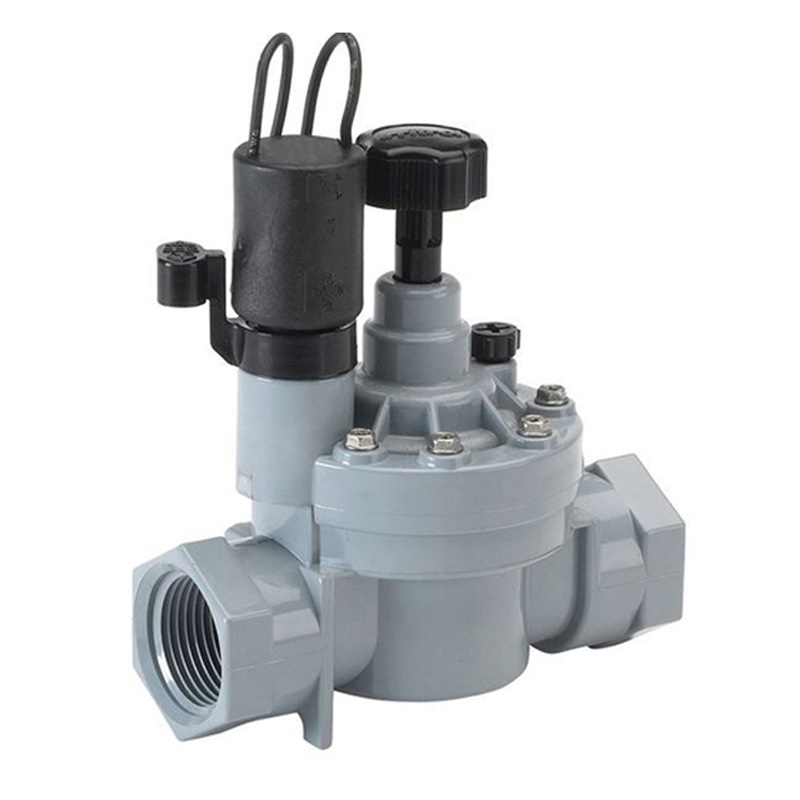

Irritrol® 2500 Series 2500SF Globe Valve With Flow Control, 1 in Nominal, Slip, 25 to 30 gpm

  • Manufacturer: The Toro Company
  • Brand Name: Irritrol®
  • Part#: 72A-2500SF
  • MPN: 2500SF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

The Irritrol® 2500 series is a classic example of making a great valve even better. Irritrol® has taken its proven 205 Series of valves to the next level by adding a full menu of features including a patented "floating metering system" for consistent performance in dirty water applications and a rugged, double beaded diaphragm for long term performance with no leakage. The 2500s manual internal bleed enables the valve to be opened without filling the valve box with water. And servicing is made easy and efficient with captured screws.

Irritrol® Globe Valve With Flow Control, 2500 Series, 1 in Nominal, Slip Connection, 10 to 150 psi, 25 to 30 gpm Flow Rate, 24 V, 0.48 A, PVC Body, 5 in L x 2-3/4 in W x 5-1/8 in H, Additional Information: Santoprene Diaphragm

Additional Information      :      Santoprene Diaphragm
Amperage Rating      :      0.48 A
Body Material      :      PVC
Connection Type      :      Slip
Dimensions      :      5 in L x 2-3/4 in W x 5-1/8 in H
Flow Rate      :      25 to 30 gpm
Nominal Size      :      1 in
Pressure Rating      :      10 to 150 psi
Series      :      2500 Series
Special Order Item      :      N
Voltage Rating      :      24 V
  • Available in female NPT or slip configurations (no male pipe adapter required), will handle all regional installation variances
  • Heavy-duty, corrosion and UV-resistant PVC and stainless steel construction for long term reliability
  • Patented "floating metering system" allows this valve to easily handle dirty water
  • Self-aligning bonnet with captured hex/Philips screws permits fast and easy servicing without removal from the system (APR models)
  • High flow, low friction loss design combined with low flow capability can handle a wide range of applications
  • Rugged, double beaded SANTOPRENE® diaphragm ensures a leak-proof seal
  • Full stainless steel metering system allows for consistent valve operation
  • Internal and external bleed (flush mode) allows for manual operation
