FLEXCON FLS 80D 63A-FLS80D
FLEXCON FLS Series FLS 80D Storage Tank, 80 gal Capacity, 1-1/4 in, 100 psig
- Manufacturer: The Swan Group
- Brand Name: FLEXCON
- Part#: 63A-FLS80D
- MPN: FLS 80D
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price: Call for Price

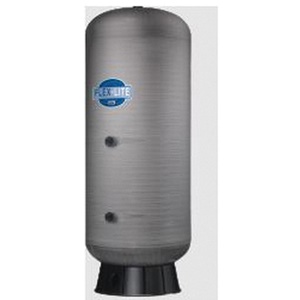

FLEXCON FLS composite storage tank is ideal for a variety of uses, including commercial and residential storage, hydro pneumatic and many other applications. It's 50% lighter than conventional steel tanks and its non-corrosive composite construction sets the standard for performance and durability.
FLEXCON Storage Tank, 80 gal Capacity, 1-1/4 in Connection, Socket x FPT Connection, 100 psig, 120 deg F, Copolymer Polypropylene/Epoxy Resin/Fiberglass, 21.4 in Diameter, 64.1 in Height CONTACT TANK W/ SIDEOUTLETS
| Capacity | : | 80 gal |
| Connection Size | : | 1-1/4 in |
| Connection Type | : | Socket x FPT |
| Diameter | : | 21.4 in |
| Height | : | 64.1 in |
| Material | : | Copolymer Polypropylene/Epoxy Resin/Fiberglass |
| Pressure Rating | : | 100 psig |
| Series | : | FLS Series |
| Special Order Item | : | N |
| Temperature Rating | : | 120 deg F |
- Injection molded copolymer polypropylene Top and bottom domes
- Extruded copolymer polypropylene shell
- Fiberglass wound, epoxy resin-coated outer shell
- Injection molded, high impact ABS base
- Rigid SCH 80 PVC connection
- Stainless steel reinforced, glass filled polypropylene insert molded into the top dome
- High pressure, submersed leak test
Specification Sheet
