K-RAIN® 6404 69A-6404
  1. pin-int

K-RAIN® 6404 69A-6404

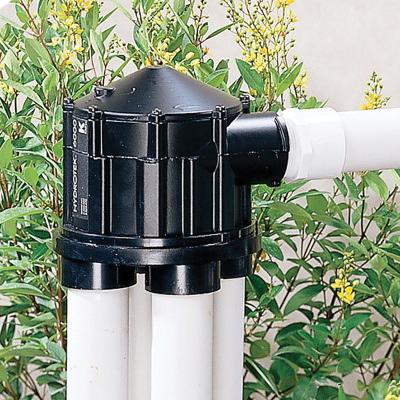

K-RAIN® 6000 Series 6404 4-Zone Cammed Indexing Valve, 1-1/2 in Nominal, NPT x Slip Connection, 4 -Port/Way, Metal Body

  • Manufacturer: K-Rain
  • Brand Name: K-RAIN®
  • Part#: 69A-6404
  • MPN: 6404
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

The 6000 line of indexing valves offers exceptional reliability and durability even under the dirtiest water conditions. With a metal die-cast body, the 6000 valves are capable of high pressure applications and are recommended to be used on pump fed systems or high flow city water systems. The 6000 is also ideal for onsite waste water and effluent water applications. Metal die-cast body, durable, long-lasting and capable of high pressure applications. Available in 4 and 6 outlet models, can quickly and easily change number of watering zones with a cam change. Simplicity of design valves are easily maintained and serviced for long product life. Operates at 15 gpm at pressures of 25 to 150 psi. Ideal for pump fed systems or high flow city water systems. Built-in atmospheric vacuum breaker, releases any vacuum created between the pump and the valve on shut down.

K-RAIN® 4-Zone Cammed Indexing Valve, 1-1/2 in Nominal, NPT x Slip Connection, 25 to 150 psi, 15 to 150 gpm Flow Rate, Number of Ports/Ways: 4, Metal Body, 7 in H x 8 in W

Body Material      :      Metal
Connection Type      :      NPT x Slip
Dimensions      :      7 in H x 8 in W
Flow Rate      :      15 to 150 gpm
Nominal Size      :      1-1/2 in
Number of Ports/Ways      :      4
Pressure Rating      :      25 to 150 psi
Series      :      6000 Series
Special Order Item      :      N
  • Metal die-cast body, durable, long-lasting and capable of high pressure applications
  • Simplicity of design - valves are easily maintained and serviced for long product life
  • Operates at 15 gpm at pressures of 25 to 150 psi - ideal for pump fed systems or high flow city water systems
  • Built-in atmospheric vacuum breaker - releases any vacuum created between the pump and the valve on shut down
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/K_RAIN_1520_Catalog.pdf
