Century® B622 SO-58A-B622

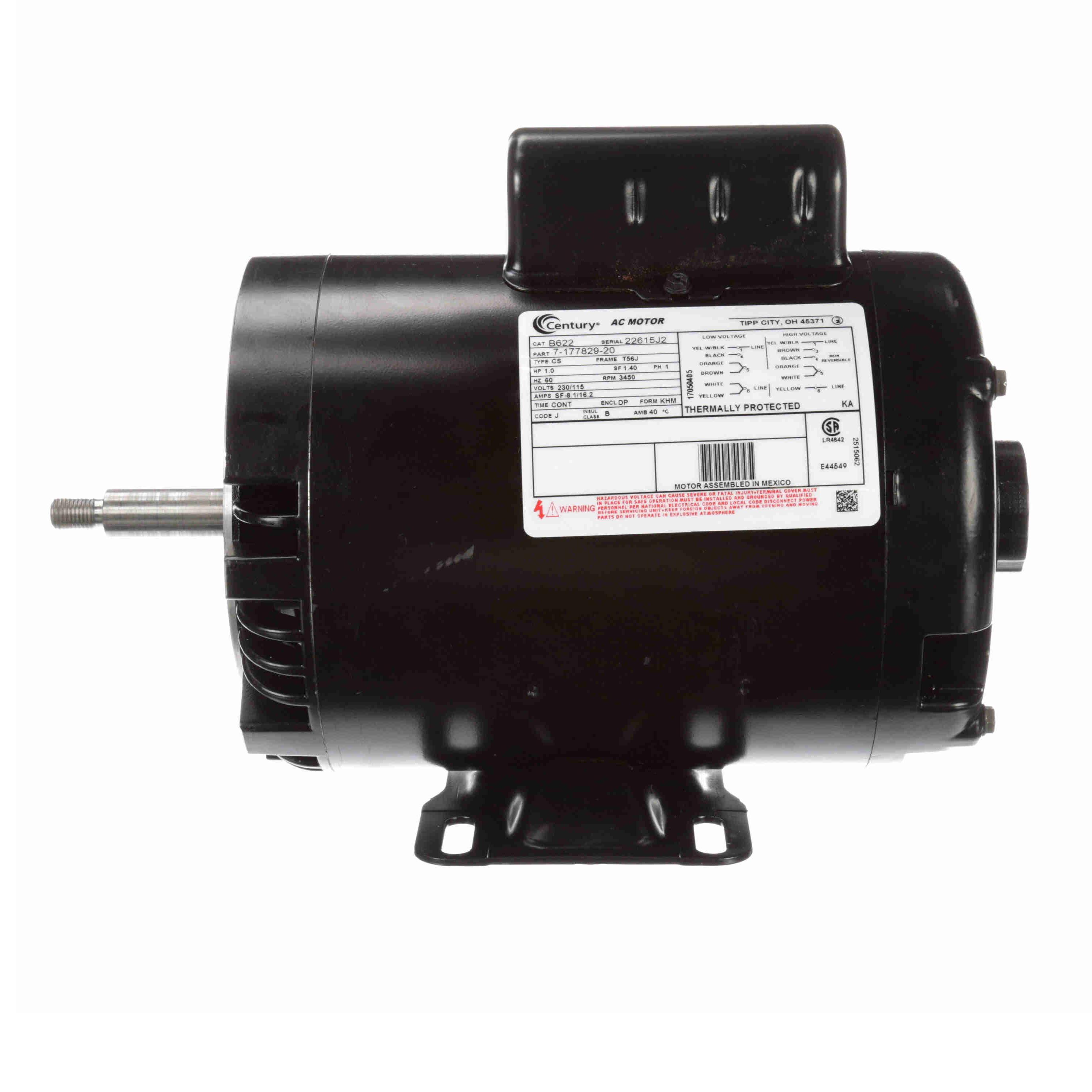

Century® B622 Centrifugal Pump Motor, 115/230 V, 8.1/16.2 A, 1 hp, 3600 rpm Speed, 0.75 kW, 1 ph -Phase, 60 Hz
- Manufacturer: Regal Rexnord Corporation
- Brand Name: Century®
- Part#: SO-58A-B622
- MPN: B622
- UPC: 786674012630
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
Century® Centrifugal Pump Motor, 115/230 V, 8.1/16.2 A, 1 hp, 3600 rpm, 0.75 kW, 1 ph Phase, 60 Hz, Drip-Proof Motor Enclosure, T56J Frame, 0.625 in Dia x 2.45 in L Shaft, Clockwise Rotation, 1 Speed, Ball Bearing, 2 Poles, Continuous, Across the Line Starting Method, Insulation Class: Class B, 1.4 Service Factor, Steel, 40 deg C, 12.05 in L
| Amperage Rating | : | 8.1/16.2 A |
| Bearing Type | : | Ball |
| Dimensions | : | 12.05 in L |
| Duty Type | : | Continuous |
| Frame Size | : | T56J |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1 hp |
| Insulation Class | : | Class B |
| Material | : | Steel |
| Motor Enclosure Type | : | Drip-Proof |
| Number of Poles | : | 2 |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 0.75 kW |
| Rotation Type | : | Clockwise |
| Service Factor | : | 1.4 |
| Shaft Size | : | 0.625 in Dia x 2.45 in L |
| Special Order Item | : | Y |
| Speed Rating | : | 3600 rpm |
| Starting Method | : | Across the Line |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115/230 V |
- UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications
- Double sealed ball bearings mechanically locked on shaft end
- Continuous-duty cycle design allows maximum operation at the rated power specifications
- Class F insulation (as noted) protects motor for a maximum temperature rating
