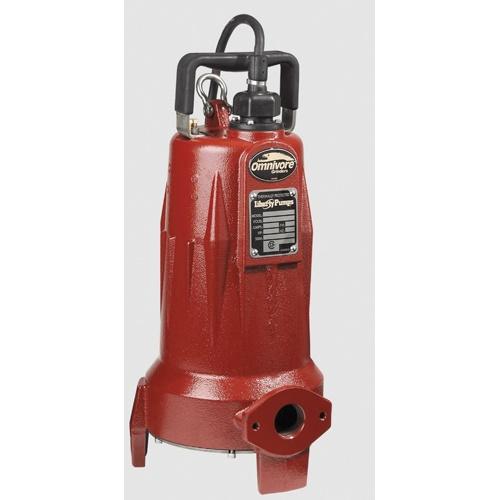

Liberty Pumps® LSG203M-3 60A-L-LSG203M-3
Liberty Pumps® LSG200 Series LSG203M LSG203M-3 Grinder Pump, 208/230 V, 10.6 A, 2 hp, 3450 rpm Speed
- Manufacturer: Liberty Pumps
- Brand Name: Liberty Pumps®
- Part#: 60A-L-LSG203M-3
- MPN: LSG203M-3
- UPC: 671812128468
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
Available at All Branches
-
Price:
Liberty Pumps® LSG Series Omnivore® grinders meet the demanding needs of commercial and residential sewage applications where difficult solids handling ability is crucial. The LSG features patented v-slice® cutter technology. This industry leading design, made of 440 hardened stainless steel, shears rags, jeans, wipes, diapers, sanitary napkins and other debris into a fine slurry. Applications include individual or groups of homes, motels, schools, shopping centers, lakefront developments and systems requiring pressure pumping of waste. Other features include a one-piece cast iron volute and motor housing, quick-connect power cord for field serviceability and a 3 years limited warranty from last bill-of-sale. Complete factory pre-assembled systems are available with multiple basin sizes and control panel options.
Liberty Pumps® Grinder Pump, Model: LSG203M, 208/230 V, 10.6 A, 60 Hz, 2 hp, 3450 rpm, 50 gpm Flow Rate, 1 ph Phase, 1-1/4 in Discharge, 19-1/2 in H x 9-1/2 in W, 316 Stainless Steel Impeller, Ball Bearing, 440 Stainless Steel, Additional Information: 53 A Locked Rotor
| Additional Information | : | 53 A Locked Rotor |
| Amperage Rating | : | 10.6 A |
| Bearing Type | : | Ball |
| Dimensions | : | 19-1/2 in H x 9-1/2 in W |
| Discharge Size | : | 1-1/4 in |
| Flow Rate | : | 50 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 2 hp |
| Impeller Material | : | 316 Stainless Steel |
| Material | : | 440 Stainless Steel |
| Model | : | LSG203M |
| Phase | : | 1 ph |
| Series | : | LSG200 Series |
| Speed Rating | : | 3450 rpm |
| Voltage Rating | : | 208/230 V |
- 2 hp, heavy-duty motor - oil-filled, thermally, protected
- Upper and lower ball bearings
- One-piece uni-body cast iron housing
- 300 Series SS rotor shaft
- Dual seals - upper seal is unitized graphite impregnated silicon carbide. Lower seal is FKM double lip (lower seal ensures that all debris is kept away from upper seal)
- Motor windings insulated to class B (130 deg C)
- Advanced v-slice® cutter technology made of hardened 440 stainless steel - rockwell C 58
- Horizontal 1-1/4 in FNPT discharge
- Back vanes on impeller and spiraled bottom plate for superior solids clearing
- Stainless steel fasteners
- Clog-free volute design
- Designed for maximum heat dissipation and cool motor operating temperatures
- Solid state starting circuit - no mechanical relay coil
- Quick-connect 25 ft power cord (standard)
- Piggyback plug with wide angle float switch (on automatic model) eliminates need for expensive panel
