TORO® SSAK12PS16NS4 SO-75A-SSAK12PS16NS4

TORO® Sentinel® field satellites are commercial-grade, modular units that do the irrigation control work in the field. Designed to operate in both stand alone and central mode. Sentinel controllers are expandable with modular station counts available from 12 to 48-stations with the use of 12-station output modules. Map to assemblies increase possible station count to 96 by allowing communication to another field controller within radio reception. A Sentinel® system is shipped from the factory hand held remote and flow sensor ready no costly add-ons as with competitive systems.

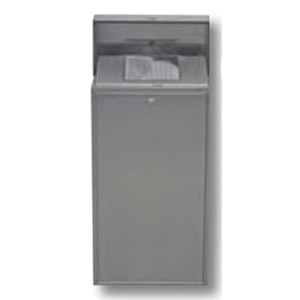

TORO® Satellite Irrigation Controller Assembly With Keypad, 120 V Input, 24 V Output, 2 A, 12 Stations, Pedestal Mounting, 34-1/2 in Length, 17-1/8 in Width, 8-5/8 in Depth, Additional Information: Narrow Band, Sensor Capable, Plastic/Steel Case, Large Capacity Terminal Block with LED Switches Chokes and Additional Surge PED 12 STA

• Flow sensing reads, displays and reacts to under and over flow situations and track water usage, no additional circuit boards are required
• High surge options for three levels of surge protection
• Weather based irrigation Sentinel® waters according to ET values by using one or a number of onsite weather stations
• Manual station outputs flip the toggle switch to manually operate stations
• Map to capability provides the ability to program and communicate to another field controller within radio reception providing control of 96-stations off of one Sentinel® satellite
• True two-way communication allows for changes in the field to be uploaded to the central computer and allows feedback to a hand held radio in stand alone mode
• 16 Programs
• Eight start times per program
• 6 weeks or 365 days scheduling calendar
• Station runtimes from 1 min to 4 hr and 15 min
• Global adjustment from 0 to 255%
• Percent adjust by program from 0 to 255%
• Ability to operate from one to six programs simultaneously
• Flow sensor ready
• Handheld remote ready
• Two sensor inputs included for rain sensors or other switch sensors
• Ability to connect to a laptop to download large station count programs
• Upgrade to a central computer system without additional field satellite hardware or costs
• Program single or multiple stations to operate sequentially or start a program or multiple programs with just a few keystrokes
• Ability to read open or closed contact switches in any station count configuration

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/TORO_SSAK12PS16NS4_Catalog.pdf
