Intermatic® T2005 SO-73A-T2005
  1. pin-int

Intermatic® T2005 SO-73A-T2005

Intermatic® T2000 Series T2005 Time Switch, 120 VAC, 20 A, 60 Hz, 2 to 22 hr, 7 days Timing, 1NO-1NC SPDT

  • Manufacturer: Intermatic
  • Brand Name: Intermatic®
  • Part#: SO-73A-T2005
  • MPN: T2005
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

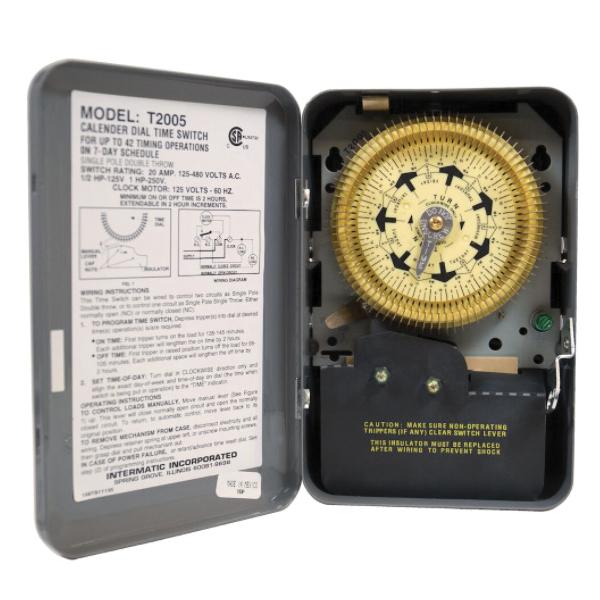

These compact 7 days mechanical time switches offer the capability of having a different schedule for each day of the week. They can handle up to 20 A of resistive loads and up to six On/Off settings per day.

Intermatic® Time Switch, 120 VAC, 20 A, 60 Hz, 3 W, 1 Poles, Contact Configuration: 1NO-1NC SPDT, 2 to 22 hr, 7 days Timing, 12 AWG Wire, Screw Mounting, NEMA 1 Enclosure, Steel Enclosure Type, -40 to 130 deg F, 7-7/8 in H x 5-1/8 in W x 3-7/16 in D WITH DAY SELECT

Amperage Rating      :      20 A
Contact Configuration      :      1NO-1NC SPDT
Dimensions      :      7-7/8 in H x 5-1/8 in W x 3-7/16 in D
Enclosure Type Material      :      Steel
Enclosure Type      :      NEMA 1
Frequency Rating      :      60 Hz
Mounting Type      :      Screw
Number of Poles      :      1
Power Rating      :      3 W
SPECIAL_ORDER_ITEM      :      Y
Series      :      T2000 Series
Special Order Item      :      Y
Temperature Rating      :      -40 to 130 deg F
Timing Range      :      2 to 22 hr, 7 days
Voltage Rating      :      120 VAC
Wire Size      :      12 AWG
  • Minimum 2 hr timing intervals
  • Up to 42 on/off operations per week
  • Type 1 rated metal indoor enclosure
