Mc.Donald® 5133-178 SO-44-AYM-76106-22115

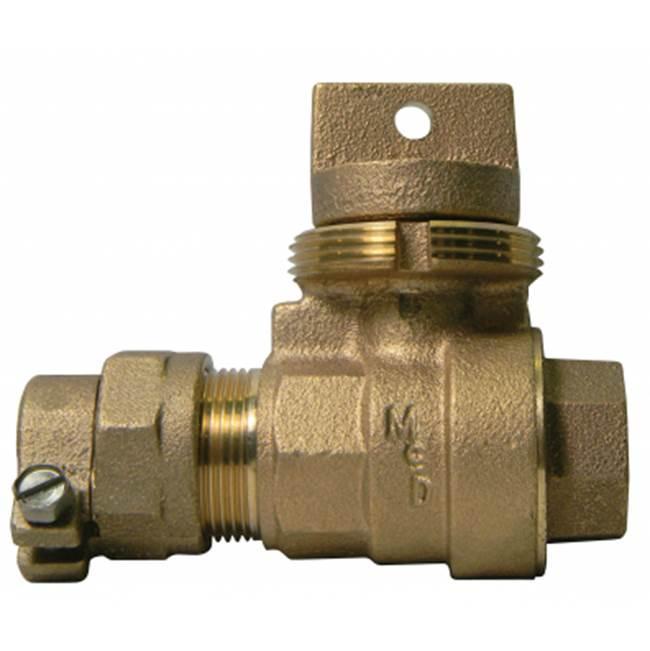

Mc.Donald® 5133-178 Minneapolis Pattern Ball Style Curb Stop, 1-1/2 in Nominal, CTS Compression x FNPT, 300 psi
- Manufacturer: A.Y. McDonald Mfg. Co
- Brand Name: Mc.Donald®
- Part#: SO-44-AYM-76106-22115
- MPN: 5133-178
- UPC: 053565612324
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
Mc.Donald® Minneapolis Pattern Ball Style Curb Stop, 1-1/2 in Nominal, CTS Compression x FNPT Connection, 300 psi, EPDM Softgoods, Brass Body, Lead-Free, 3.4 in Top to Inlet Center
| Body Material | : | Brass |
| Connection Type | : | CTS Compression x FNPT |
| Lead-Free/Contains Lead | : | Lead-Free |
| Nominal Size | : | 1-1/2 in |
| Pressure Rating | : | 300 psi |
| SPECIAL_ORDER_ITEM | : | Y |
| Softgoods Material | : | EPDM |
| Special Order Item | : | Y |
| Top to Inlet Center | : | 3.4 in |
- Brass components in contact with potable water conform to ASTM B584, UNS C89833 and identified with NL
- Brass components not in contact with potable water conform to ASTM B62 and ASTM B584, UNS C83600 -85-5-5-5
- PTFE-coated brass ball rotates 360 deg
- Blowout-proof EPDM port seals
- End piece joint sealed with an EPDM O-ring and thread locker
- Insert stiffeners required on all flexible plastic connections
Submittal
