Rain Bird® X60000 76A-XBD80
Rain Bird® X60000 8-Outlet Emitter, 1/2 in, 0 to 24 gph
- Manufacturer: Rain Bird
- Brand Name: Rain Bird®
- Part#: 76A-XBD80
- MPN: X60000
- UPC: 753810002343
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
The only multi-outlet device on the market with 8 configurable ports and 10 flow options for each port for maximum flexibility. Makes retro fitting easy when installed with the optional in-stem pressure regulator. Easy to maintain, because body can be easily removed from riser. For optimum performance, drip emitters must be installed inside the Xeri-Bird device to help prevent back pressure leaking.
Rain Bird® 8-Outlet Emitter, 0 to 24 gph Flow Rate, 15 to 50 psi, 1/2 in Connection, FPT x Barb Connection, 6.6 in Overall Height
| Connection Size | : | 1/2 in |
| Connection Type | : | FPT x Barb |
| Flow Rate | : | 0 to 24 gph |
| Overall Height | : | 6.6 in |
| Pressure Rating | : | 15 to 50 psi |
| Special Order Item | : | N |

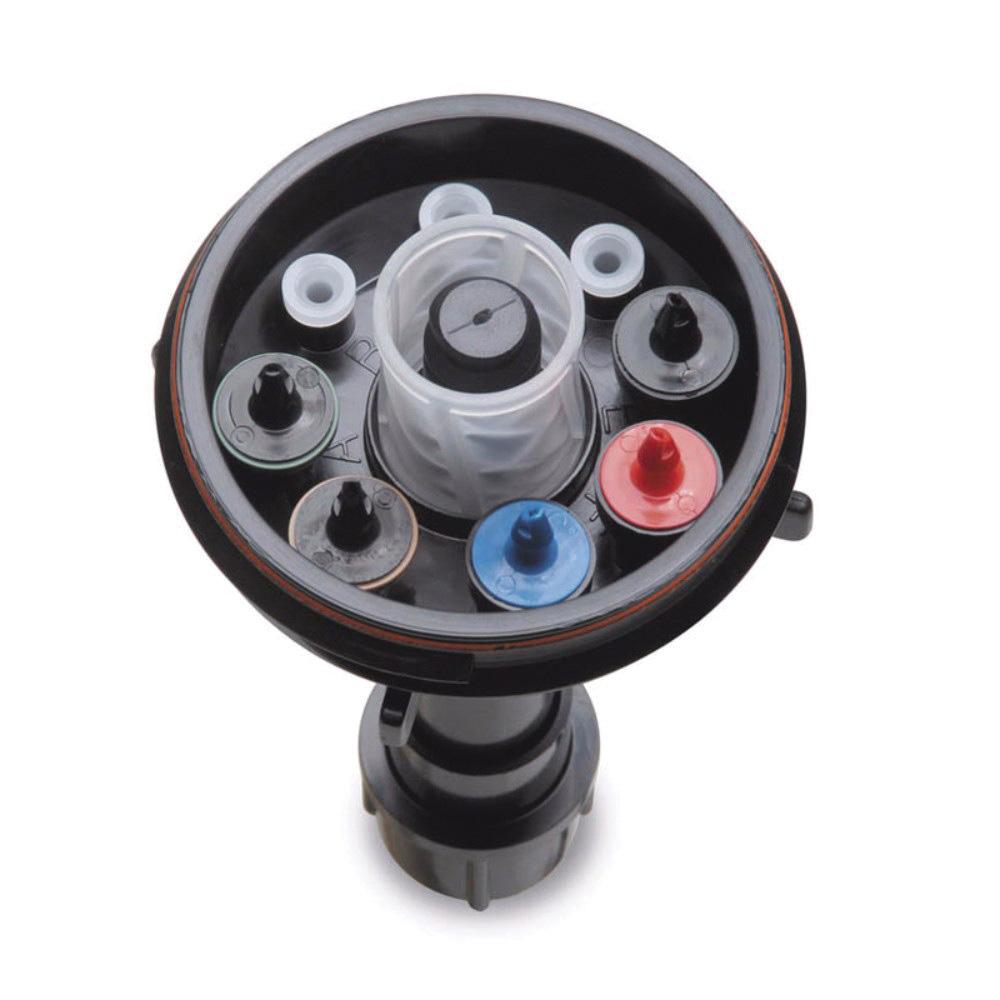

- Xeri-Bird eight multi-outlet emission device with filter and 7 removable port plugs threads onto any 1/2 in riser and delivers water to multiple locations for increased system flexibility

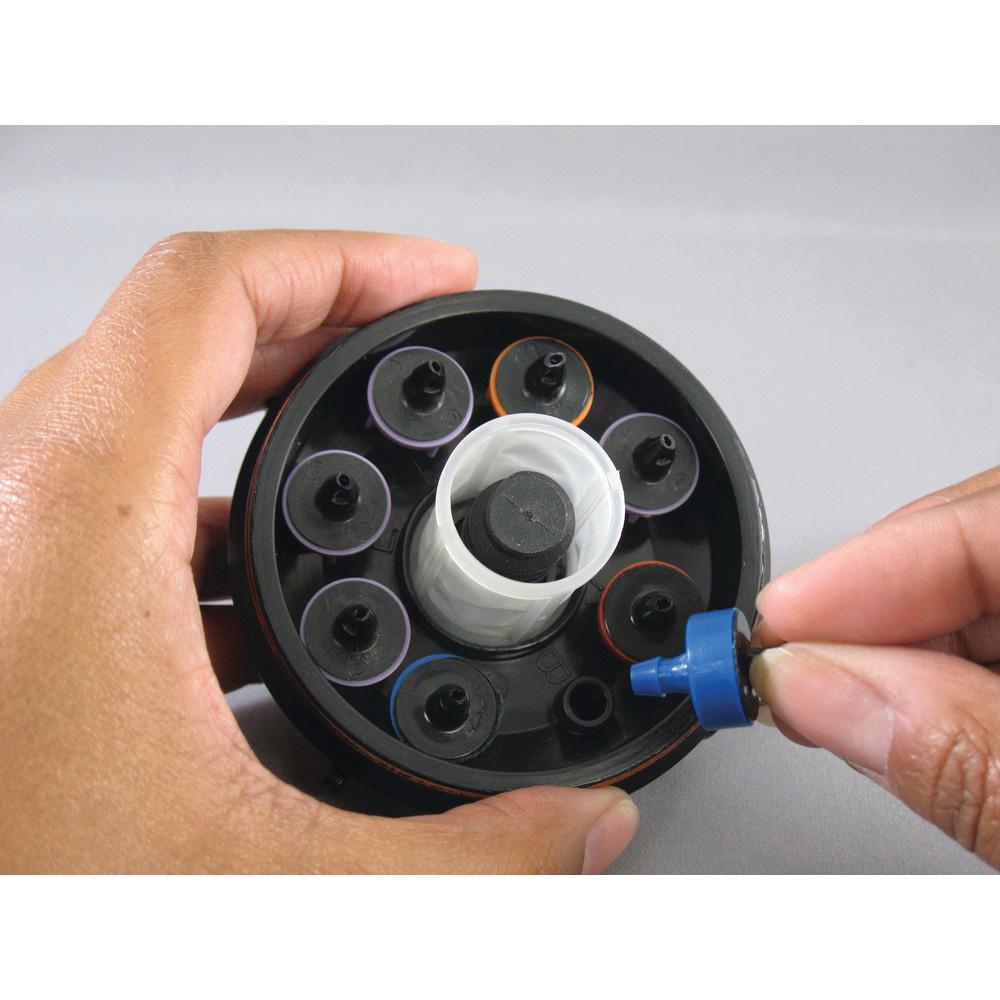

- Each port accepts a Xeri-Bug™ emitter or PC module for independent flows from 0.5 to 24 gph or use a self-piercing barb connector (SPB-025) for unrestricted flow
- Features an integral 200 mesh filter which is easily serviceable from the top of the unit
- Eight bottom-mounted, sure grip barbed outlets securely retain 1/4 in distribution tubing
- Unique union base nut allows removal of Xeri-Bird eight body from riser for easy installation and maintenance
Specification Sheet
