Century® R1202ES SO-58-A300GH

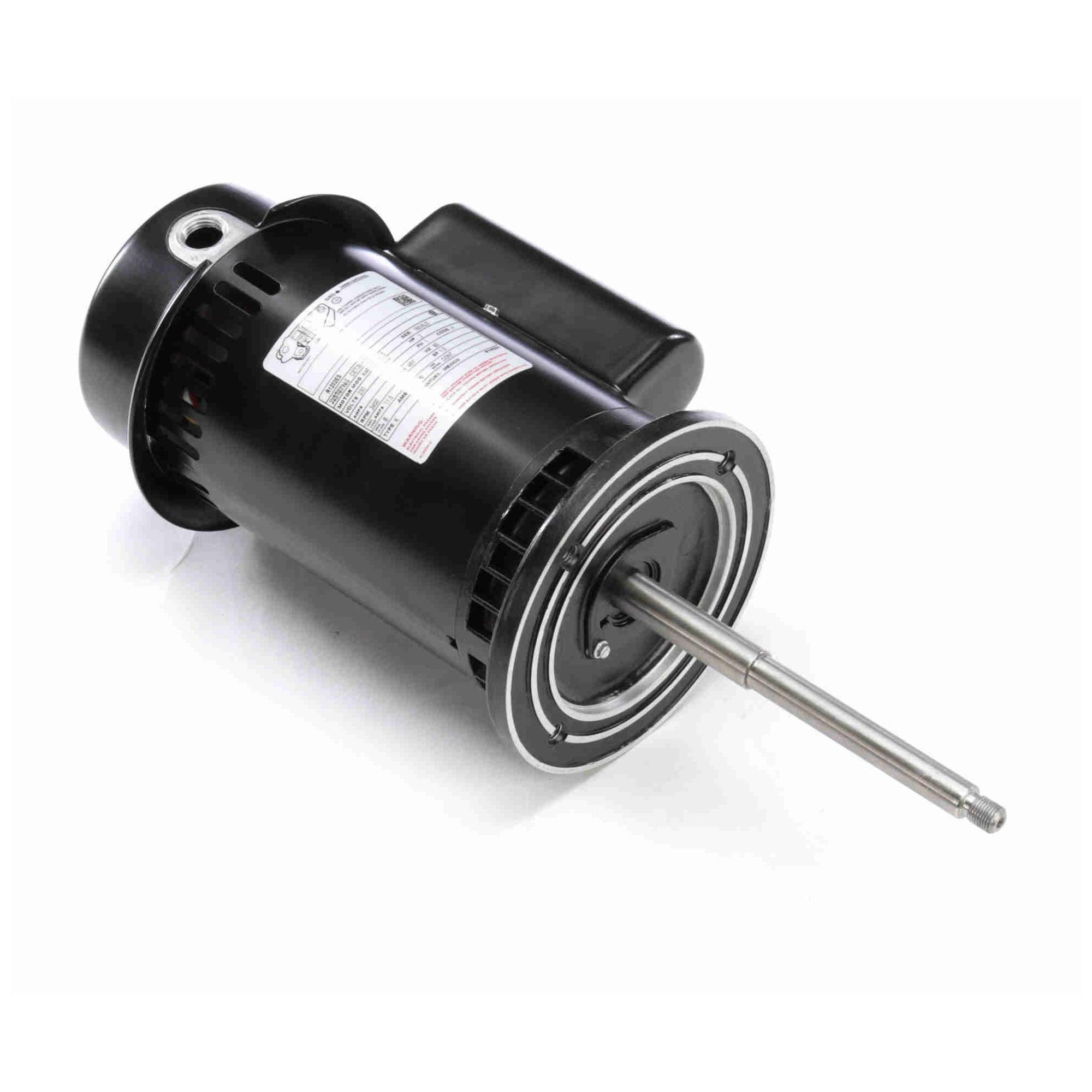

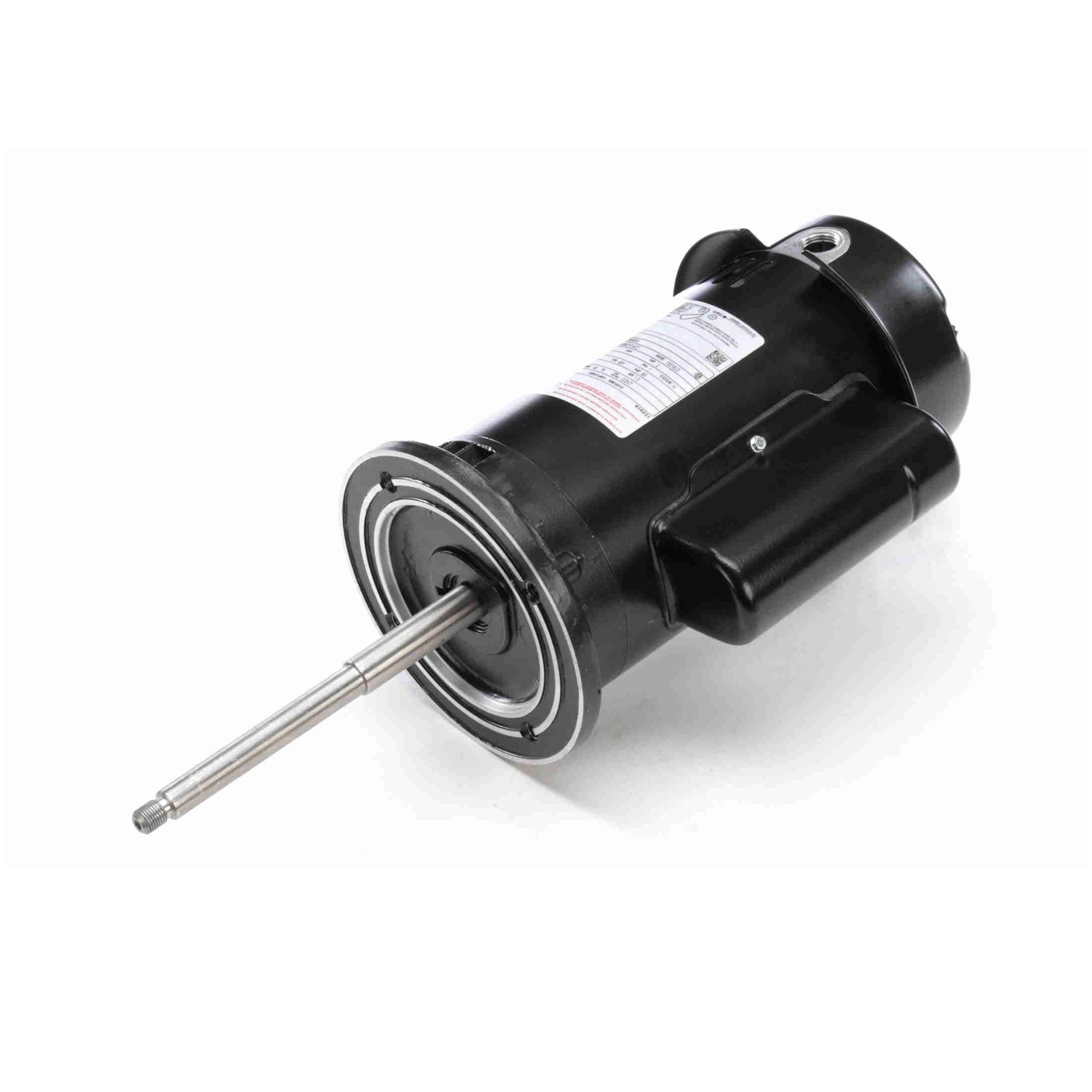

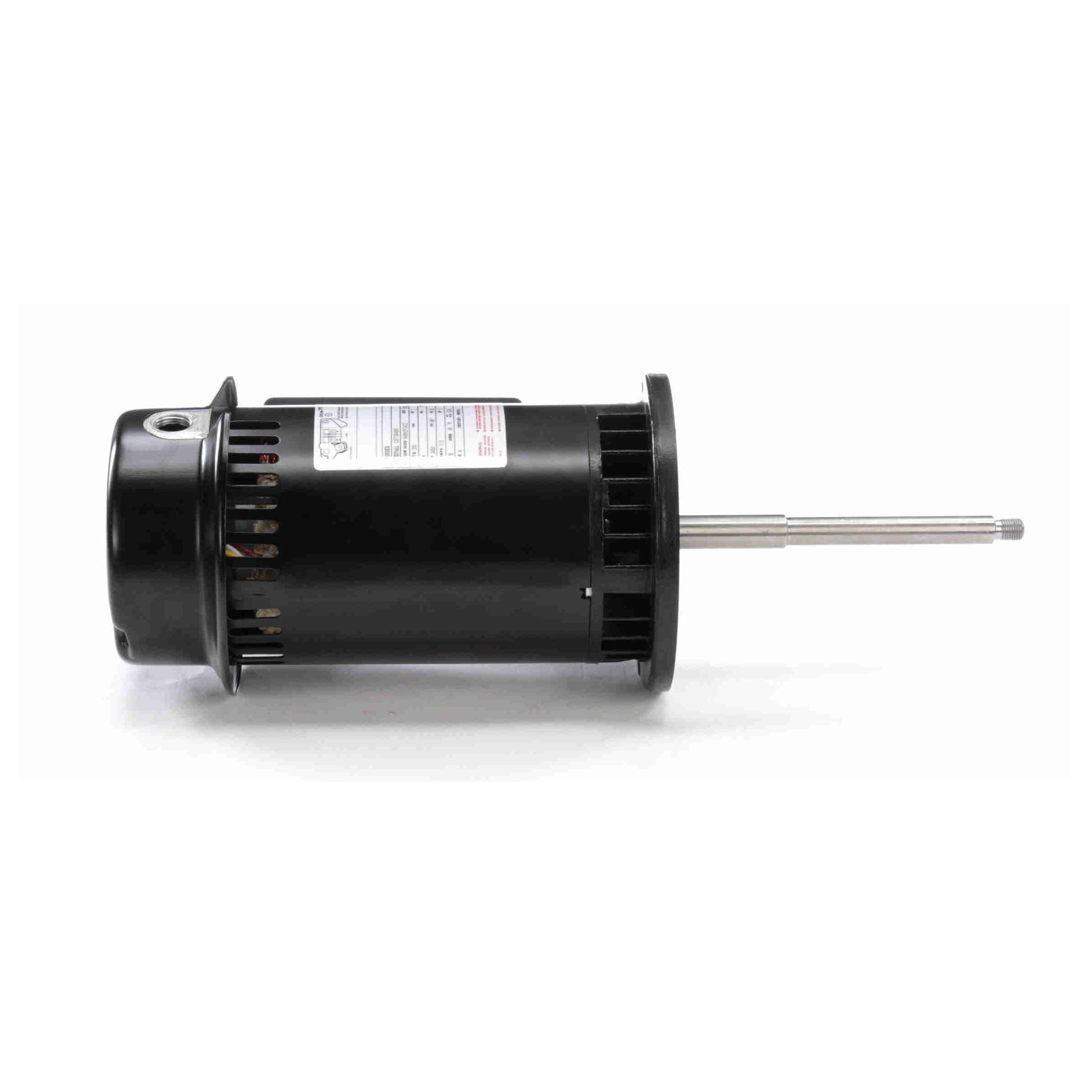

Century® R1202ES General Purpose Motor, 230 V, 11.5 A, 2 hp, 3600 rpm Speed, 1.5 kW, 1 ph -Phase, 60 Hz, 48Y Frame
- Manufacturer: Regal Rexnord Corporation
- Brand Name: Century®
- Part#: SO-58-A300GH
- MPN: R1202ES
- UPC: 786674029423
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
Century® General Purpose Motor, 230 V, 11.5 A, 2 hp, 3600 rpm, 1.5 kW, 1 ph Phase, 60 Hz, ODP Motor Enclosure, 48Y Frame, 0.725 in Dia x 7.625 in L Shaft, Counter-Clockwise Rotation, 1 Speed, Ball Bearing, 2 Poles, Continuous, Across the Line Starting Method, Insulation Class: Class B, 1.3 Service Factor, Steel, 40 deg C, 19.57 in L
| Amperage Rating | : | 11.5 A |
| Bearing Type | : | Ball |
| Dimensions | : | 19.57 in L |
| Duty Type | : | Continuous |
| Frame Size | : | 48Y |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 2 hp |
| Insulation Class | : | Class B |
| Material | : | Steel |
| Motor Enclosure Type | : | ODP |
| Number of Poles | : | 2 |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 1.5 kW |
| Rotation Type | : | Counter-Clockwise |
| SPECIAL_ORDER_ITEM | : | Y |
| Service Factor | : | 1.3 |
| Shaft Size | : | 0.725 in Dia x 7.625 in L |
| Special Order Item | : | Y |
| Speed Rating | : | 3600 rpm |
| Starting Method | : | Across the Line |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 230 V |
- Auto protector
- Sealed switch design
