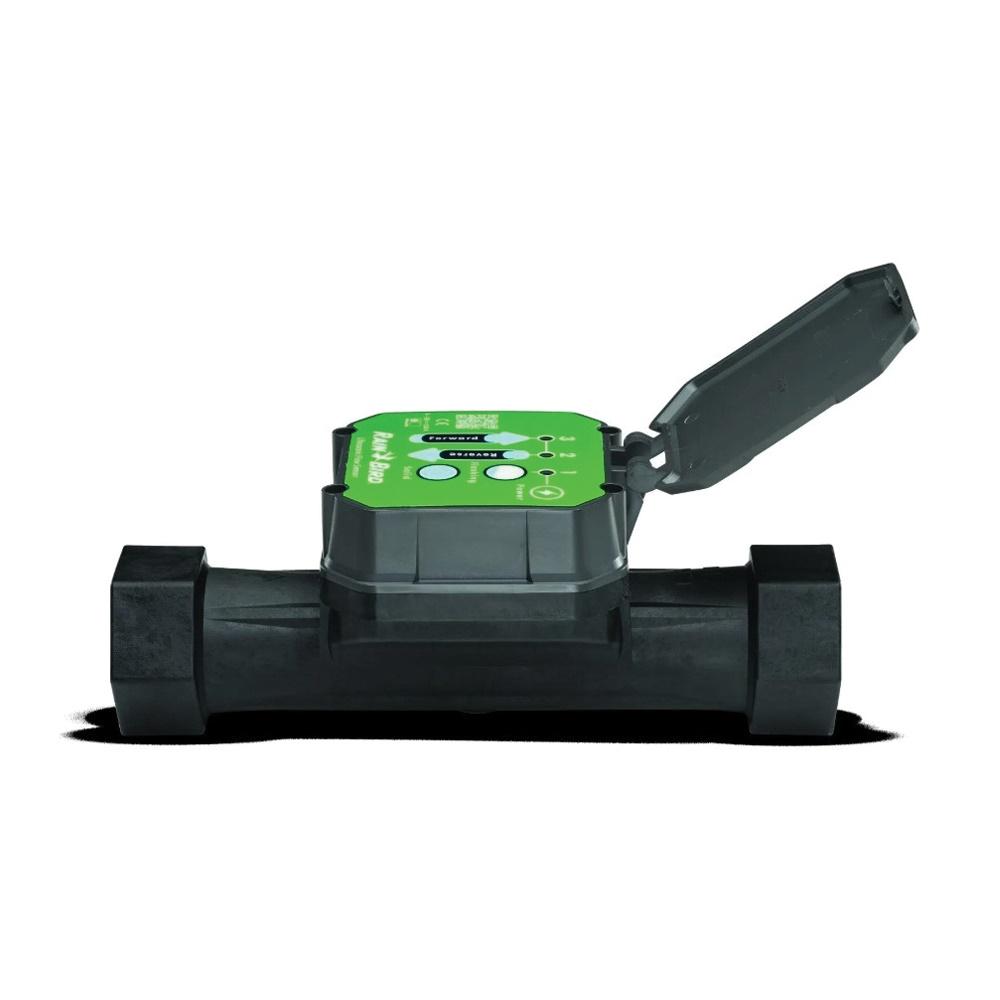

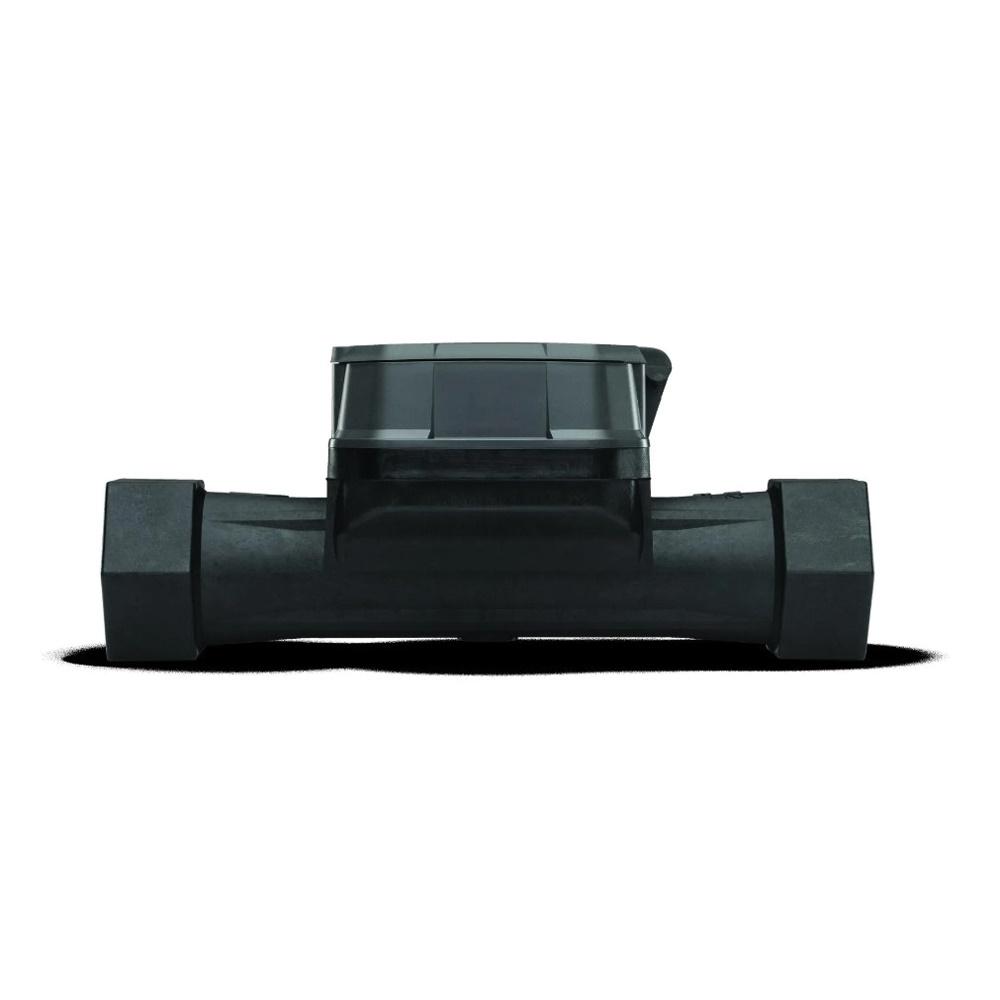

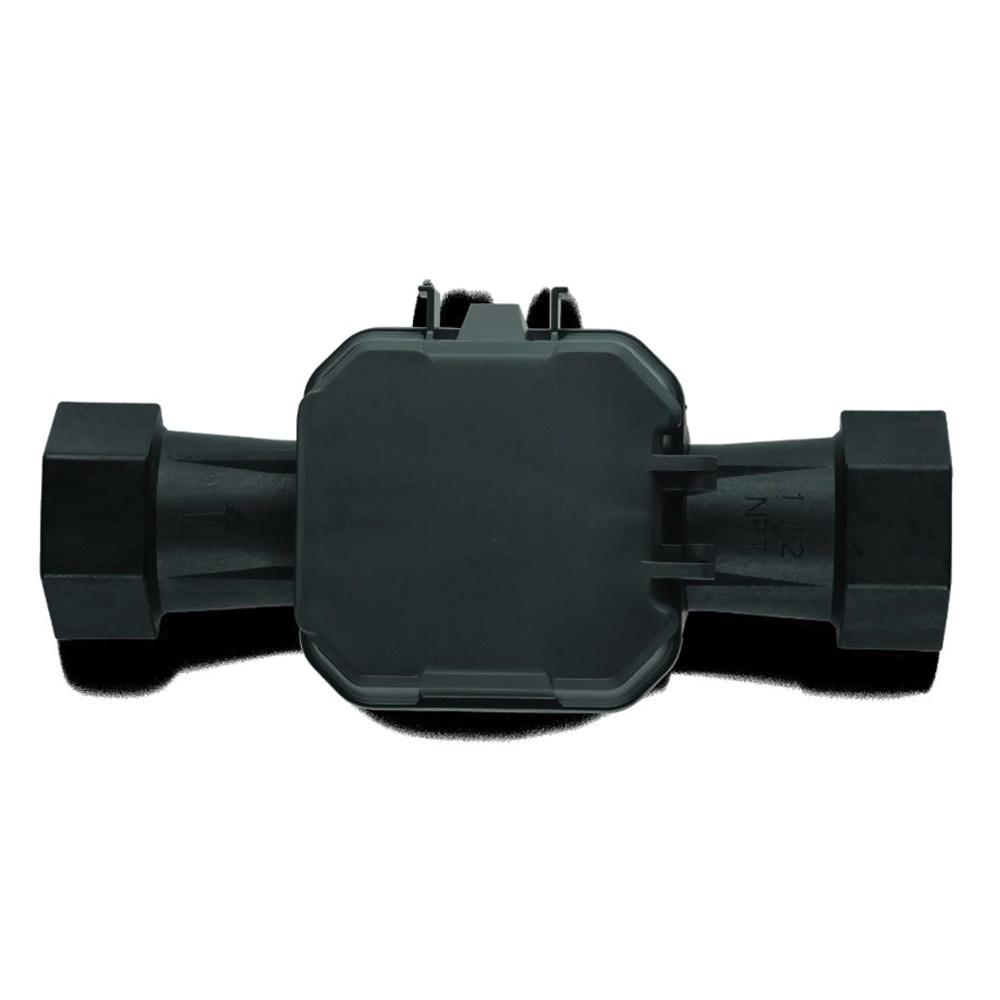

Rain Bird® M80131 76A-UFS150

Rain Bird® Ultrasonic Flow Sensor, 1-1/2 in Connection, NPT Connection, 0.3 to 110 gpm Flow Rate, +/-2 % Accuracy, 200 psi Operating Pressure, 32 to 150 deg F Liquid Temperature, Nylon, 10-1/2 in L x 4-3/4 in W x 4-3/8 in H .5-110 GPM

• No straight pipe requirement, place immediately after a bend or valve, even in the same valve box (jumbo size valve box recommended for easiest fit)
• Read very low and high-flow, all-in-one sensor
• No moving parts for greater reliability and allowing blow-out for winterization with the sensor installed
• Pressure rated to 200 psi and an operating temperature of 32 to 150 deg F

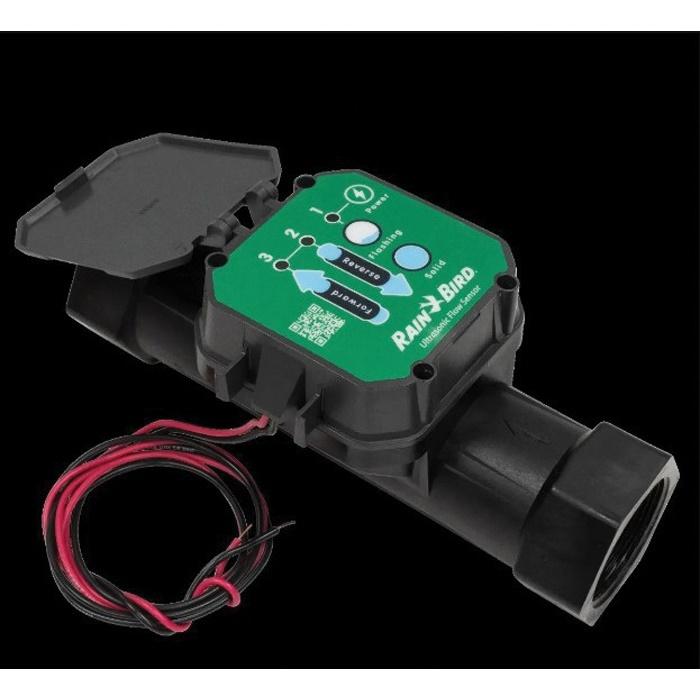

• On-board LED lights indicating power, full pipe status, relative forward flow rate and reverse flow
• Simple setup at the controller with a standard K and offset value for wide compatibility
• Uses internal ultrasonic transducers and acoustical reflectors to sense flow
• Designed for outdoor or underground applications
• Glass-filled nylon body construction for high-pressure rating (200 psi)
• Flo-Watch™ constantly monitors for low flow and excess flow conditions caused by broken lines or heads, automatically quarantines and shuts down the problem area and continues to irrigate non-affected areas, saves water, saves plant material and enables irrigation programs to continue and complete
• The controller automatically learns station flow rates resulting in more accurate flow rates, the automatic collection prevents you from having to manually enter data from drawings or physically visiting each valve to collect flow data and manually entering the data into a controller
• FloManager® determines the optimal station irrigating sequence, the system runs at its fullest capacity until programs are complete, the controller automatically selects and runs multiple valves at the same time within hydraulic parameters, allowing for shorter water windows

• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Rain_Bird_M80130_Specification_Sheet.pdf
