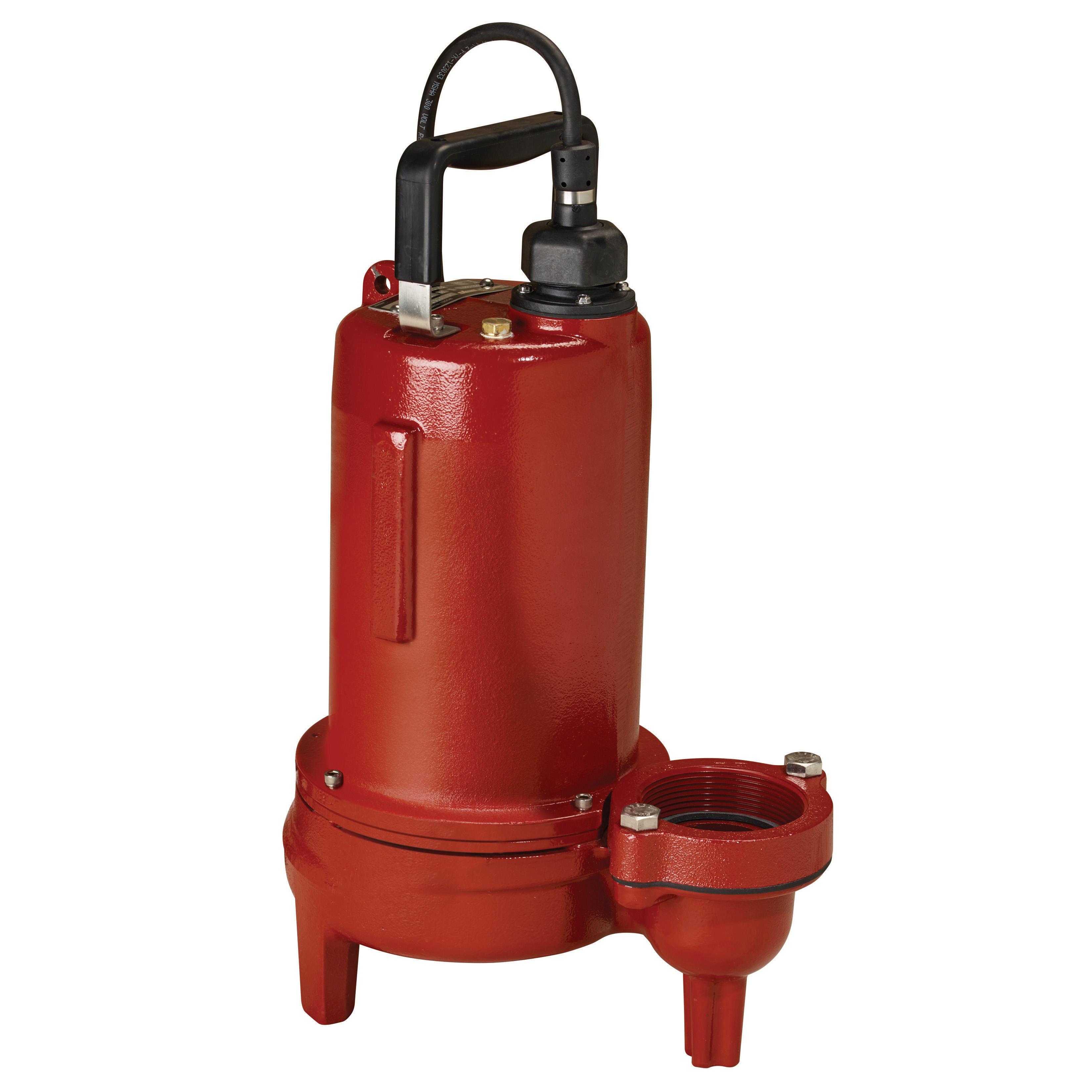

Liberty Pumps® LE102M3-3 60A-L-LE102M3-3
Liberty Pumps® LE Series LE100 LE102M3-3 Submersible Sewage Pump, 208 to 230 V, 8 A, 60 Hz, 1 hp, 109 gpm, Iron
- Manufacturer: Liberty Pumps
- Brand Name: Liberty Pumps®
- Part#: 60A-L-LE102M3-3
- MPN: LE102M3-3
- UPC: 671812104462
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
Available at All Branches
-
Price:
Liberty Pumps® LE100 series is a 1 hp sewage pump with 2 in solids handling capability. Constructed of heavy cast iron with a tough epoxy powder coat finish and stainless steel fasteners, the LE100 is designed for years of trouble-free performance. Its quick-connect power cord allows for easy interchange and is available in 10 ft, 25 ft, 35 ft and 50 ft lengths. The LE100 can be ordered in 2 or 3 in discharge configurations and a wide range of voltages.
Liberty Pumps® Submersible Sewage Pump, LE Series, Model: LE100, 208 to 230 V, 8 A, 60 Hz Frequency, HP Rating: 1 hp, 1725 rpm Speed, 109 gpm Flow Rate, 1 ph, 3 in Discharge, 35 ft Cord Length, Maximum Feet of Head: 40 ft, 60 to 140 deg C, Iron Impeller, Dimensions: 12.6 in L, Iron, Powder-Coated, Additional Information: Quick-Connect Power Cord, 2-Vane Semi-Open Impeller
| Additional Information | : | Quick-Connect Power Cord, 2-Vane Semi-Open Impeller |
| Amperage Rating | : | 8 A |
| Cord Length | : | 35 ft |
| Dimensions | : | 12.6 in L |
| Discharge Size | : | 3 in |
| Finish | : | Powder-Coated |
| Flow Rate | : | 109 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1 hp |
| Impeller Material | : | Iron |
| Material | : | Iron |
| Maximum Feet of Head | : | 40 ft |
| Model | : | LE100 |
| Phase | : | 1 ph |
| Series | : | LE Series |
| Speed Rating | : | 1725 rpm |
| Temperature Rating | : | 60 to 140 deg C |
| Voltage Rating | : | 208 to 230 V |
- Rugged two vane, semi-open cast iron impellers
- Cast iron housings and volute with all stainless and brass fasteners
- Stainless steel shaft
- Oil-filled, hermetically sealed motors
- Built-in thermal protection on single phase models
- 2 or 3 in flanged discharge
- Permanently lubricated upper and lower ball bearings
- Unitized shaft seals
- Single float mechanical level control with piggyback plug for manual bypass operation standard on single phase automatic models
- Adjustable pumping range
- Quick-connect 10 ft standard power cord allows replacement of cord in seconds without breaking seals to motor
