Irritrol® MC-8E 72A-MC8
  1. pin-int

Irritrol® MC-8E 72A-MC8

Irritrol® MC-E (Blue) Series MC-8E Controller, 24 V, 1.24 A, 8 -Station

  • Manufacturer: The Toro Company
  • Brand Name: Irritrol®
  • Part#: 72A-MC8
  • MPN: MC-8E
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

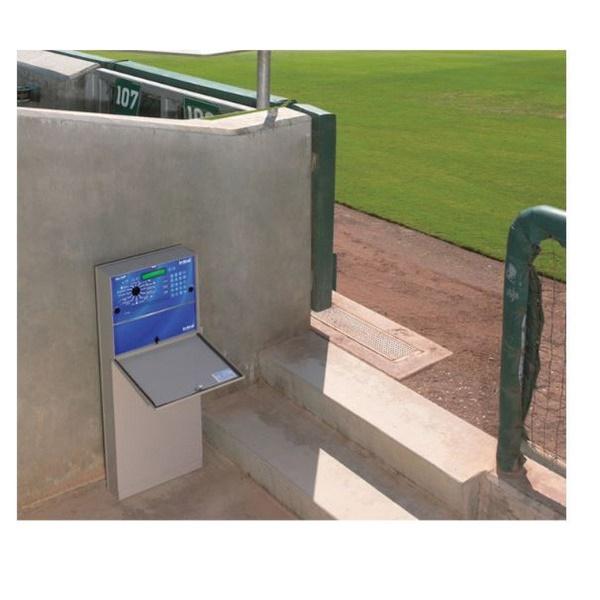

We've taken the industry standard for commercial irrigation control and made it better. The Irritrol® MC-E, in its rugged, lockable, vandal-proof steel cabinet, now boasts a modernized feature set that includes the scheduling versatility of 8 independent programs, state of the art flow monitoring, program looping and new blue face panels. And now, the MC-E blue model is compatible with Irritrol® new CLIMATE LOGIC® wireless weather sensing system to automatically adjust the controllers program-based on each day's weather. We've also added a 48 station model to the family. From small to large landscapes, the new MC-E has got what it takes to meet the growing demands of todays commercial irrigation applications.

Irritrol® Controller, 24 V, 1.24 A, 120 V, 60 Hz Input, 24 V at 2.08 A Output Transformer, 8 Stations, Backlit LCD Display, Wall Mounting, 10-1/2 in Width, 4-1/4 in Depth, For Use With: P-2B Pedestals, Additional Information: 9-3/4 in H Dimension

Additional Information      :      9-3/4 in H Dimension
Amperage Rating      :      1.24 A
Depth      :      4-1/4 in
Display Type      :      Backlit LCD
Mounting Type      :      Wall
Number of Stations      :      8
Series      :      MC-E (Blue) Series
Special Order Item      :      N
Suitable For Use With      :      P-2B Pedestals
Transformer Rating      :      120 V, 60 Hz Input, 24 V at 2.08 A Output
Voltage Rating      :      24 V
Width      :      10-1/2 in
  • Backward compatible face panel to existing MC plus-B cabinets on site allows field upgrades to the new MC-E while leaving cabinet/pedestal in place
  • Flow monitoring with diagnostics and 3 types of alarms (requires station #1 for a N/O master valve circuit)
  • Protects the system and saves water by detecting, reporting and handling high flow and unscheduled flow events
  • CLIMATE LOGIC® compatible turn the controller into a weather-based program using an on site wireless weather sensor
  • Provides irrigation control for any size project
  • Commercial-grade, heavy-duty, lockable, weather-resistant cabinets and pedestals
  • For long service life in demanding commercial and heavy turf applications
