FIMCO 1006 68A-016
  1. pin-int

FIMCO 1006 68A-016

FIMCO 1000 Series 1006 Hydro Indexing Valve, 1 in Nominal, Slip Connection, 6 -Port/Way, 10 to 24 gpm, 10 psi Pressure

  • Manufacturer: FIMCO Manufacturing Inc
  • Brand Name: FIMCO
  • Part#: 68A-016
  • MPN: 1006
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

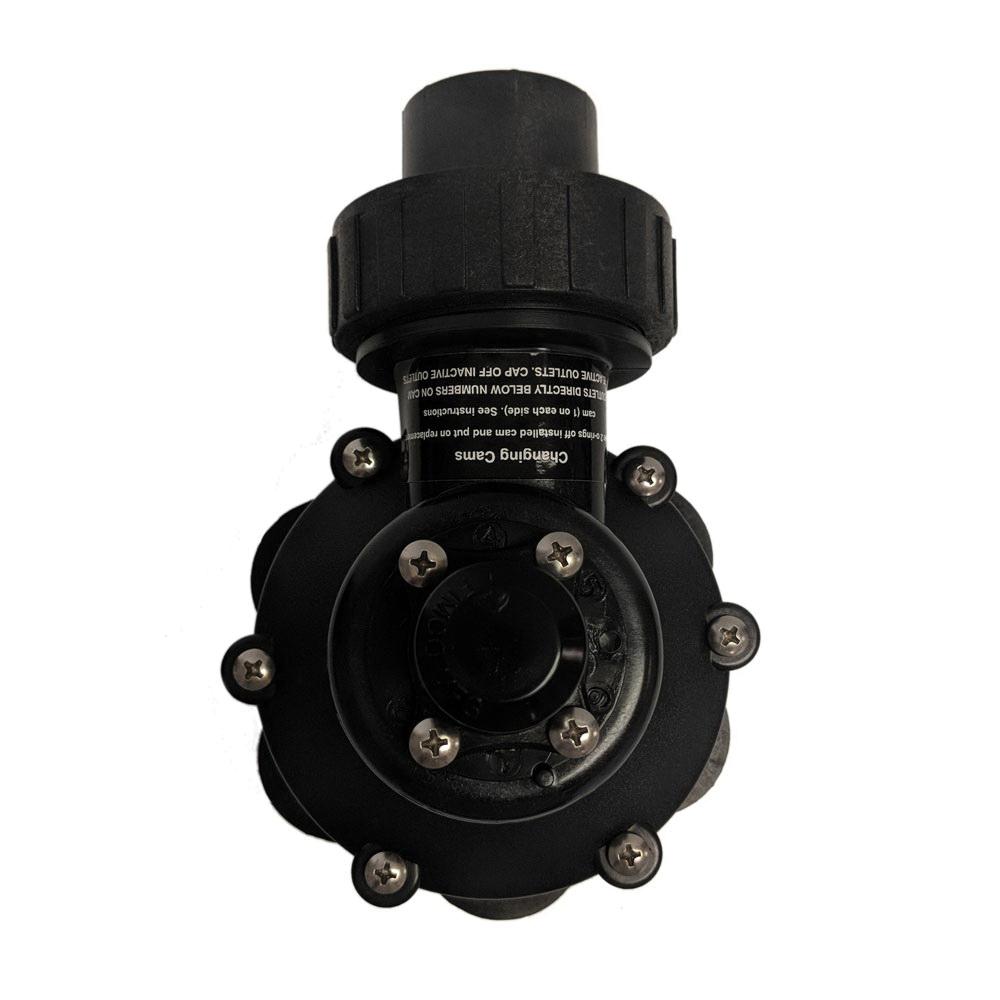

The model #1006 hydro indexing valve has one 1 in inlet and six 1 in outlets which are all slip fit. This valve is recommended for use in a city water driven irrigation system and can run from two to six zones based on the chosen cam configuration.

FIMCO Hydro Indexing Valve, 1 in Nominal, Slip Connection, 10 psi, 10 to 24 gpm Flow Rate, Water Media, Number of Ports/Ways: 6, Plastic Body, TPE Disc, ABS Trim, 7 x 4-1/2 x 7-1/2 in, Domestic/Import: Domestic

Body Material      :      Plastic
Connection Type      :      Slip
Dimensions      :      7 x 4-1/2 x 7-1/2 in
Disc Material      :      TPE
Domestic/Import      :      Domestic
Flow Rate      :      10 to 24 gpm
Media      :      Water
Nominal Size      :      1 in
Number of Ports/Ways      :      6
Pressure Rating      :      10 psi
Series      :      1000 Series
Special Order Item      :      N
Trim Material      :      ABS
  • The standard flow stem and disc assembly requires a minimum of 10 gpm, the low flow stem and disc assembly requires a minimum of 6 gpm
  • The optional zone indicator can come pre-installed and is a very handy device
  • It is extremely useful when working on or troubleshooting an irrigation system
