F&W® VS210P 57-FWVS210P

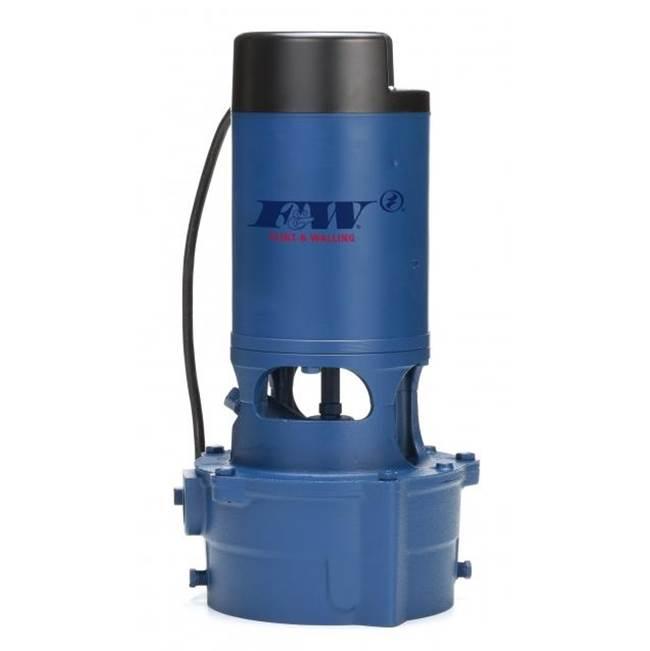

F&W® VS210P Jet Pump, 21/10.5 A, 115/230 V, 1 hp, 1 ph -Phase
- Manufacturer: Zoeller Company
- Brand Name: F&W®
- Part#: 57-FWVS210P
- MPN: VS210P
- UPC: 054757006723
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
F&W® Jet Pump, 1-1/4 in Suction, 1 in Discharge, 21/10.5 A, 115/230 V, 1 hp, 1 ph Phase, 60 Hz, 3450 rpm, 15-1/8 in L x 9-1/4 in W x 17-5/8 in H
| Amperage Rating | : | 21/10.5 A |
| Dimensions | : | 15-1/8 in L x 9-1/4 in W x 17-5/8 in H |
| Discharge Size | : | 1 in |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1 hp |
| Phase | : | 1 ph |
| Special Order Item | : | N |
| Speed Rating | : | 3450 rpm |
| Suction Size | : | 1-1/4 in |
| Voltage Rating | : | 115/230 V |
- Two-stage with adjustable diaphragm pressure provides maximum capacities and pressure at all times
- NEMA J dual voltage motor features copper windings, double-ball bearings and overload protection with automatic reset
- Precision molded impeller and diffuser insures perfect alignment and ultra smooth passages for high-performance and reliability
- Large one-piece pump case design, pump can be disassembled without disturbing well or discharge pipes
- Top located priming port and discharge prevents air lock and allows for easy priming
- Convenient tappings for draining of pump and installation of pressure switch and pressure gauge
Instruction/Installation Manual
