Intermatic® R8806M101C 73B-8806M
  1. pin-int

Intermatic® R8806M101C 73B-8806M

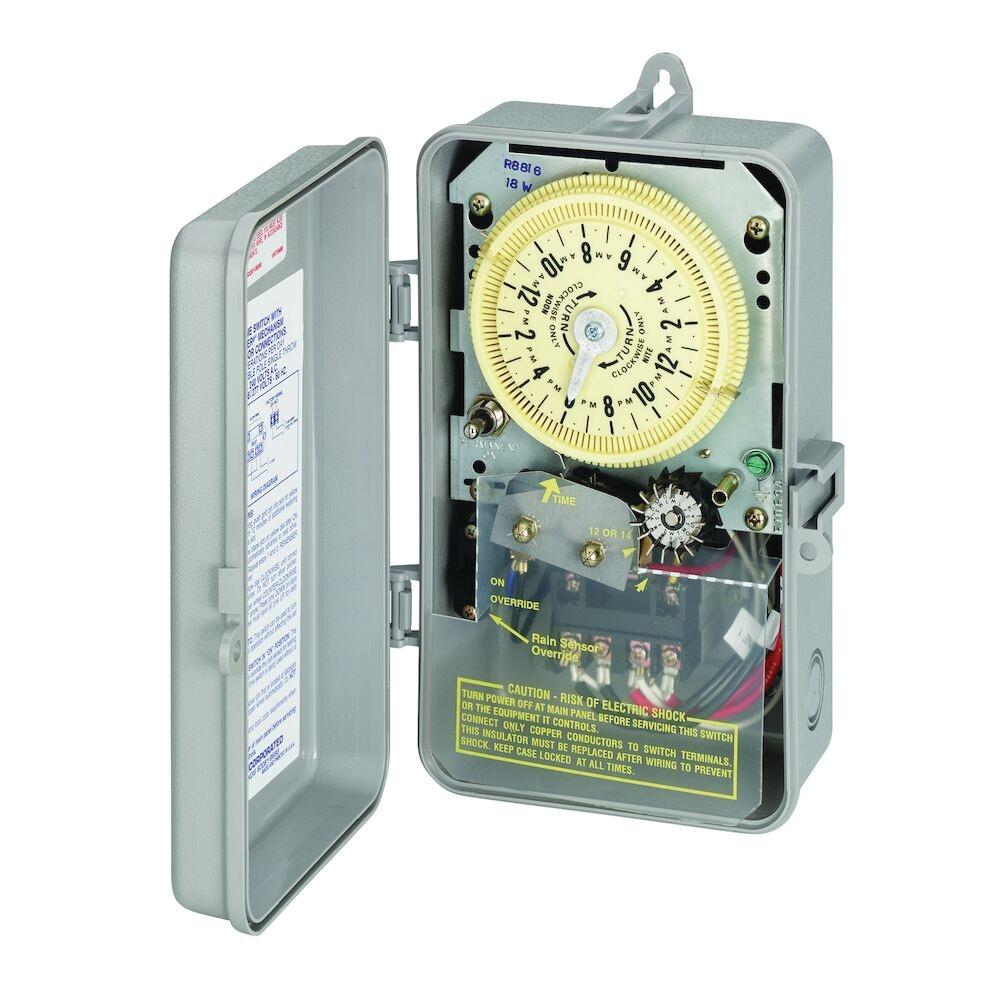

Intermatic® R8806M101C Sprinkler/Irrigation Time Switch With 14 days Skipper, 240 VAC, 30 A, 60 Hz

  • Manufacturer: Intermatic
  • Brand Name: Intermatic®
  • Part#: 73B-8806M
  • MPN: R8806M101C
  • UPC: 078275148024
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach Available at All Branches

These irrigation timers are designed to permit one to 44 "ON" operations every 24 hrs and provide watering increments down to 12 min or up to 20 hrs and 45 min to ensure proper watering increments. These models also allow for biweekly scheduling with the convenient 14 days skipper for maximum water conservation and odd/even day compliance.

Intermatic® Sprinkler/Irrigation Time Switch With 14 days Skipper, 240 VAC, 30 A, 60 Hz, -40 to 130 deg F, 10 in H x 6-1/2 in W x 4 in D, Additional Information: Analog/Mechanical Mechanism Type, 3 HP, 12 Trippers

Additional Information      :      Analog/Mechanical Mechanism Type, 3 HP, 12 Trippers
Amperage Rating      :      30 A
Dimensions      :      10 in H x 6-1/2 in W x 4 in D
Frequency Rating      :      60 Hz
Special Order Item      :      N
Temperature Rating      :      -40 to 130 deg F
Voltage Rating      :      240 VAC
  • Up to 44 On/Off settings per day
  • Water metering increments from 12 min to 20 hrs and 45 min
  • 14 days skipper enables irrigation to be omitted on selected day
  • Allows for alternate day scheduling
  • On/Off/Auto switch enables shutdown during rainy days and extended watering during dry periods without disturbing the cycle set on dial
  • Type 3R plastic indoor/outdoor enclosure
