Zurn® 1UFX1F-700 56B-710-W
  1. pin-int

Zurn® 1UFX1F-700 56B-710-W

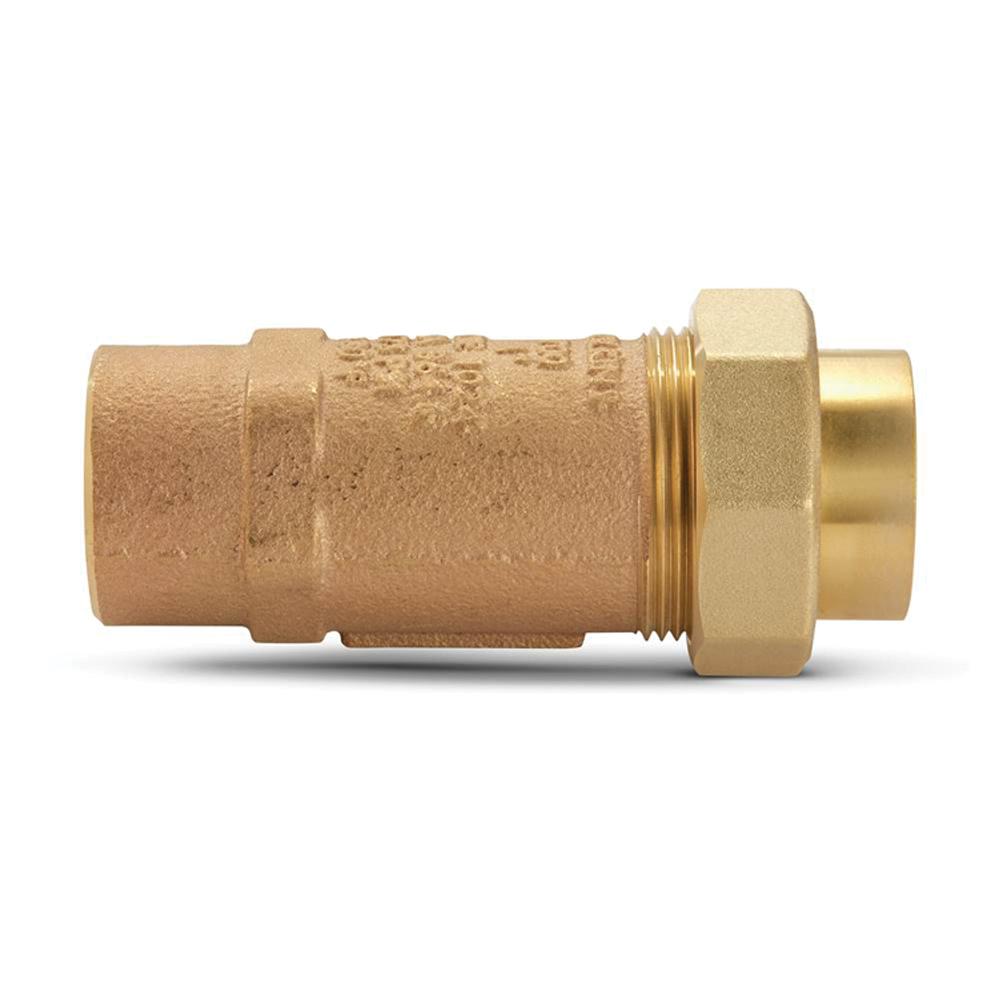

Zurn® 700 Series 1UFX1F-700 Check Valve, 1 in, FPT, Bronze

  • Manufacturer: Zurn Elkay Water Solutions
  • Brand Name: Zurn®
  • Part#: 56B-710-W
  • MPN: 1UFX1F-700
  • UPC: 612052040066
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

The Zurn® 700 dual check valve assembly protects against backsiphonage and backpressure of polluted water. The 700 is suitable for low hazard non-potable applications.

Zurn® Check Valve, 700 Series, 1 in Nominal, FPT Connection, 175 psi, 180 deg F, 13 to 40 gpm Flow Rate, Water Media, 4-1/2 in Inlet to Outlet Length, Bronze Body, Noryl/Stainless Steel Trim, Buna-N/Delrin Softgoods

Body Material      :      Bronze
Connection Type      :      FPT
Flow Rate      :      13 to 40 gpm
Inlet to Outlet Length      :      4-1/2 in
Media      :      Water
Nominal Size      :      1 in
Pressure Rating      :      175 psi
Series      :      700 Series
Softgoods Material      :      Buna-N/Delrin
Special Order Item      :      N
Temperature Rating      :      180 deg F
Trim Material      :      Noryl/Stainless Steel
  • 1 x 1 in dual check valve union female inlet by female outlet
  • For isolation protection applications
  • Protects against backflow of pollutants
  • Can be configured with union on inlet or outlet
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Zurn_Wilkins_1UFX1F_700_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Zurn_Wilkins_1UFX1F_700_Line_Drawing.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Zurn_Wilkins_1UFX1F_700_Specification_Sheet.pdf
