AMTROL® WX-202G 63A-WX202G

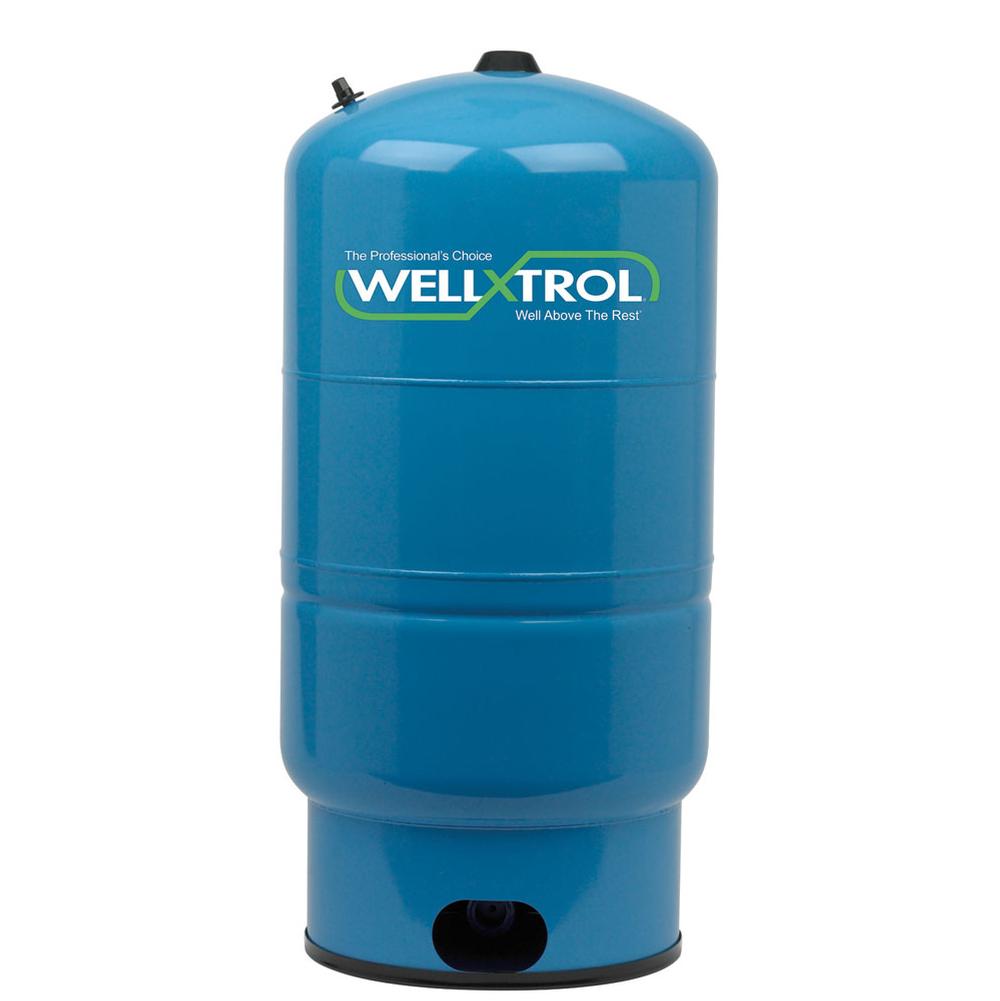

AMTROL® WX-202G Well Tank, 20 gal Tank, 15 in Dia, 32 in H, 1 in Connection, NPTF Connection
- Manufacturer: Worthington Industries, Inc
- Brand Name: AMTROL®
- Part#: 63A-WX202G
- MPN: WX-202G
- UPC: 642031646132
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
AMTROL® Well Tank, 20 gal Tank, 15 in Diameter, 32 in Height, 1 in Connection, NPTF Connection, 200 deg F, 150 psi, 38 psig Precharge, Steel Tank, Tuf-Kote HG-Coated Tank, Gray Tank
| Capacity | : | 20 gal |
| Connection Size | : | 1 in |
| Connection Type | : | MNPT |
| Diameter | : | 15 in |
| Dimensions | : | 32 in H x 15 in Dia |
| Finish | : | Tuf-Kote HG Blue |
| Height | : | 32 in |
| Material | : | High Strength Steel |
| Precharge Rating | : | 38 psig |
| Pressure Rating | : | 150 psi Working, 38 psi Pre-Charge, 125 psi Relief Valve Setting |
| Series | : | WX |
| Special Order Item | : | N |
| Tank Capacity | : | 20 gal |
| Tank Color | : | Gray |
| Tank Finish | : | Tuf-Kote HG-Coated |
| Tank Material | : | Steel |
| Temperature Rating | : | 200 deg F |
- Deep-drawn domes are double the strength of rolled-steel
- Provides internal bracing for added strength
- Prevents diaphragm over-extension
- The industry's thickest diaphragm provides extra strength and flexibility
- Seamless design conforms exactly to the shell without stretching, creasing or forming bubbles that could trap water or sediment
- Unique hoop ring and groove design secures the diaphragm, liner and shell for added strength and reliability
- Exclusive welding process eliminates rough spots and sharp edges that can damage the diaphragm and liner
- High-grade stainless steel withstands aggressive water conditions
- Piped to stand for fast, easy installation
