Century® UST1152 SO-58-AOS-UST1152

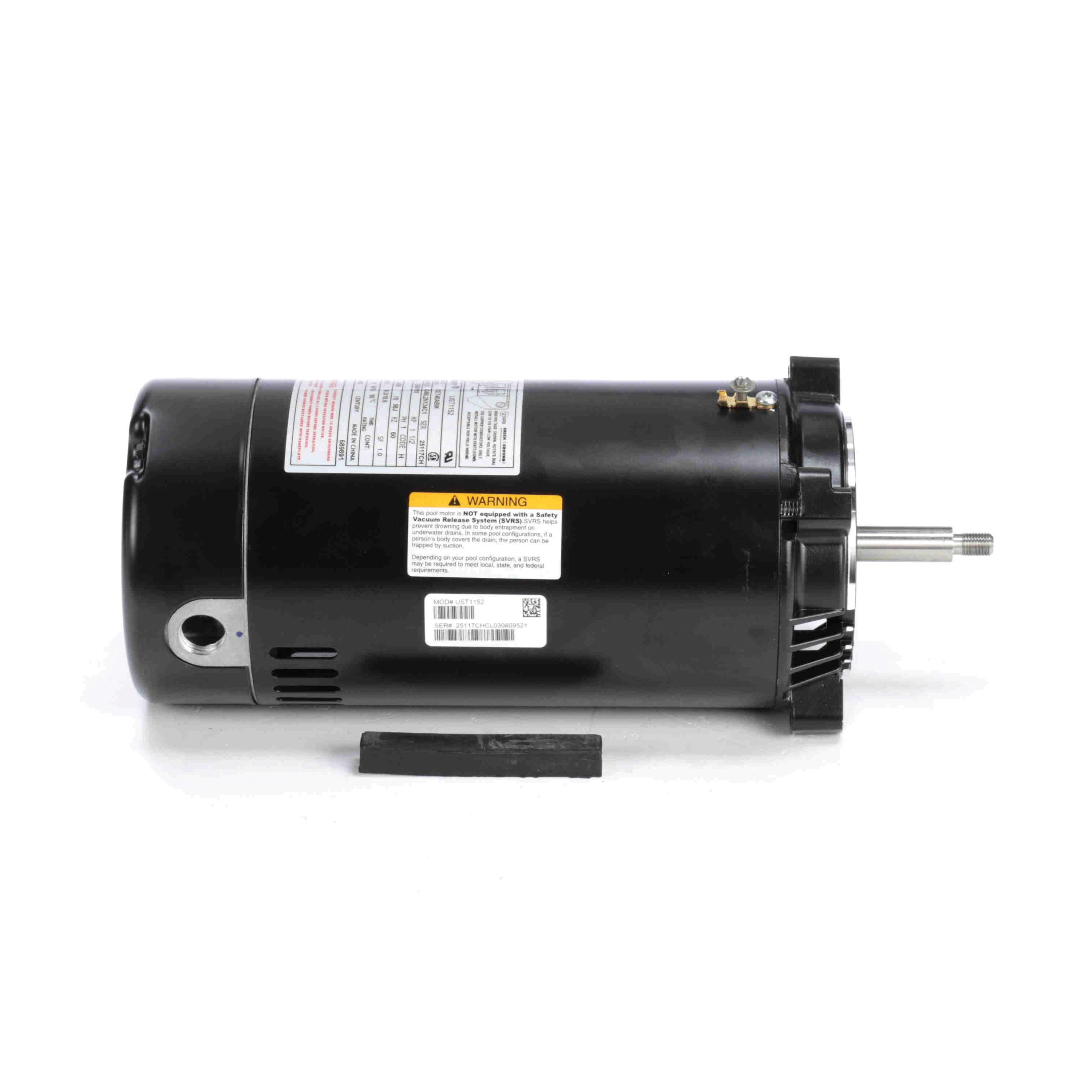

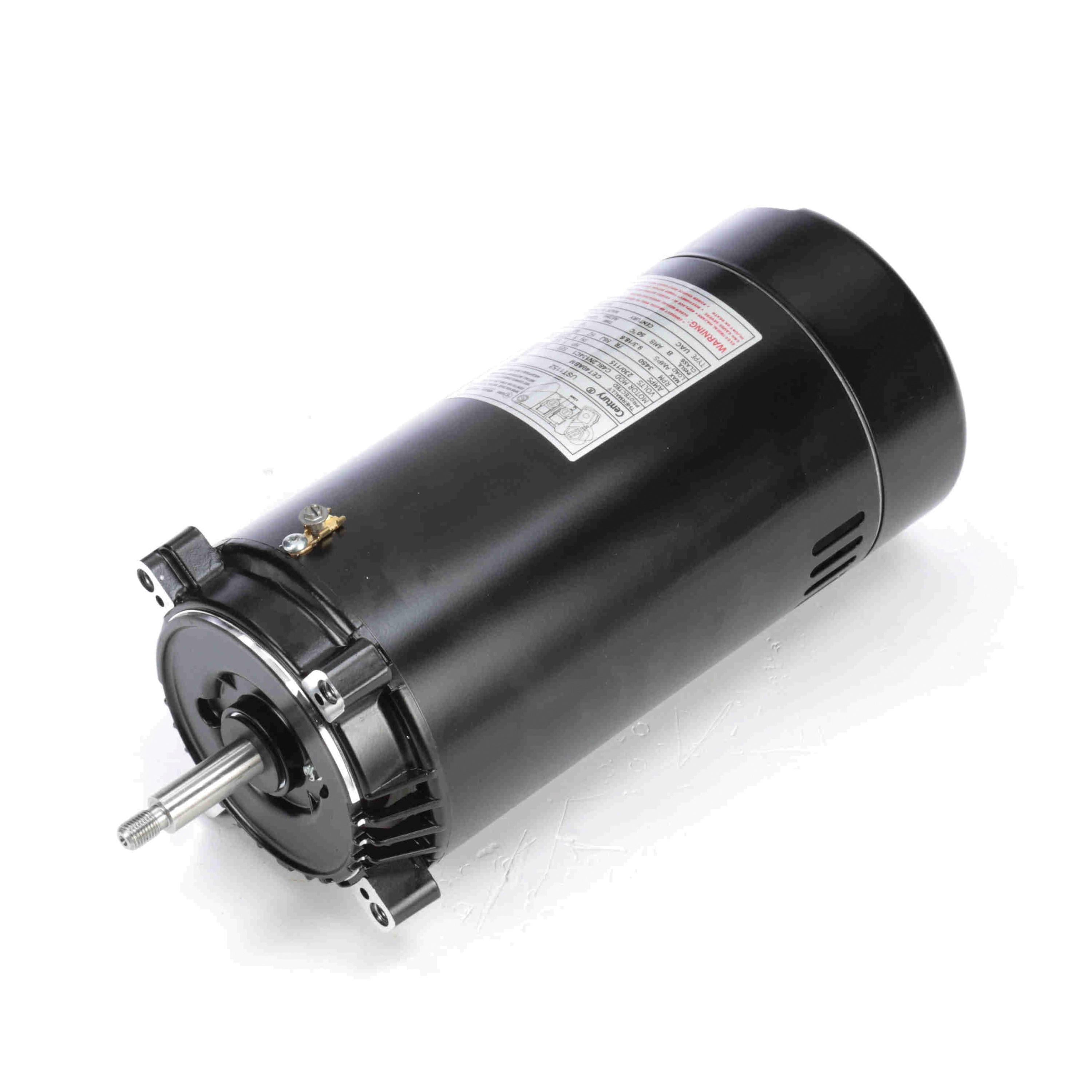

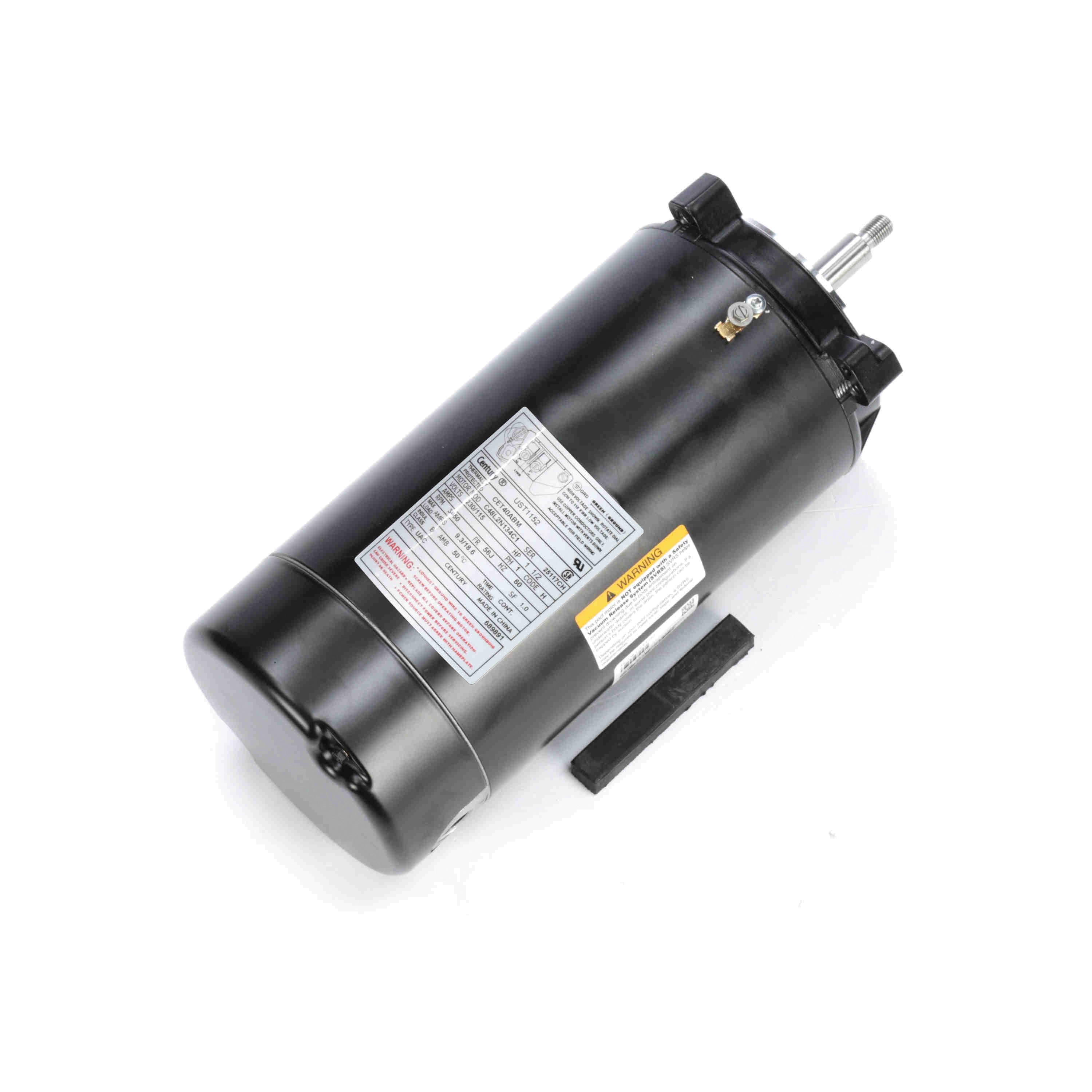

Century® UST1152 Pool Pump Motor, Continuous Duty, 230/115 V, 18.6 A, 1 ph -Phase, 1-1/2 hp, 3450 rpm Speed
- Manufacturer: Regal Rexnord Corporation
- Brand Name: Century®
- Part#: SO-58-AOS-UST1152
- MPN: UST1152
- UPC: 786674033345
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
Century® Pool Pump Motor, Continuous, 230/115 V, 18.6 A, 60 Hz, 1 ph Phase, 1.1 kW, 1-1/2 hp, 3450 rpm, 1 Speed, Counter Clockwise Rotation, 0.625 in Dia x 2.56 in L Shaft, Ball Bearing, Insulation Class: Class B, 1 Service Factor, Open Drip-Proof Motor Enclosure, 50 deg C, Round Mounting, Steel Housing, 14.7 in L
| Amperage Rating | : | 18.6 A |
| Bearing Type | : | Ball |
| Dimensions | : | 14.7 in L |
| Duty Type | : | Continuous |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1-1/2 hp |
| Housing Material | : | Steel |
| Insulation Class | : | Class B |
| Motor Enclosure Type | : | Open Drip-Proof |
| Mounting Type | : | Round |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 1.1 kW |
| Rotation Type | : | Counter Clockwise |
| SPECIAL_ORDER_ITEM | : | Y |
| Service Factor | : | 1 |
| Shaft Size | : | 0.625 in Dia x 2.56 in L |
| Special Order Item | : | Y |
| Speed Rating | : | 3450 rpm |
| Temperature Rating | : | 50 deg C |
| Voltage Rating | : | 230/115 V |
- Sealed switch design
- UL 1081 design
- 50 deg C ambient
- 304 bearing shaft end
- 303 stainless steel shaft
- Threaded shaft
- Capacitor start-capacitor run
