Rain Bird® B38300 76C-300PESB
  1. pin-int

Rain Bird® B38300 76C-300PESB

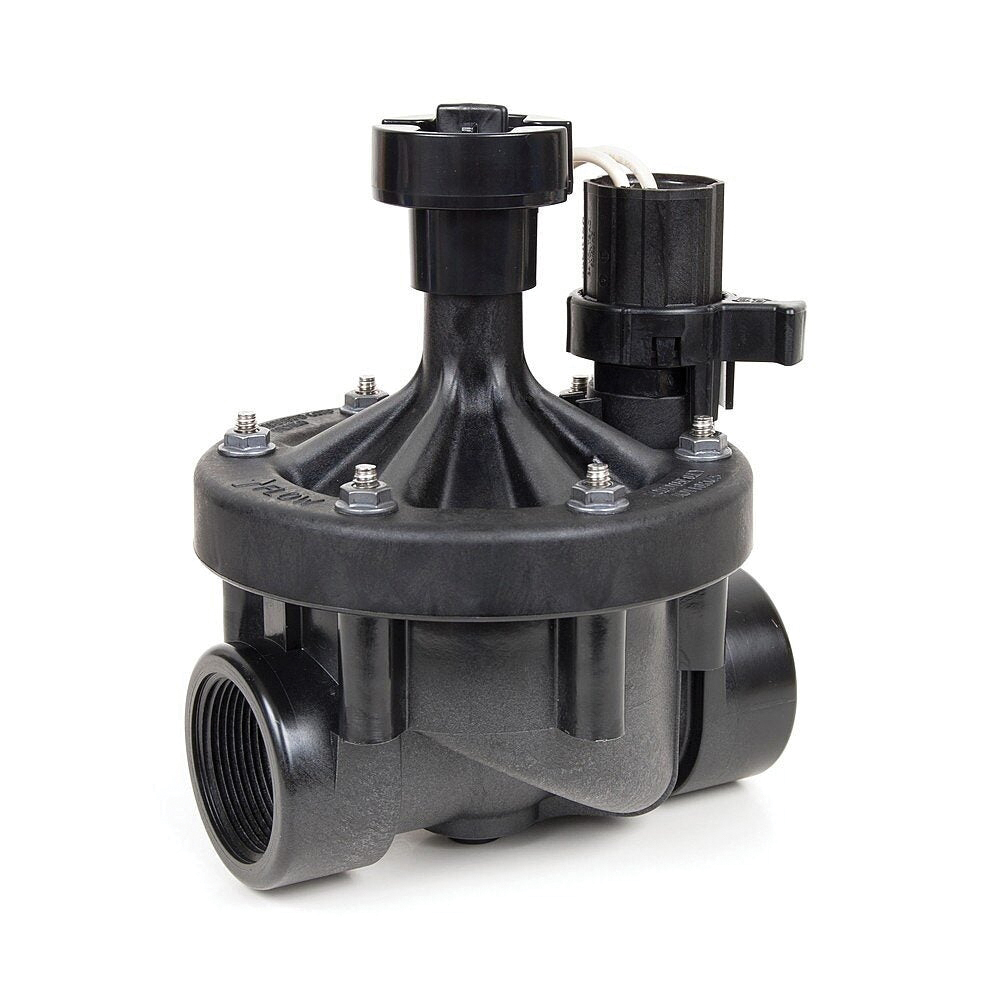

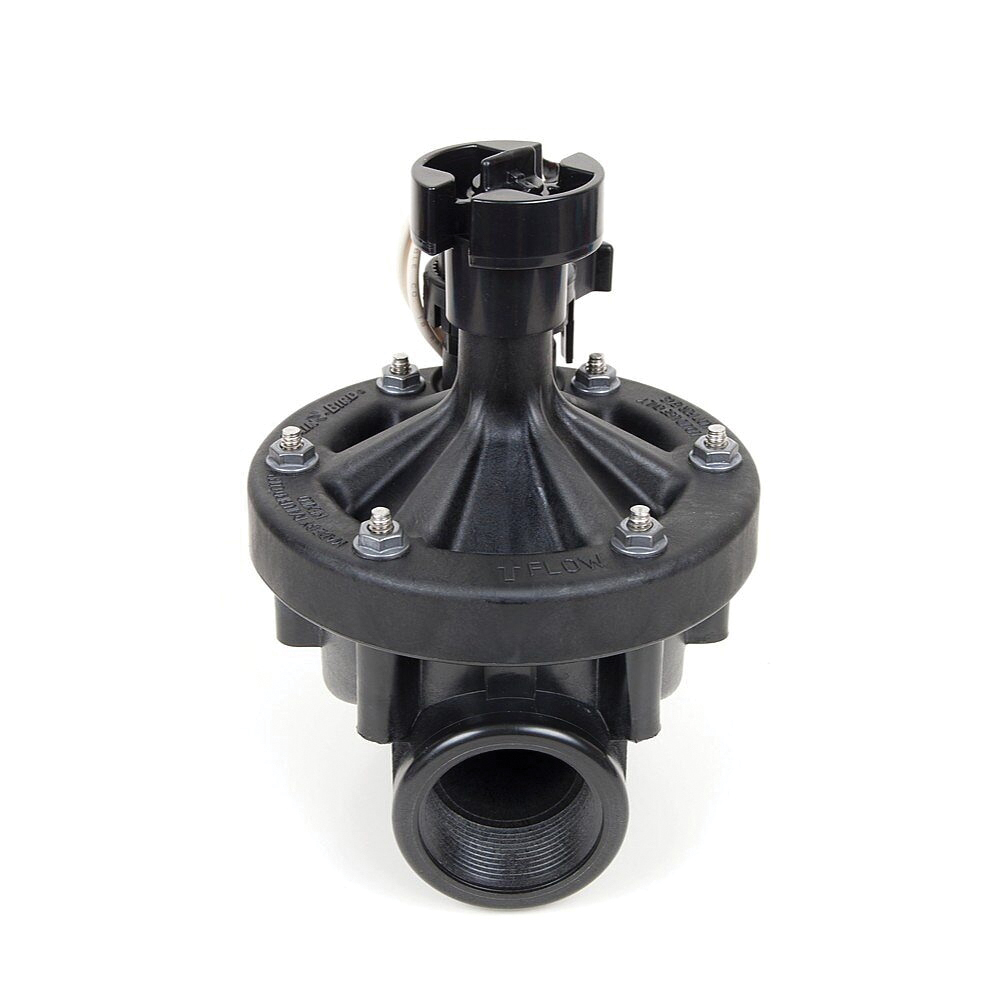

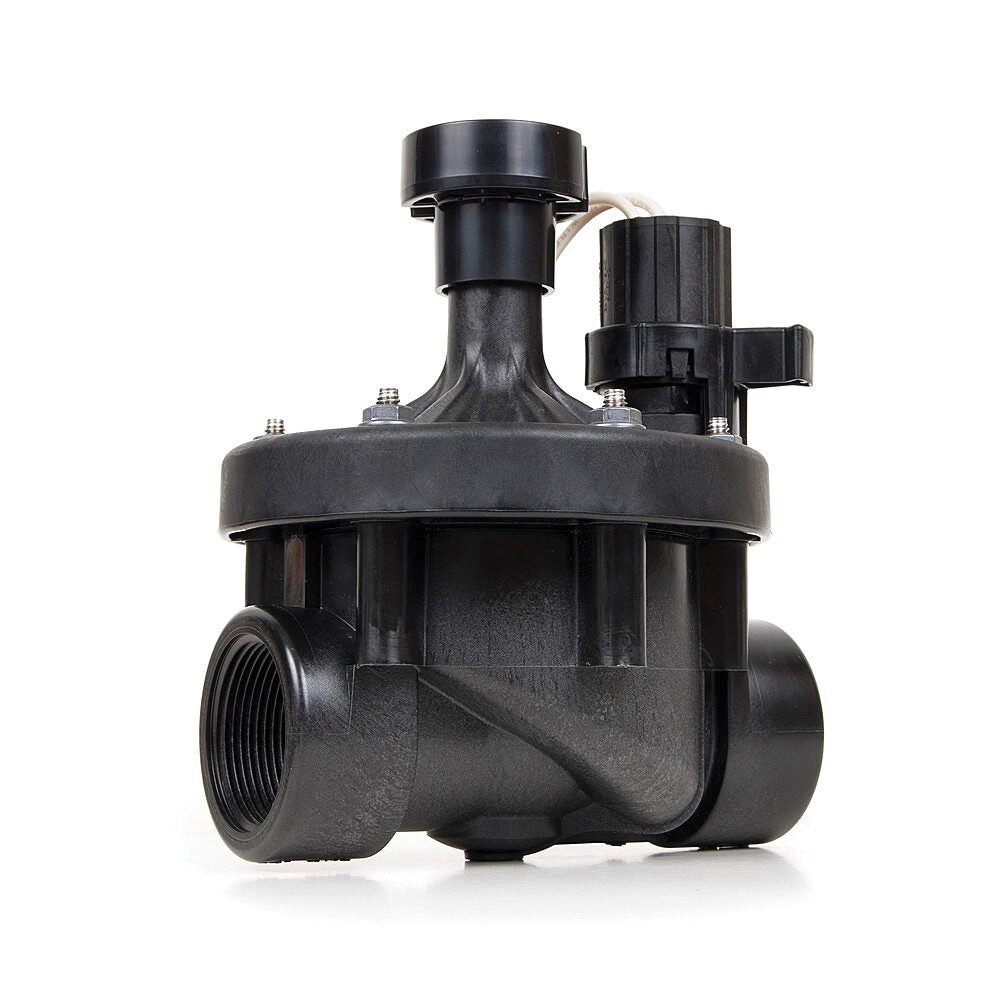

Rain Bird® PESB Series 300PESB B38300 Globe/Angle Scrubber Electric Valve, 3 in Nominal, NPT, 0.25 to 300 gpm, 150 deg F

  • Manufacturer: Rain Bird
  • Brand Name: Rain Bird®
  • Part#: 76C-300PESB
  • MPN: B38300
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Rain Bird® Globe/Angle Scrubber Electric Valve, PESB Series, Model: 300PESB, 3 in Nominal, NPT Connection, Normally Closed, 20 to 200 psi, 0.25 to 300 gpm Flow Rate, 24 V, 0.41 A Inrush, 0.14 A Holding, 50/60 Hz, Glass Filled Nylon Body, 150 deg F, 8 in L x 7 in W x 13-1/4 in H

Amperage Rating      :      0.41 A Inrush, 0.14 A Holding
Body Material      :      Glass Filled Nylon
Configuration      :      Normally Closed
Connection Type      :      NPT
Dimensions      :      8 in L x 7 in W x 13-1/4 in H
Flow Rate      :      0.25 to 300 gpm
Frequency Rating      :      50/60 Hz
Model      :      300PESB
Nominal Size      :      3 in
Pressure Rating      :      20 to 200 psi
Series      :      PESB Series
Special Order Item      :      N
Temperature Rating      :      150 deg F
Voltage Rating      :      24 V
  • The PESB Series incorporates innovative scrubber technology for reliable performance in dirty water irrigation applications
  • Durable glass filled nylon construction with fabric reinforced rubber diaphragm for long life and reliable performance
  • Normally closed, forward flow design
  • Slow closing to prevent water hammer and subsequent system damage
  • Low flow capability for a wide range of applications
  • 1-piece solenoid design with captured plunger and spring for easy servicing, prevents loss of parts during field service
  • Flow control handle adjusts water flows as needed
  • Manual internal bleed manually operates the valve without allowing water into the valve box, allows pressure regulator to be adjusted without turning the valve on at the controller first
  • Manual external bleed permits flushing debris from the system, Recommended for system start up and after repairs
  • Stainless steel studs molded into the body
  • Bonnet can be attached and removed more easily and more often without damaging threads
  • Nylon scrubber scrapes a stainless steel screen to clean and break down grit and plant material, prevents debris build-up and clogging (PESB Series only)
