Intermatic® T104M 73B-T104M

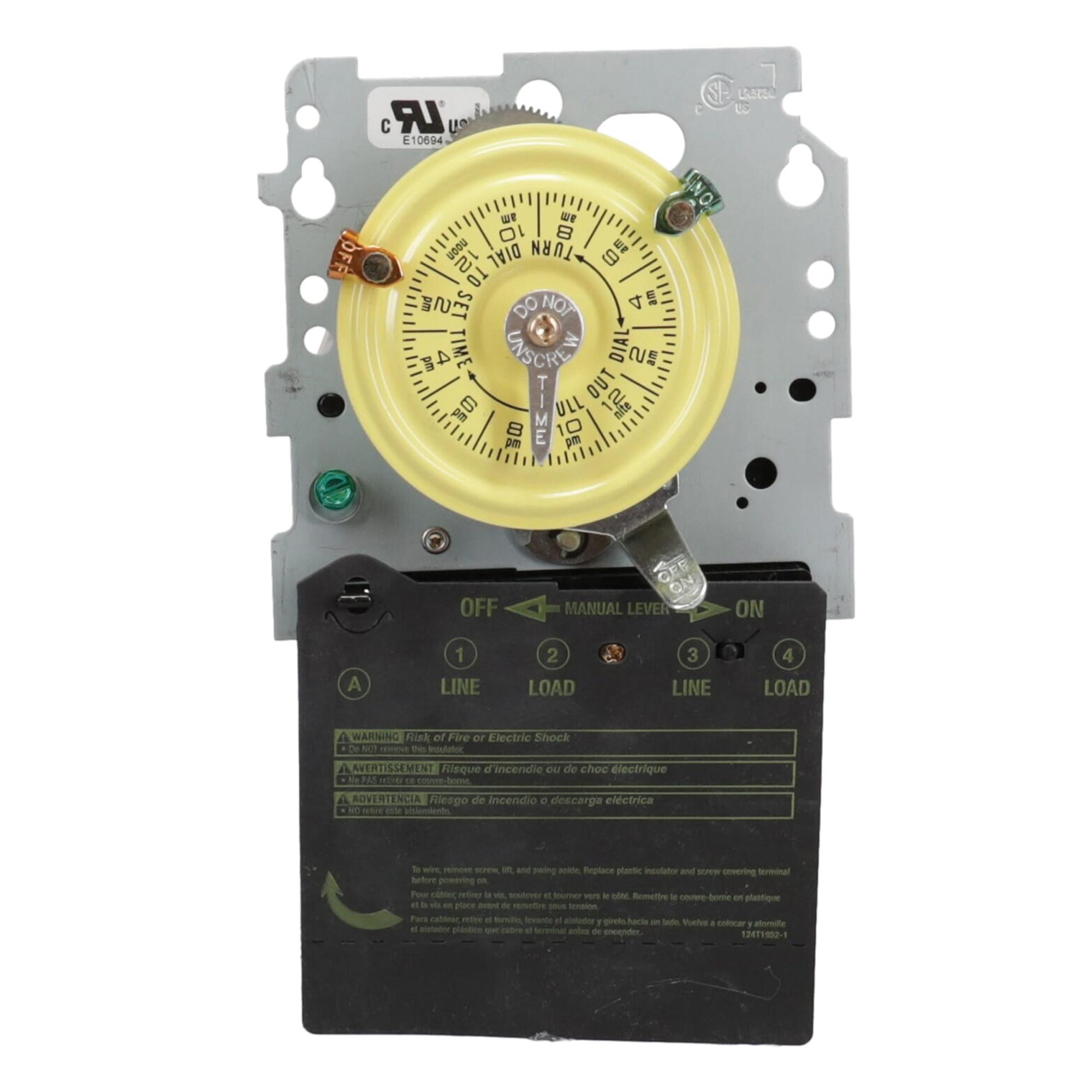

Intermatic® T104M Heavy-Duty Mechanical Time Switch, 208/277 VAC, 40 A, 60 Hz, 24 hr Timing, DPST
- Manufacturer: Intermatic
- Brand Name: Intermatic®
- Part#: 73B-T104M
- MPN: T104M
- UPC: 078275000261
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
Intermatic® Heavy-Duty Mechanical Time Switch, 208/277 VAC, 40 A, 60 Hz, 3 W, Contact Configuration: DPST, 1 hr Time Settings, 24 hr Timing, On/Off Ratio: 12 per day, 1000 VA at 120 to 277 VAC, 60 Hz Pilot Duty, Teeter Terminal Connection, 14 to 8 AWG Wire, Bracket Mounting, Teeter Terminal, -40 to 130 deg F, Additional Information: 1 Circuit
| Additional Information | : | 1 Circuit |
| Amperage Rating | : | 40 A |
| Connection Type | : | Teeter Terminal |
| Contact Configuration | : | DPST |
| Frequency Rating | : | 60 Hz |
| Mounting Type | : | Bracket |
| On/Off Ratio | : | 12 per day |
| Pilot Duty Rating | : | 1000 VA at 120 to 277 VAC, 60 Hz |
| Power Rating | : | 3 W |
| Special Order Item | : | N |
| Temperature Rating | : | -40 to 130 deg F |
| Terminal Type | : | Teeter |
| Time Settings | : | 1 hr |
| Timing Range | : | 24 hr |
| Voltage Rating | : | 208/277 VAC |
| Wire Size | : | 14 to 8 AWG |
- Highest motor load ratings in the industry
- 12 On/Off operations per day
- Teeter-type terminals for multiple load connections
- Can be installed in most Intermatic® enclosures
