Century® B625 SO-58A-B625

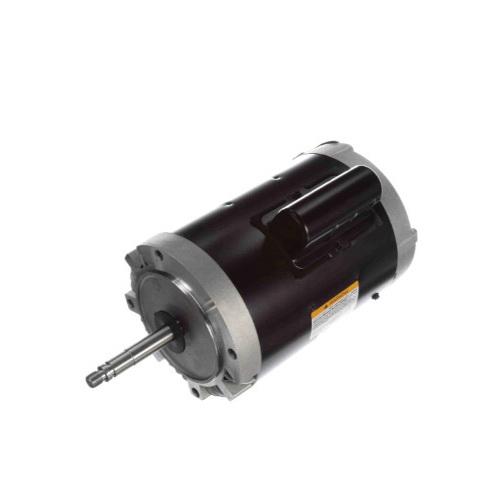

Century® B625 Pool Pump Motor, Continuous Duty, 230/115 V, 6.4/12.8 A, 1 ph, 3/4 hp, 3450 rpm Speed
- Manufacturer: Regal Rexnord Corporation
- Brand Name: Century®
- Part#: SO-58A-B625
- MPN: B625
- UPC: 786674012647
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
Century® Pool Pump Motor, Continuous, 230/115 V, 6.4/12.8 A, 60 Hz, 1 ph Phase, 0.56 kW, 3/4 hp, 3450 rpm, 1 Speed, CCW Rotation, 0.625 in Dia x 3.261 in L Shaft, Ball Bearing, Insulation Class: Class B, 1.5 Service Factor, Open Drip-Proof Motor Enclosure, 40 deg C, C-Face Mounting, Steel Housing, 14.13 in L, Additional Information: 2-Pole, 56CZ Frame, Capacitor Start, Horizontal-Mount, Induction Run, Single or Dual Voltage-Type, Thermally Protected
| Additional Information | : | 2-Pole, 56CZ Frame, Capacitor Start, Horizontal-Mount, Induction Run, Single or Dual Voltage-Type, Thermally Protected |
| Amperage Rating | : | 6.4/12.8 A |
| Bearing Type | : | Ball |
| Dimensions | : | 14.13 in L |
| Duty Type | : | Continuous |
| Frame Size | : | 56CZ |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 3/4 hp |
| Housing Material | : | Steel |
| Insulation Class | : | Class B |
| Motor Enclosure Type | : | Open Drip-Proof |
| Mounting Type | : | C-Face |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 0.56 kW |
| Rotation Type | : | CCW |
| SPECIAL_ORDER_ITEM | : | Y |
| Service Factor | : | 1.5 |
| Shaft Size | : | 0.625 in Dia x 3.261 in L |
| Special Order Item | : | Y |
| Speed Rating | : | 3450 rpm |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 230/115 V |
- Single shaft
- Automatic overload protection
Specification Sheet
