Rain Bird® F48571 76A-TBOS-BT1LT

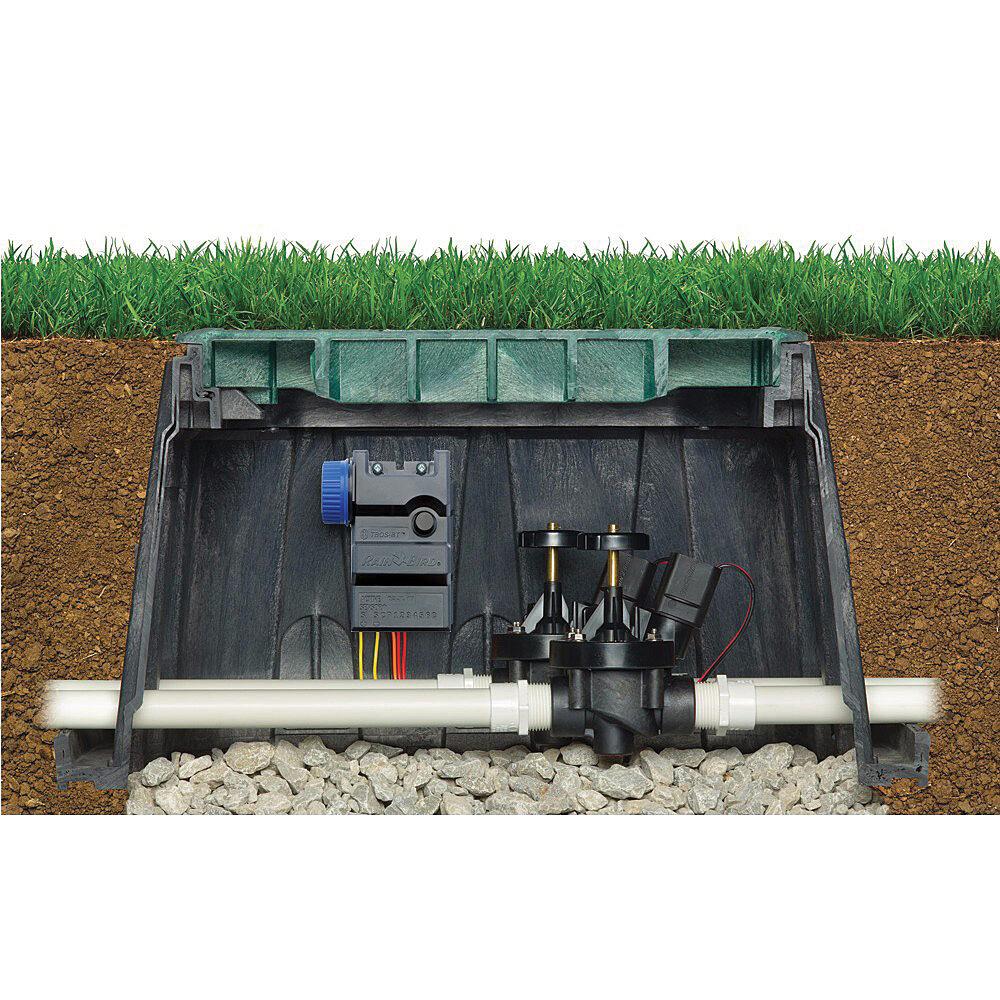

The TBOS-BT and TBOS-BT-LT 9 V battery controllers provide commercial level irrigation control that you can program with your smartphone via the-free Rain Bird® mobile app. Eliminate the need to access the valve box and install this controller in highway medians, roundabouts or anywhere you need irrigation control but do not have AC power.

Rain Bird® Battery Operated Bluetooth Controller With Infrared Port BLUE TOOTH

• Create, review and transmit irrigation programs
• Capability to set zones or programs to manually irrigate
• Basic programming includes three-independent programs A, B and C, each with eight-start times per day
• Stations can be assigned to several programs with different watering run times
• Run time is from 1 min to 12 hr in 1 min increments
• Five-watering day cycle modes (Custom, even, odd, odd-31, cyclical) selectable by program for maximum flexibility and watering
• Program and global monthly seasonal adjust, 0% to 300% (1% increments)
• Delay watering from 1 to 14-days
• Built-in ID with naming capability
• The control module and stations can be individually named
• Permanently turn the controller off to prevent irrigation
• Battery indicator reports the status of the control module battery
• Capability to clear the control modules irrigation program
• Operates for approximately one-full year using one-9 V alkaline battery
• Completely potted to obtain IP68 conformity
• Independent station operation allows sequential start times (with stacking in case of overlap) restriction compliance
• No loss of irrigation program after a battery replacement

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/RainBird_F48571_Catalog.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/RainBird_F48571_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/RainBird_F48571_Specification_Sheet.pdf
• Video Link https://youtu.be/fpef5Lq5cKI
