Rain Bird® X10341 76A-XCZ150LCDR
  1. pin-int

Rain Bird® X10341 76A-XCZ150LCDR

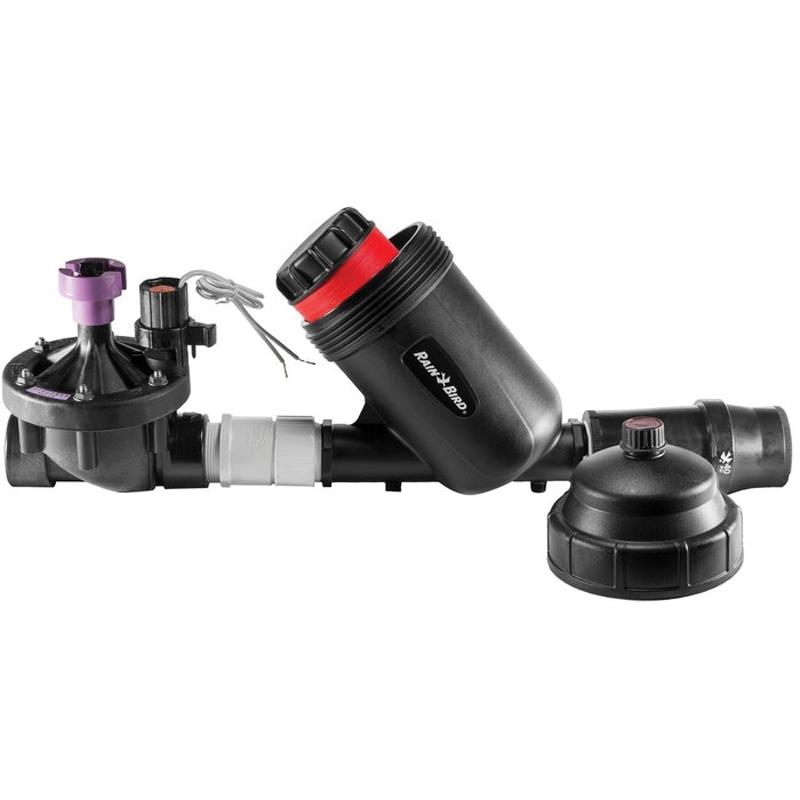

Rain Bird® X10341 In-Line Commercial Control Zone Kit, 15 to 62 gpm, 15 to 115 psi Inlet, Inline Valve

  • Manufacturer: Rain Bird
  • Brand Name: Rain Bird®
  • Part#: 76A-XCZ150LCDR
  • MPN: X10341
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

Rain Bird® In-Line Commercial Control Zone Kit, 15 to 62 gpm Flow Rate, 15 to 115 psi Inlet Pressure, 40 psi Pressure Regulation, Inline Valve, Disc Filter, 23-1/2 in Length, 5-3/4 in Width, 9-1/2 in Height, Additional Information: 24 VAC 50/60 Hz Power Solenoid, 2-Wire Compatible 120 MESH 40PSI REG KIT

Additional Information      :      24 VAC 50/60 Hz Power Solenoid, 2-Wire Compatible
Filter Type      :      Disc
Flow Rate      :      15 to 62 gpm
Height      :      9-1/2 in
Inlet Pressure      :      15 to 115 psi
Length      :      23-1/2 in
Pressure Regulation Range      :      40 psi
Special Order Item      :      N
Valve Type      :      Inline
Width      :      5-3/4 in
  • 1.5 in fully assembled inline commercial control zone kit
  • Engineered to handle reclaimed water systems
  • Low friction loss allows usage in zones with lower head pressure
  • High flow range allows for larger drip zone coverage with one control zone kit
  • Easy to clean and maintain
