FIMCO 4006 68A-156
  1. pin-int

FIMCO 4006 68A-156

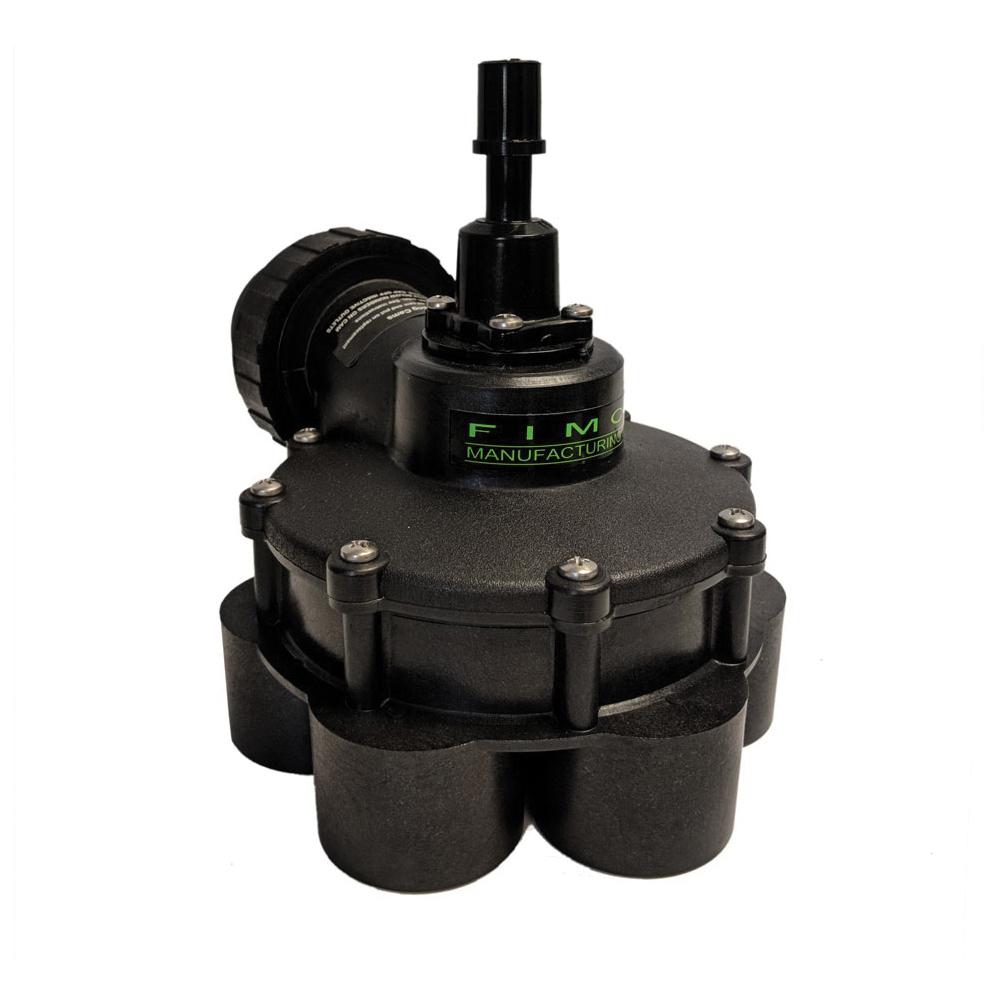

FIMCO 4000 Series 4006 Hydro Indexing Valve, 1-1/2 in Nominal, Slip Connection, 6 -Port/Way, 15 to 100 gpm, Plastic Body

  • Manufacturer: FIMCO Manufacturing Inc
  • Brand Name: FIMCO
  • Part#: 68A-156
  • MPN: 4006
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

The model #4006 hydro indexing valve has one-inlet and six-outlets which are all 1-1/2 in slip fit. This valve is recommended for use in a pump driven irrigation system and can run from two to six zones based on the chosen cam configuration.

FIMCO Hydro Indexing Valve, 1-1/2 in Nominal, Slip Connection, 10 psi, 15 to 100 gpm Flow Rate, Water Media, Number of Ports/Ways: 6, Plastic Body, TPE Disc, ABS Trim, 8 x 6 x 7-1/2 in, Domestic/Import: Domestic

Body Material      :      Plastic
Connection Type      :      Slip
Dimensions      :      8 x 6 x 7-1/2 in
Disc Material      :      TPE
Domestic/Import      :      Domestic
Flow Rate      :      15 to 100 gpm
Media      :      Water
Nominal Size      :      1-1/2 in
Number of Ports/Ways      :      6
Pressure Rating      :      10 psi
Series      :      4000 Series
Special Order Item      :      N
Trim Material      :      ABS
  • The standard flow stem and disc assembly requires a minimum of 10 gpm, the low flow stem and disc assembly requires a minimum of 6 gpm
  • The zone indicator can come pre-installed and is a very handy device
  • It is extremely useful when working on or troubleshooting an irrigation system
