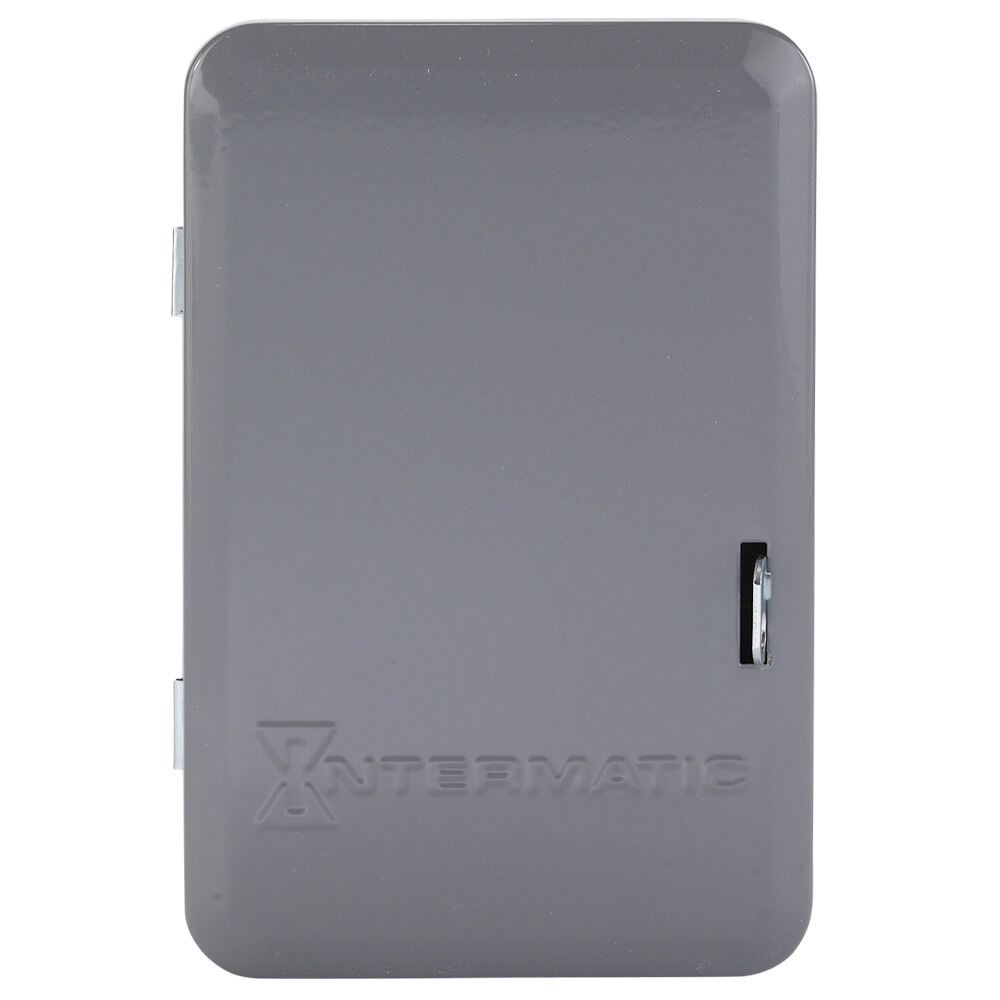

Intermatic® ET8015C SO-73A-ET8015C
Intermatic® ET8000 Series ET8015C Electronic Control, 120 to 277 VAC, 1 hp
- Manufacturer: Intermatic
- Brand Name: Intermatic®
- Part#: SO-73A-ET8015C
- MPN: ET8015C
- UPC: 078275089754
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Vero Beach
-
Available at All Branches
-
Price:
This Series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, up to 28 events total and automatic daylight saving time corrections without the need of user interaction. They come in standard 24 hr, 7-day and 7-day astronomic versions.
Intermatic® Electronic Control, 120 to 277 VAC, 50/60 Hz, 6 W, 1 hp, 7 days Timing, 14 to 8 AWG Wire, AAA Battery, NEMA 1 Enclosure, -40 to 104 deg F, Metal Enclosure, Metal, Gray, 7-7/8 in Height, 5-1/8 in Width, 3-7/16 in Depth, Additional Information: 1 Circuit, SPST Switch Type
| Additional Information | : | 1 Circuit, SPST Switch Type |
| Battery Type | : | AAA |
| Color | : | Gray |
| Depth | : | 3-7/16 in |
| Enclosure Material | : | Metal |
| Enclosure Type | : | NEMA 1 |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 1 hp |
| Height | : | 7-7/8 in |
| Material | : | Metal |
| Power Rating | : | 6 W |
| SPECIAL_ORDER_ITEM | : | Y |
| Series | : | ET8000 Series |
| Special Order Item | : | Y |
| Temperature Rating | : | -40 to 104 deg F |
| Timing Range | : | 7 days |
| Voltage Rating | : | 120 to 277 VAC |
| Width | : | 5-1/8 in |
| Wire Size | : | 14 to 8 AWG |
- Selector switch to determine input voltage between 120 to 277 VAC
- Up to 28 events total
- To the minute accuracy
- Temporary override or permanent manual override
- Automatic daylight saving time adjustment
- Astronomic models enable dusk-to-dawn scheduling
