Rain Bird® 3500-S-PC-SAM-NP SO-76A-3500SPCSAMNP
  1. pin-int

Rain Bird® 3500-S-PC-SAM-NP SO-76A-3500SPCSAMNP

Rain Bird® 3500 Series 3500-S-PC-SAM-NP Shrub-Style Sprinkler Rotor With Non-Potable Cover, FNPT

  • Manufacturer: Rain Bird
  • Brand Name: Rain Bird®
  • Part#: SO-76A-3500SPCSAMNP
  • MPN: 3500-S-PC-SAM-NP
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Vero Beach
  • loading Available at All Branches

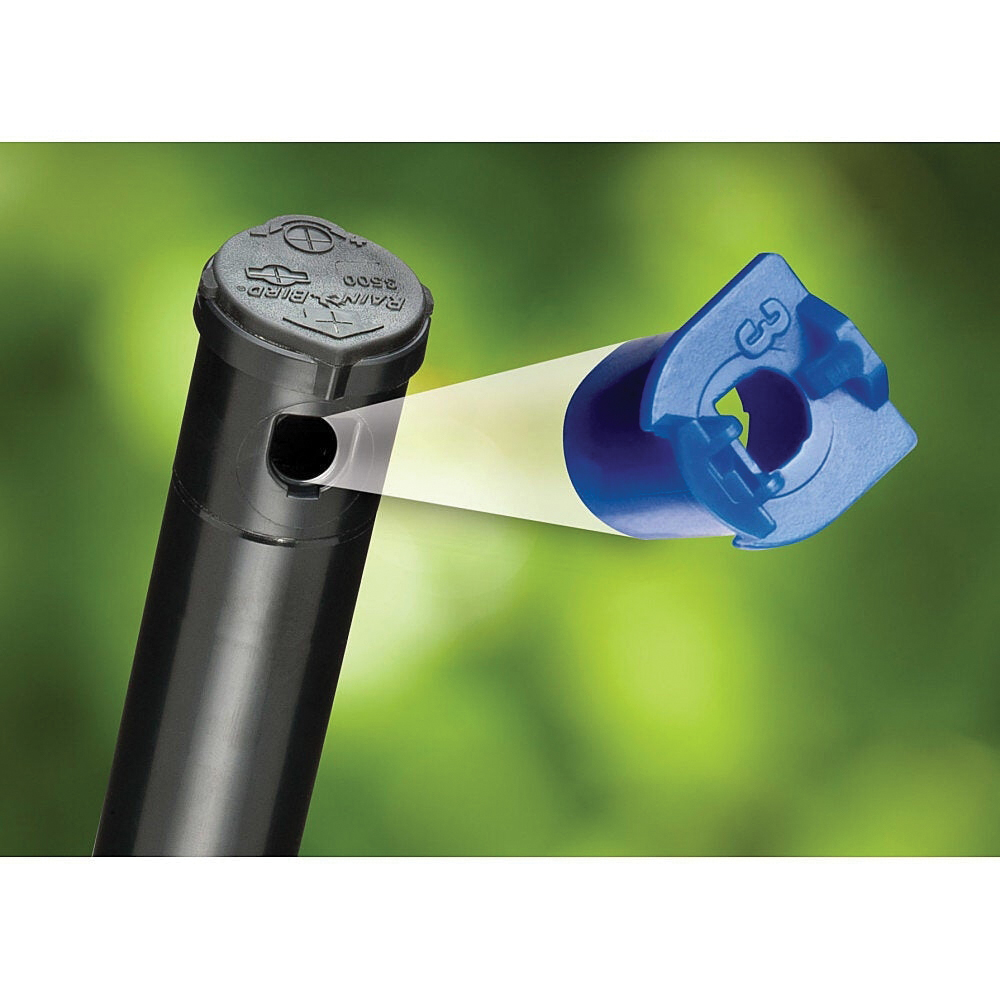

The 3500 Series rotor is an easy-to-use short to mid range 1/2 in gear drive rotor, offering value and convenience for residential applications. Utilizing a simple flat bladed screwdriver, the 3500's arc adjustment is quick and easy. This versatile rotor offers an attachable nozzle tree with six superior performing Rain Curtain™ nozzles and the convenience of reversing full and part circle operation (up to 360 deg) in one unit. Plus a nozzle removal feature and an easily removable filter screen make maintenance a breeze.

Rain Bird® Shrub-Style Sprinkler Rotor With Non-Potable Cover, 3500 Series, 15 to 35 ft Operating, Part-Circle Spray Pattern, 25 deg Trajectory Angle, 25 to 55 psi, 0.54 to 4.6 gpm Flow Rate, Precipitation Rate: 0.37 to 0.83 in/hr, 4 in Pop-Up Height, 1/2 in Connection, FNPT Connection, 7 in Overall Height, Residential, Additional Information: 1.16 in Exposed Surface Diameter NON-POTABLE W/CHECK

Additional Information      :      1.16 in Exposed Surface Diameter
Commercial/Residential      :      Residential
Connection Size      :      1/2 in
Connection Type      :      FNPT
Flow Rate      :      0.54 to 4.6 gpm
Operating Range      :      15 to 35 ft
Overall Height      :      7 in
Pop-Up Height      :      4 in
Precipitation Rate      :      0.37 to 0.83 in/hr
Pressure Rating      :      25 to 55 psi
SPECIAL_ORDER_ITEM      :      Y
Series      :      3500 Series
Special Order Item      :      Y
Spray Pattern      :      Part-Circle
Trajectory Angle      :      25 deg
  • Rain Curtain™ nozzles deliver even distribution over the entire radius including large wind-resistant droplets and gentle close in watering resulting in greener turf using less water
  • Oversized wiper seal prevents leaks and protects internals from debris
  • Arc adjustment through the top of the rotor requiring only a flat blade screwdriver
  • Radius may be reduced up to 25% with radius reduction screw
